need a lock assembly

Professional

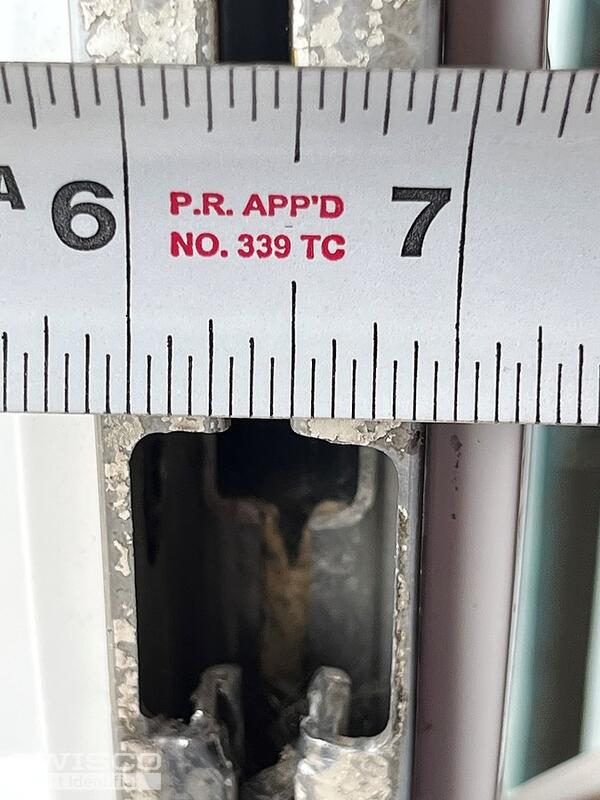

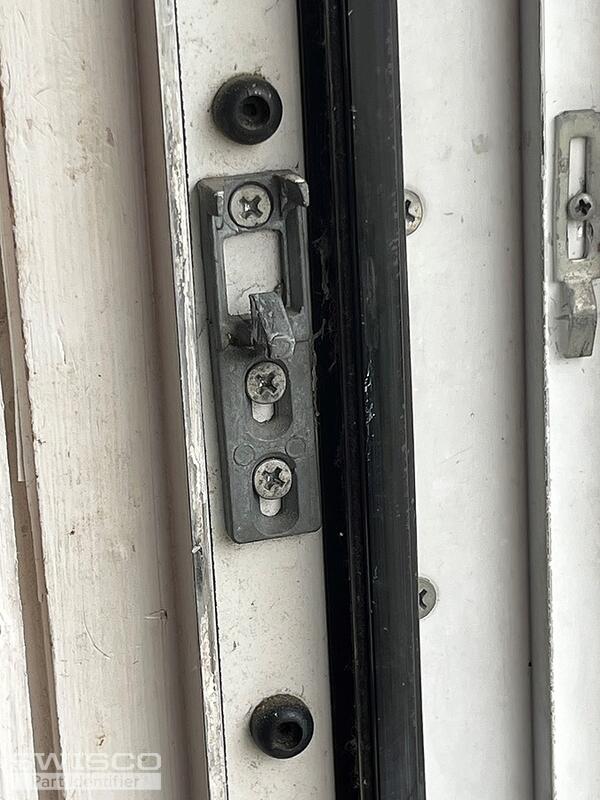

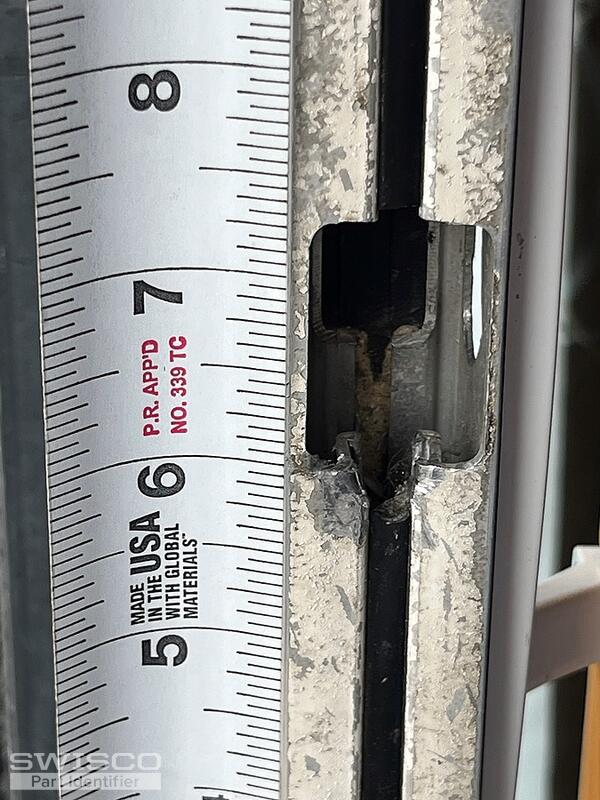

part number 89-027 patio door jamb strike. i have a customer missing the lock on the door. he has the 89-027 strike on the jamb. the hole that the lock protrudes from is 13/16" x 1 1/4" (pics attached) can you tell me what possible locks may be a good candidate?

 door is from 1994

3 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

The 89-027 keeper is frequently used with the 82-003 handle set with 3-15/16" installation holes. The 82-055 with 3-1/2" hole spacing is another possibility but is less common. You'll need to confirm the distance between the installation holes in your door to confirm if wither option would work for your repair. Thank you!
