need channel balance recommendation

Quick Learner from California

May 15, 2025 5:07 pm

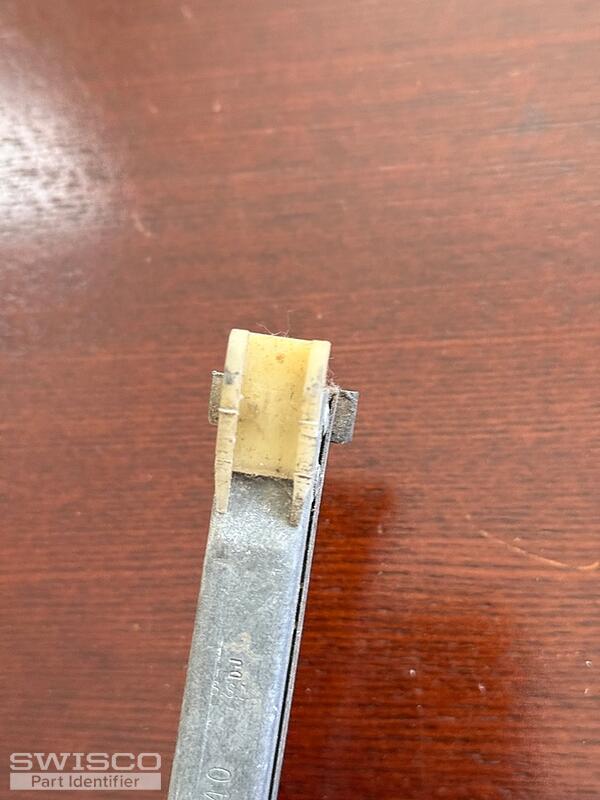

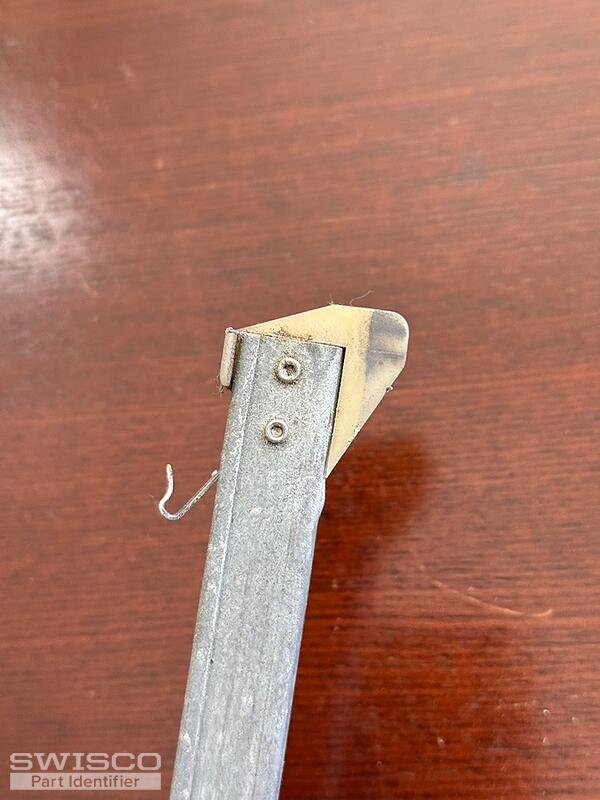

there are no markings on the original balances. The dimensions are 3/4" wide, 28" length. wings on tops and bottom measure in at 1"

5 user uploaded images

4 Replies

Emily from SWISCO

May 19, 2025 11:58 am

Hi there!

Thanks for reaching out to us. Since the bottom shoe is 1" deep, see the S380-28. Please note that the metal channel is 1/2" wide.

Can you weigh the window sash on a scale and tell us the precise weight? That will help us determine the proper stamp option.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from California

Jun 19, 2025 12:47 pm

If the window weighs 21lbs would that mean I need the Series 380 2740?

Emily from SWISCO

Jun 20, 2025 8:22 am

That's correct. A pair of balances with the 2740 stamp will support a sash weighing 19 to 26 pounds.
