need coil for ideal window

A handy person from lynn, mass ( boston ) says:
October 19, 2020

Hello I need a coil for an ideal window. Mine snapped after about 11 years.

The Balance shoe says (4R ). THE COIL SAYS 4AE

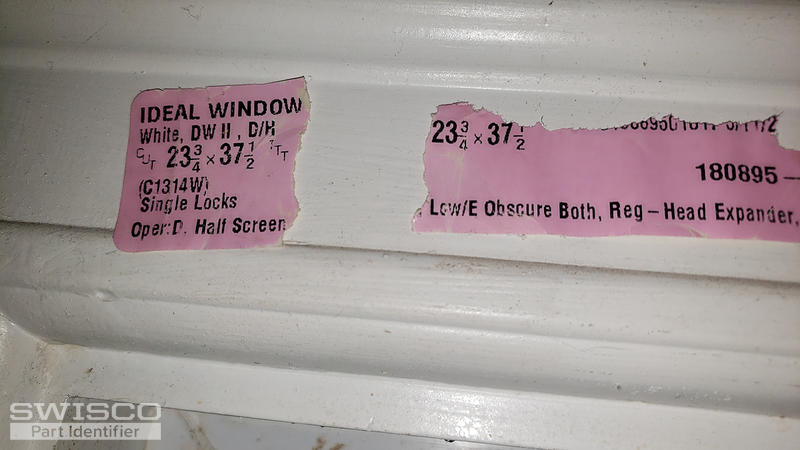

Please see attached pictures for more details of the model number.

I see that most of your coils only have one ( hole ) mine has two holes as you can see. but I think the one whole version might work if it's the right length.

For now what I actually did was take the half that was broken took it out of the shoe. Then I inserted what was left the other half with the two holes on the coil ( I just put that half back in the shoe )

Then I just brought the metal secure piece down about 6 in so the window would reach to the bottom.

It's working for now but I need to get replacements for both sides just in case I'm sure the other one is about to break too.

Thank you so much

Thumbnail of the uploaded file named 20201019_201820.jpg
Thumbnail of the uploaded file named 20201019_193337.jpg
Thumbnail of the uploaded file named 20201019_193250.jpg
Thumbnail of the uploaded file named 20201019_192040.jpg
Profile picture of Bob
Bob from SWISCO responded:
October 22, 2020

Thanks for posting. This looks like a 15-087 Shoe to me, and therefore you'll need the S180-4 4 lb spring. Now, your shoe's cam looks a little different. To be safe, show us the pivot bar that works with this shoe so we know yours is compatible. Many thanks.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
4 lbs Series 180 Coil Balance
4 lbs Series 180 Coil Balance
S180-04
$4.20
