need door handle assembly

A quick learner says:
August 26, 2022

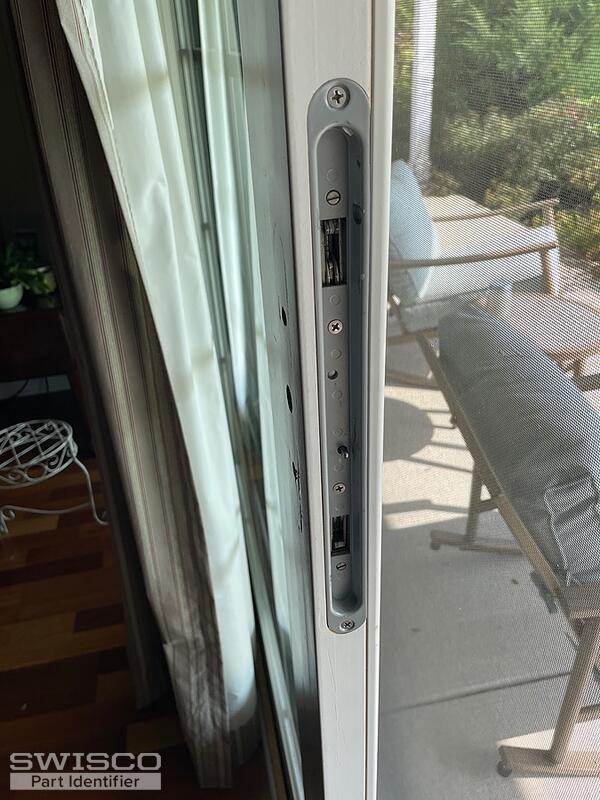

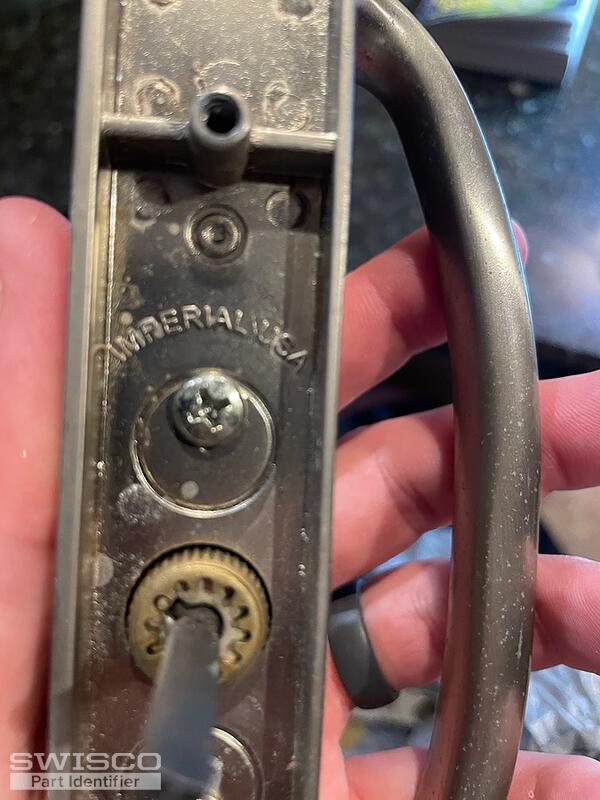

says it is an imperial USA door handle and it keeps bringing me to your site. The locking mechanism is fine just need the handle assembly. Thank you
Thumbnail of the uploaded file named D2702D35-EEA9-4E85-8F6B-059DB624FC49.jpeg
Thumbnail of the uploaded file named 7D707998-8409-4BF9-8211-647260BD6CBA.jpeg
Thumbnail of the uploaded file named D46BE60D-8075-45DC-B762-167C1B474C75.jpeg
Thumbnail of the uploaded file named D08562AC-C797-4D10-BED8-D393657804FE.jpeg
Thumbnail of the uploaded file named C1770E72-A5FC-47AE-B0C7-EC1C02FB793E.jpeg
Profile picture of Casey
Casey from SWISCO responded:
August 29, 2022

Hello,

We'd be happy to help but we would like to see photos of the inside handle, as well as confirm the distance between the center of the installation holes, to narrow down your replacement options. Thank you!
A handy person from Illinois says:
September 27, 2022
Hello,

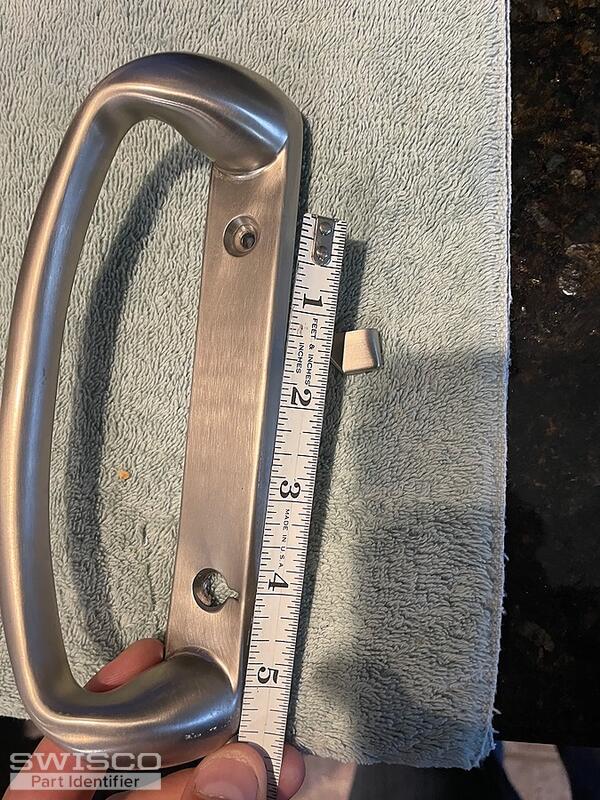

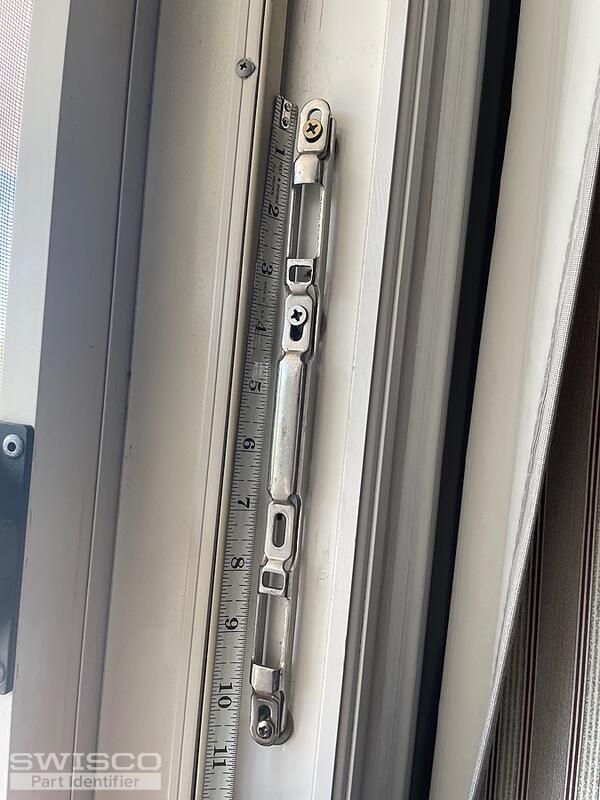

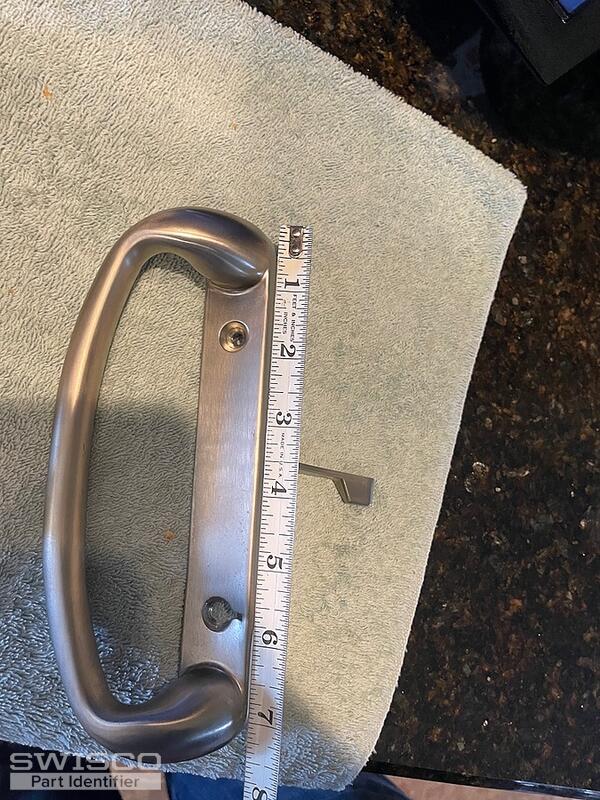

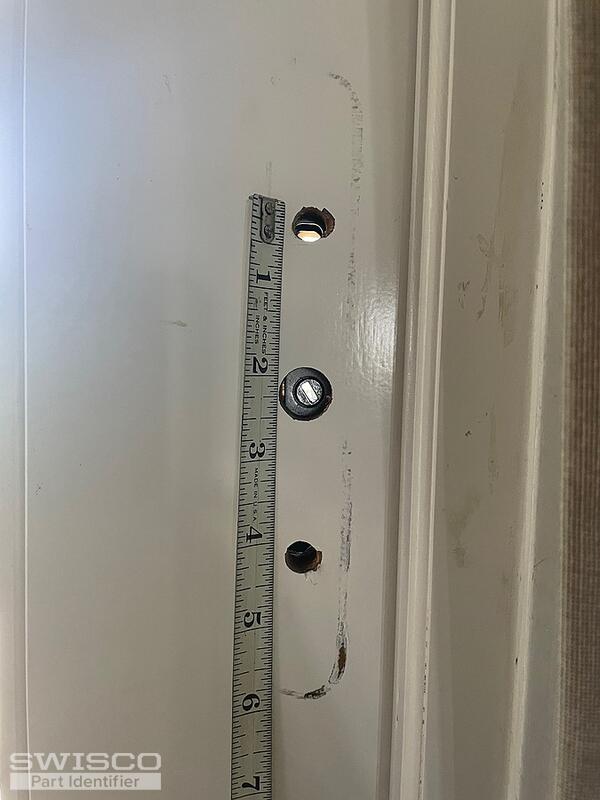

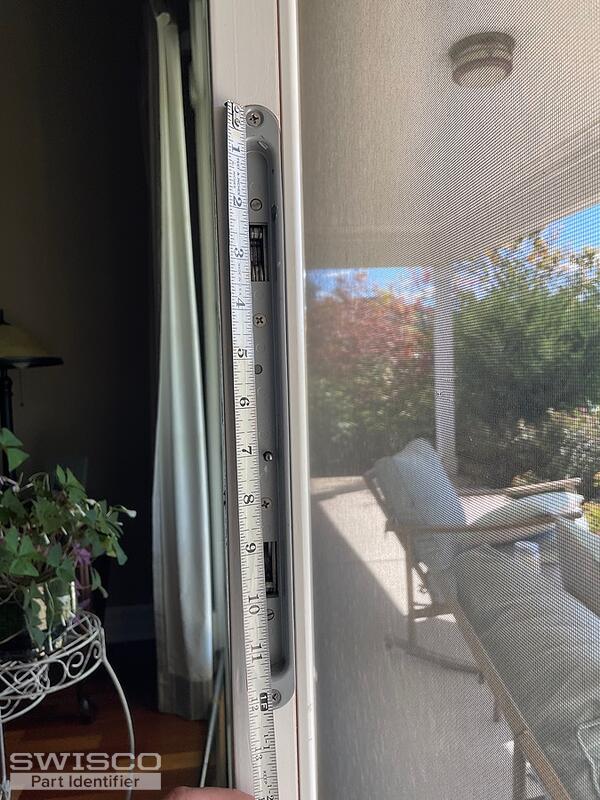

Here are some additional photos of the inside handle and hole spacing. Thank You!
Thumbnail of the uploaded file named 91BEC09D-CA07-45FE-8A28-23D781F4919B.jpeg
Thumbnail of the uploaded file named 46CECDBD-C13A-47F6-BA41-4FEAB7F41CF2.jpeg
Thumbnail of the uploaded file named 6A9F8965-04D6-4E25-AC1B-7B3DC36C94D5.jpeg
Thumbnail of the uploaded file named 3FAC9C47-B221-49C2-AEA5-525C6D44C124.jpeg
Thumbnail of the uploaded file named 85975019-998C-40CA-AA23-5FF5BFD0CE98.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 28, 2022

Thanks for getting back to us. It looks like your best replacement option would be the 82-030 handle set with 3-15/416" hole spacing. It does not come with an external key lock but it is compatible with the 82-310 that is sold separately. Take a look and see how the specifications compare to yours. Thank you!
