Quick Learner

Aug 7, 2023 2:18 pm

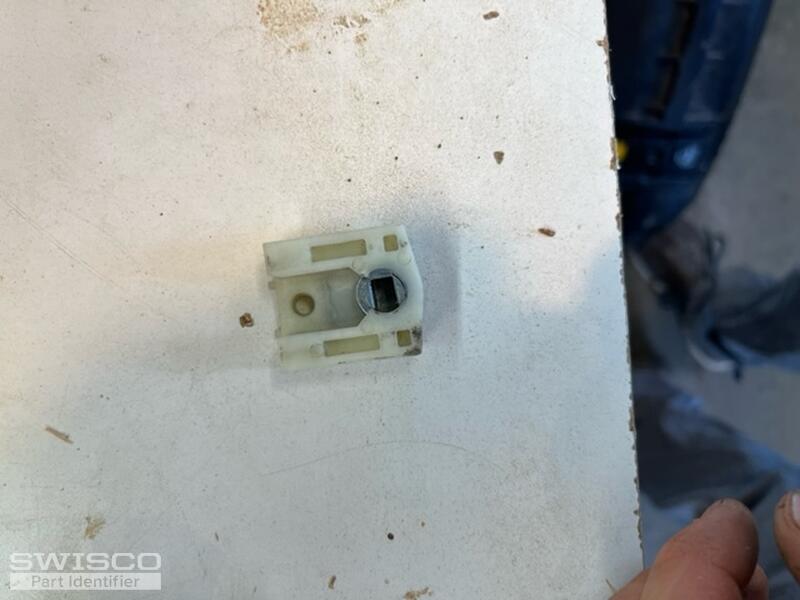

I need two new coil springs to match the ones pictured. Can you recommended the part needed for me?

4 user uploaded images

4 Replies

Emily from SWISCO

Aug 8, 2023 2:55 pm

Hello!

Thank you for reaching out to us. Our 15-228 pivot shoe is my recommendation. This is used with either the Series 160 1/2" wide springs, or the Series 165 3/8" wide springs depending on the width of your old ones. Take a look and let us know if you have any questions.

Quick Learner from Sioux City, IA

Aug 9, 2023 6:55 am

I actually need new coil springs. The shoes seem to be working fine. Which coil springs would you recommend?

Emily from SWISCO

Aug 9, 2023 7:49 am

I recommend either the Series 160 or Series 165 coil springs. You'll just have to measure the width of the band on one of the old springs to confirm which Series is best. Then to determine the coil spring weights, you will divide the sash weight by the total number of springs in the window.
