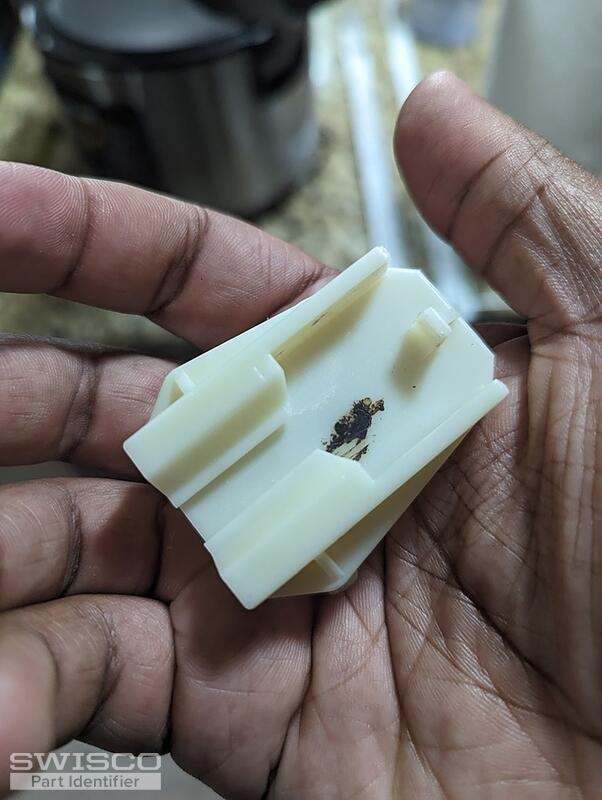

I'm writing for recommendations of a replacement drawer slide. The original is a G.Grass that was installed with the house 25 years ago and seems to no longer exist.

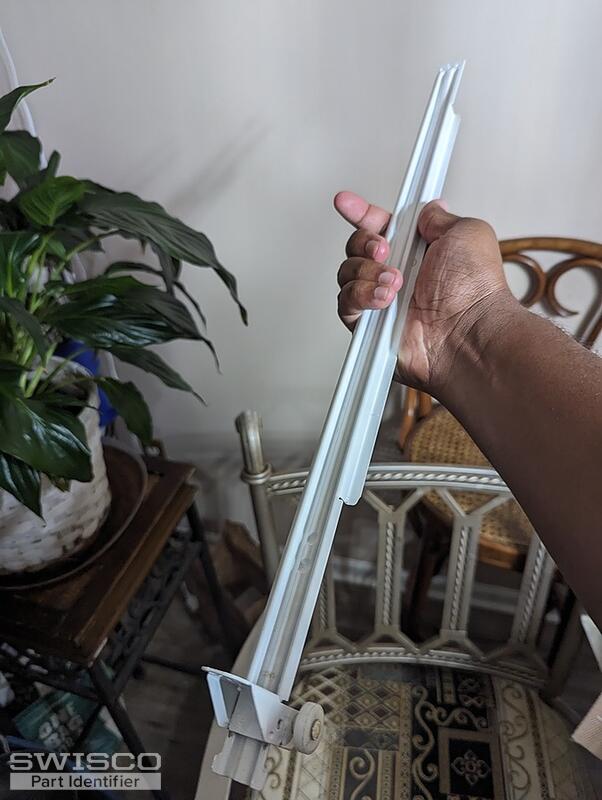

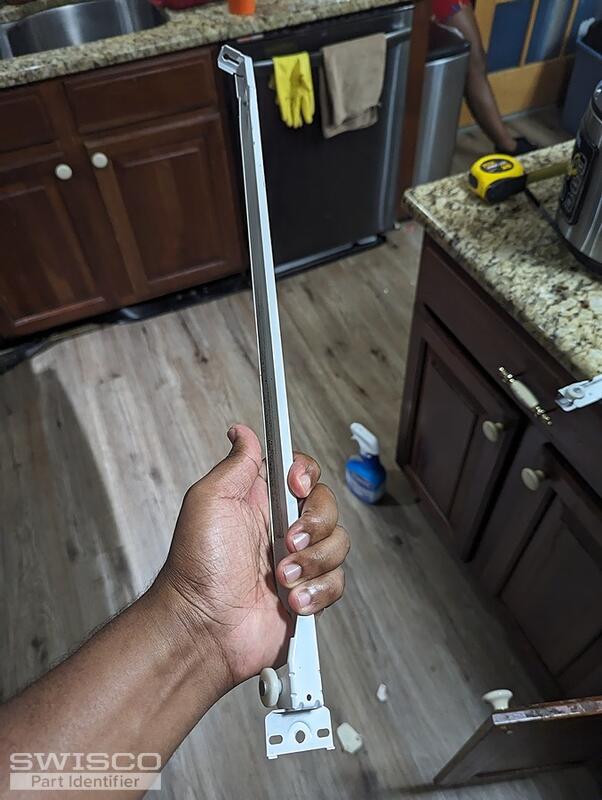

The original track length is 22" the drawer length is 21 1/16"
Drawer height is 4", drawer opening is 4.5" tall
Drawer width is 26 1/4", and opening is 26 3/4" wide

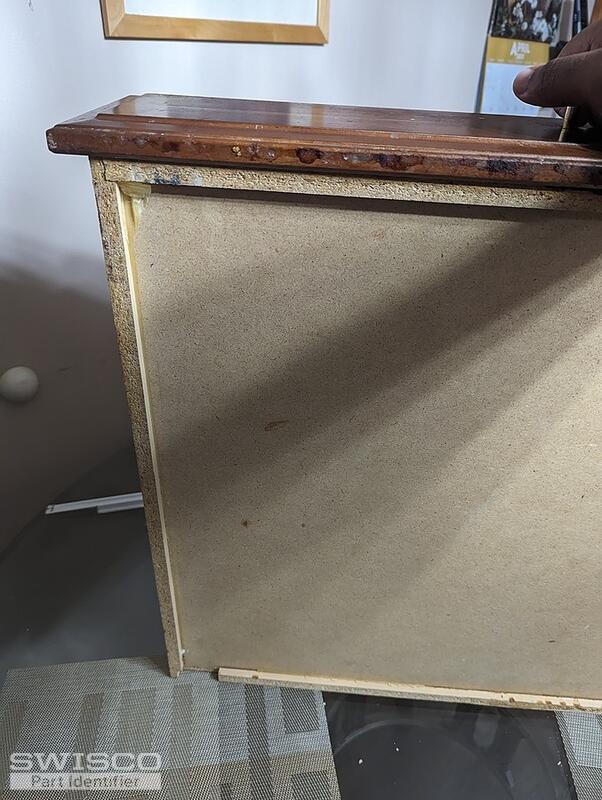

The track was undermount as you can see the drawer itself accounts for 1/2" notches.
Please review and let me know what's the best replacement or if you need more information
need help
Quick Learner
Aug 11, 2023 1:08 pm
4 user uploaded images
2 Replies
Jasmine from SWISCO
Aug 11, 2023 4:21 pm
Thanks for writing in! I'm sorry to say that we do not carry a replacement for the type of drawer guide you are searching for. However, our 21-5/8" 32-061 should work as a replacement for you. You'll also need to install the 32-119 Grass Adapter Bracket Pair. Keep in mind, you may need to drill new installation holes to install these pieces of hardware.
Take a look over the dimensions below and see what you think.
Side view of 32-119
Detail of 32-119
