need help

Quick Learner
Sep 22, 2023 1:29 pm

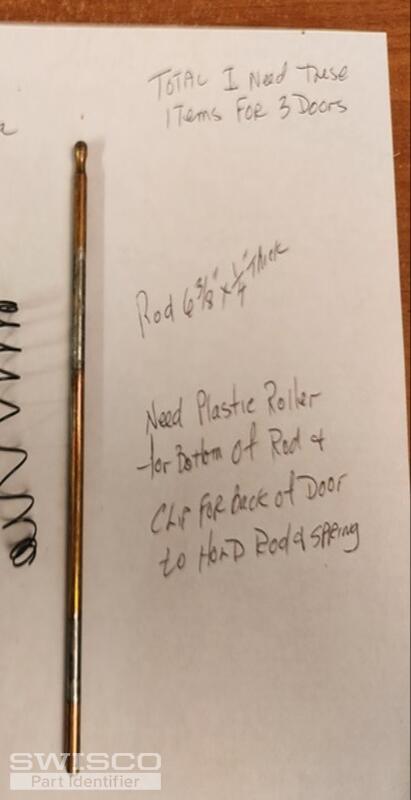

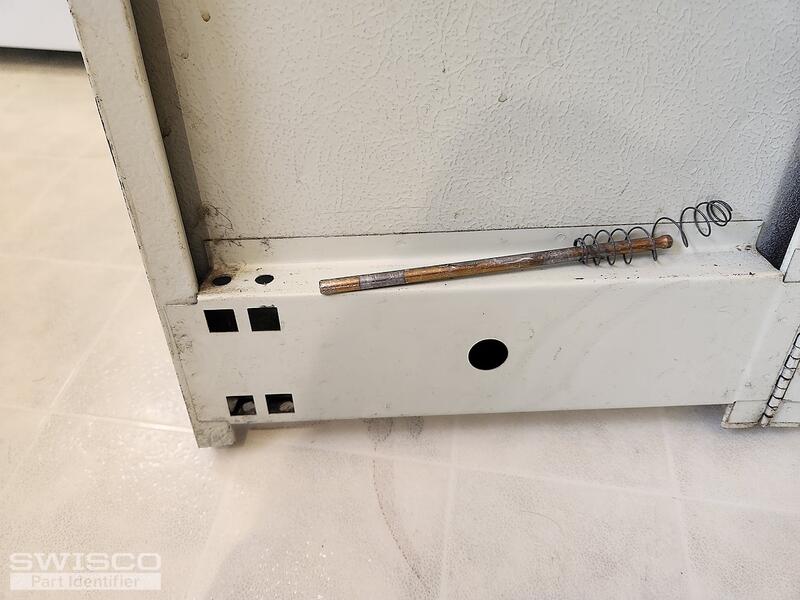

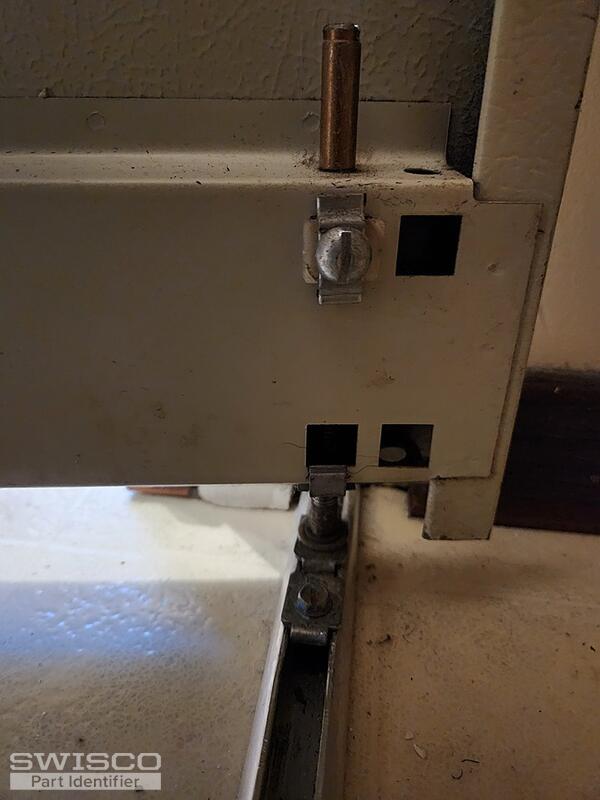

need help identifying this part
20230921_102419 20230921_185415 20230921_185211 20230922_095507
4 user uploaded images
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Sep 26, 2023 9:43 am
SWISCO
EXPERT

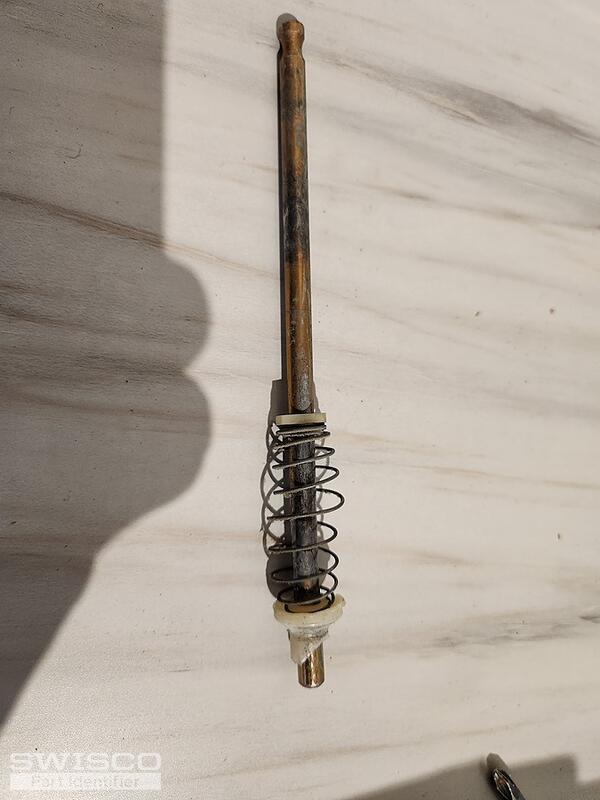

Thanks for reaching out to us. It appears you have Slimfold doors. Take a look at the parts and media guides we've related for you on this page. The first photo is a broken spring-loaded guide pin such as the 21-007. You will need three of these for the doors and one 21-001 bottom threaded pivot pin.

+ Add a Comment
Products and resources found in this discussion
Bi-fold Door Pivot Assembly
Bi-fold Door Pivot Assembly
21-001
$6.95
Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.87
Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.46
Pivot bracket
Pivot bracket
21-200
$2.12
Bifold Track Bumper
Bifold Track Bumper
21-277
$2.07
Bi-fold Door Repairs
Bi-fold Door Repairs
VIDEO
READ >
How to Install Bi-Fold Closet Door Pins
How to Install Bi-Fold Closet Door Pins
VIDEO
WATCH >
