need help with EntryGard operator

Quick Learner

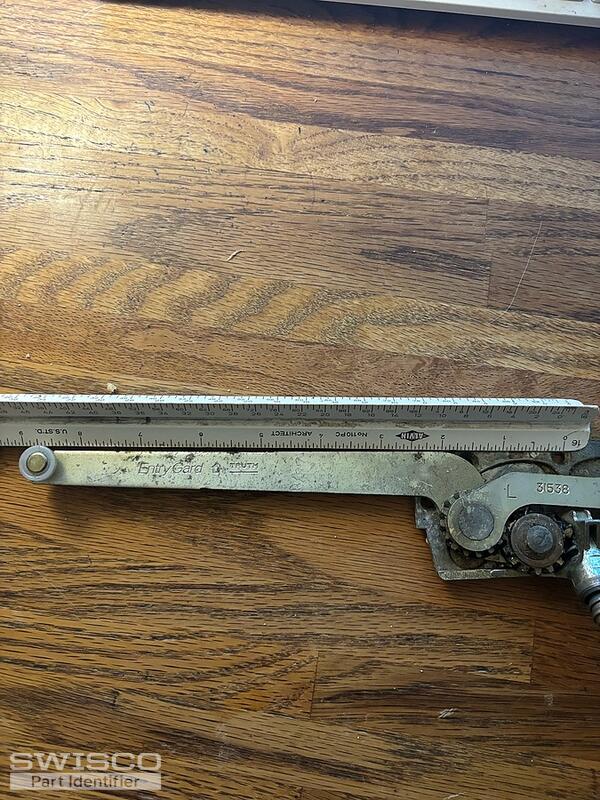

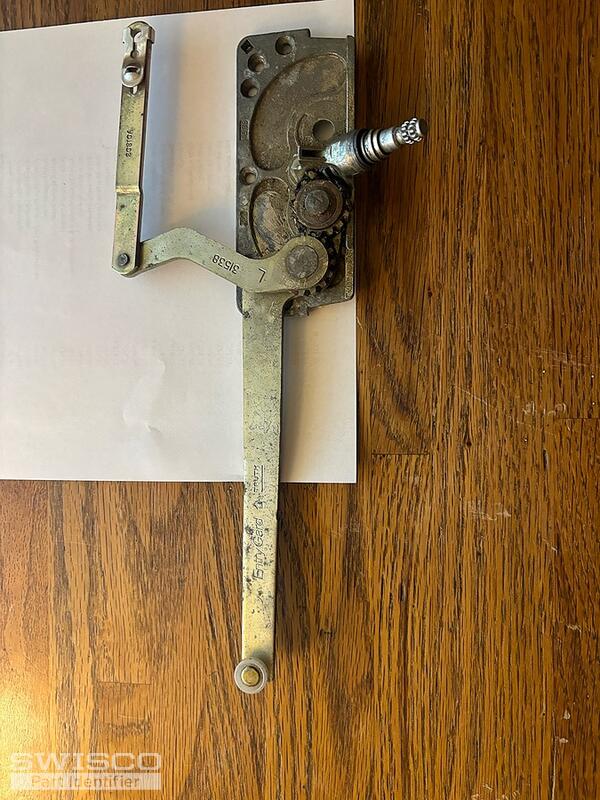

arm length is 8-1/2 long
2 user uploaded images
4 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello,

Unforutnately, we weren't able to locate an Entryguard operator with the same 8-1/2" long arm you show in your photos. Our best replacement option would be the 39-031 depending on the length of the shorter link arm compared to yours. We can't be sure if the length of the arm would interfere with the window operation.

Dimensions for 39-031
Dimensions for 39-031

If you decide to give it a try and run into any issues, our return policy can be found here. I'm sorry that we won't be able to offer a closer match but please let us know if you have any other hardware questions. Thanks for posting.

Quick Learner
I already tried the longer arm. Did not work. I am going to cut 2" off and weld them back together.
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Since we have not personally made those kinds of modifications to any of our operators, we can't guarantee the outcome. If you decide to go that route, make sure to take safety precautions. I apologize that we can't supply a direct fit.
