need help with balance

Quick Learner
I was told by your customer service team these may be custom.
5 user uploaded images
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

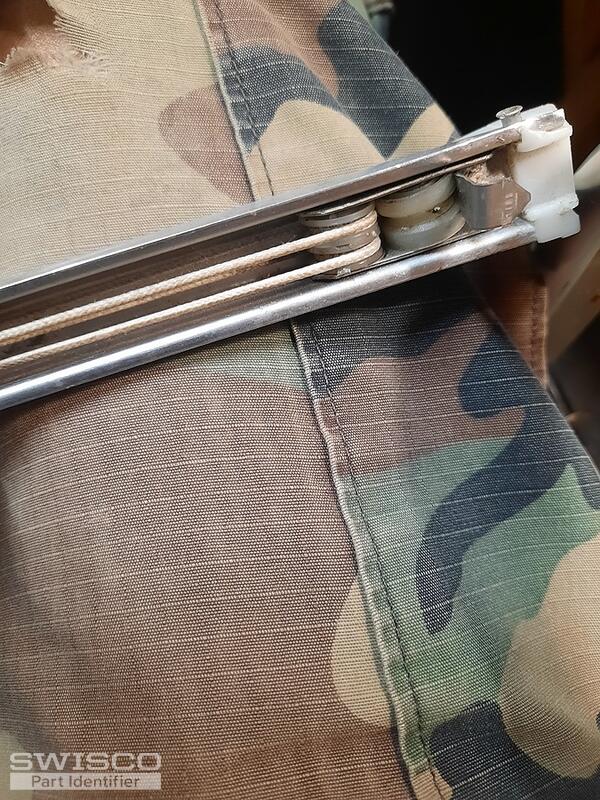

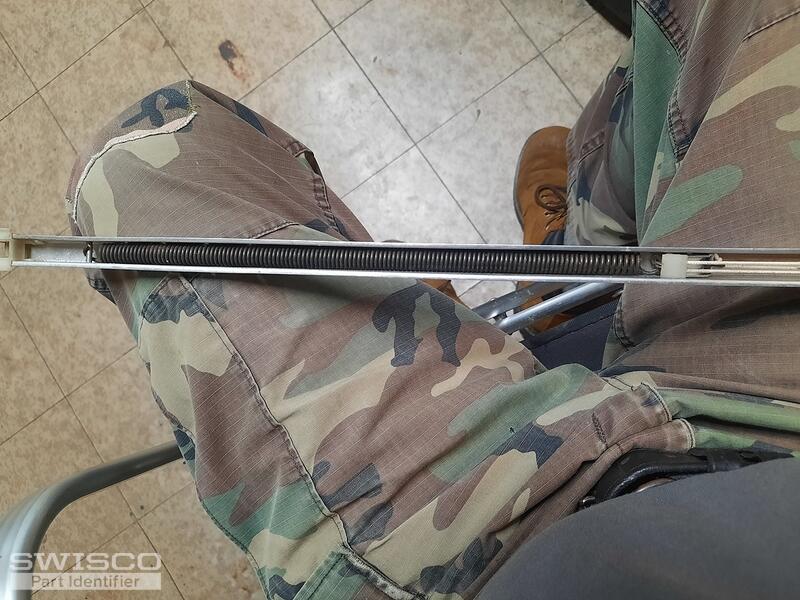

Hello! Your balance does appear to be a unique configuration, yes. This is a typical, if older, 1/2" non tilt metal channel assembly, but with the 19-034 top fitting and, potentially, the 15-004 bottom fitting.

First, look these two fittings over and let me know if you agree. Note that the depth on the 15-004 is 1-3/32", which is a very important measurement. If yours differs, I have to know.

If these parts match then I'll need the following pieces of information to continue:

  • The length of the metal channel by itself (do not measure the plastic fittings)
  • The stamp printed on the metal channel
  • The quantity of balances you wanted to buy

Once I have that data, and assuming that the 19-034 and 15-004 are correct, then I can email you a purchase link and price quote that you can use to place an order on our site.

Home Owner from Georgia
The two numbers you sent me  match  the  bottom sizes1"-3/32 and the top is 1/2 "The Chanel is 23 " the spring is 12"  and the widows are 18lbs all metal frame.

Tom
Tom from SWISCO
SWISCO
Expert

Thank you! That's almost everything we need. I still need you to give me an exact count so that we can get the ball rolling on this custom order.

Home Owner from Georgia
I need 16 of those balance  bars asap
I've looked at your pictures and what I have and I know I can use the numbers you mentioned
15-00419-034
Tom
Tom from SWISCO
SWISCO
Expert

Fantastic, thanks. I'll go ahead and email you a purchase link and price quote now that will let you add 16 of these to your cart. All materials are in stock and ready to ship when you place your order.
