need help identifying 2 different block and tackle balances for 2 sizes of single-hung vinyl windows

Quick Learner from Los Angeles, CA
Hello,

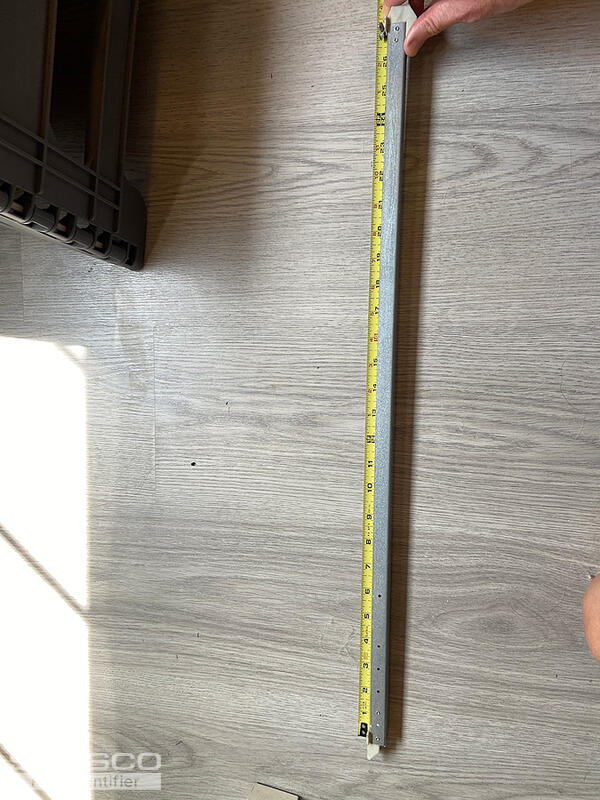

The metal part of the long balance measures 26 1/2" in length. The engraved number looks like "26 4 BSI 0D" to me.

The metal part of the short balance measures 20 1/2" in length and the engraved number looks like "20 4 BSI 0H" to me.

Please let me know what parts to order.

Thank You,
Linda
4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Linda,

Thanks for reaching out to us! The balances you have here are Extended-Travel Channel Balances and will need to be custom assemblies. I am confident we can supply you with the replacements you need but I'll need to see a clear photo of the hook/clip attached to the balance shoe.

Please also confirm the exact number of balances you intend to purchase for each stamp. There is an order minimum of (2) for custom assemblies.

Feel free to reach out with any questions you might have.

Quick Learner from Los Angeles, CA

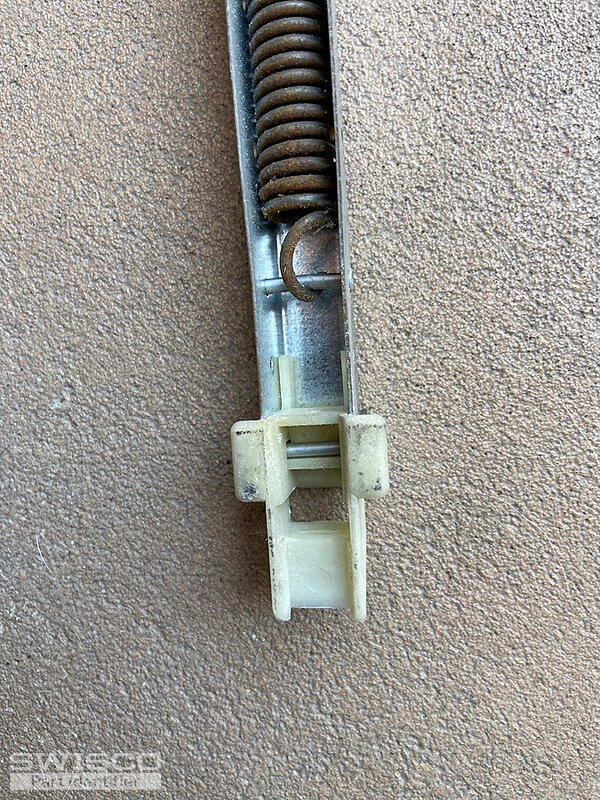

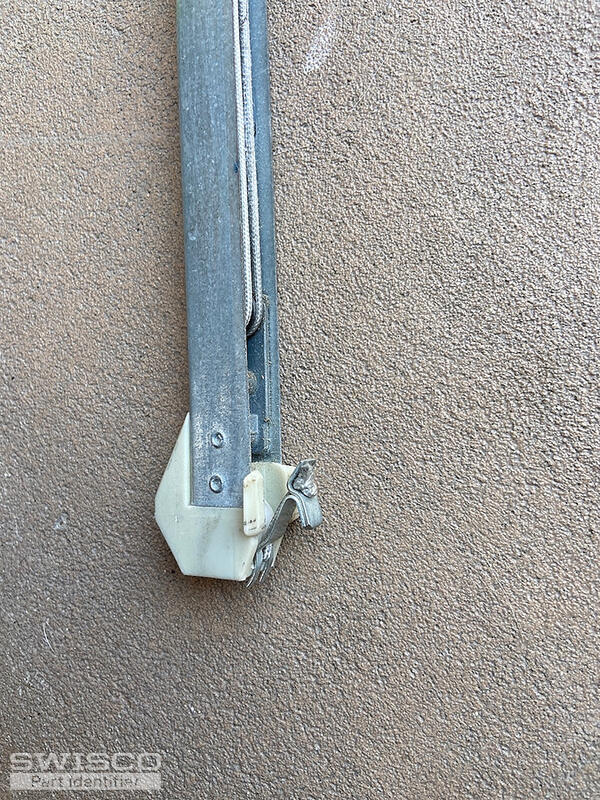

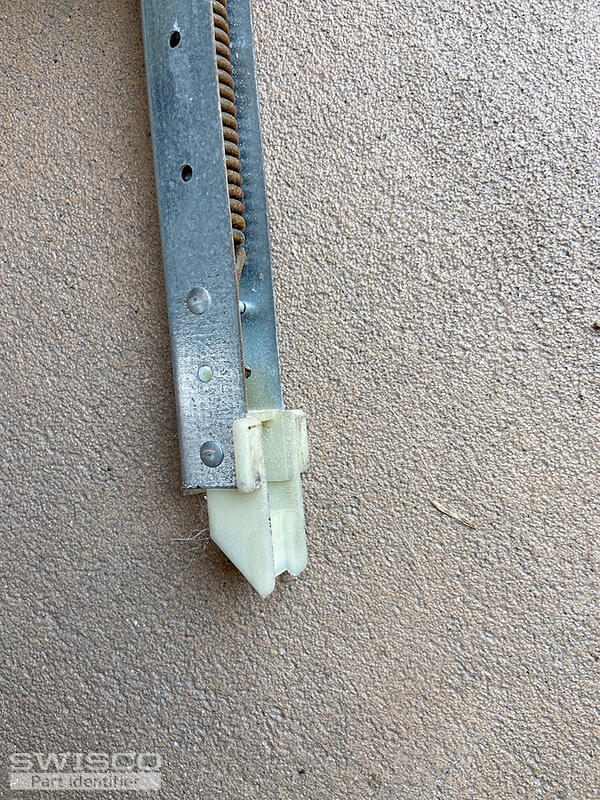

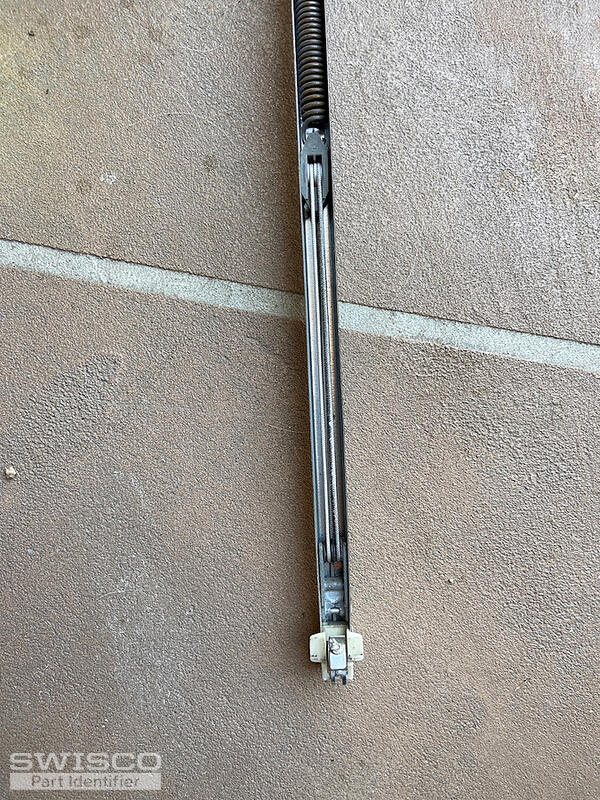

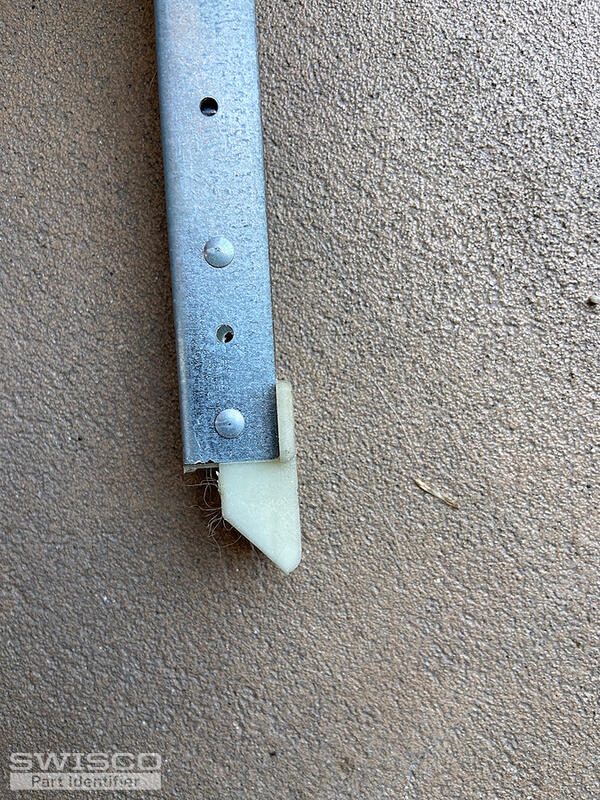

Okay, I wasn't exactly sure which end that means so included a few views. These images are for the long balance.
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the photos. I've forwarded a link with a quote for (2) pf each of the balances you need. You'll be able to use this link to review the quote and place the order from your online cart. If you need a larger quantity for either of them, please let me know and I'll be happy to update the quote for you; you won't be able to do so from your online cart.

I did want to make you aware that the replacements will have a different clip attached to the shoe. The one you have is no longer made but our manufacturer has confirmed the clip that will come on the balance to be a direct replacement.

I'm sure the shorter balance should have the same attachments that this balance has but you'll want to be sure to double check that before making your purchase.

Please don't hesitate to reach out with any questions you might have.
