need help identifying hardware

A home owner from Florida says:
April 26, 2019

I am looking for a two pivot guide rods for my bi-fold closet door. The door was made by National Bifold doors. You can see in the images the length of both of them. The one above the measuring tape is the top guide rod. The one below the measuring tape is the bottom guide rod.

Then there are two separate photos. I have seen several on the catalogue but they appear longer than mine. Thank you for any assistance.

Thumbnail of the uploaded file named 20190426_214426.jpg
Thumbnail of the uploaded file named 20190426_214841.jpg
Thumbnail of the uploaded file named 20190426_222721.jpg
A home owner from Florida says:
April 26, 2019

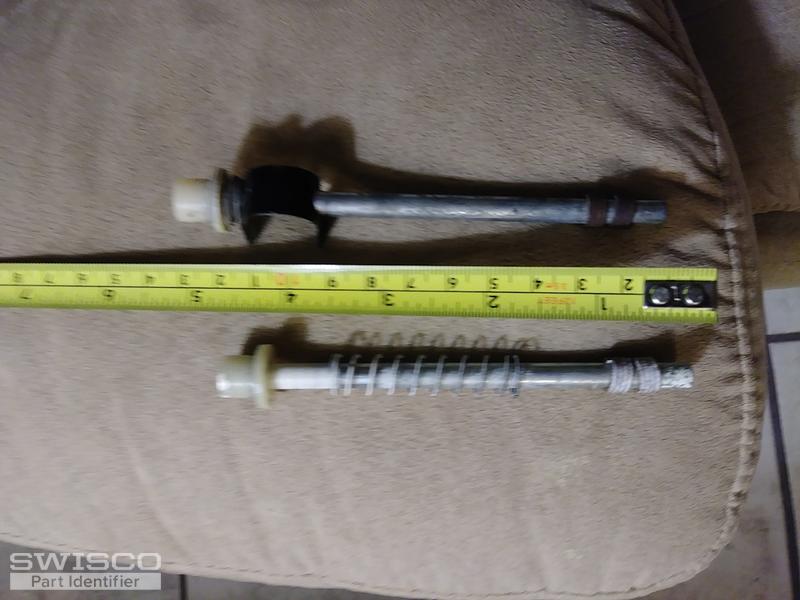

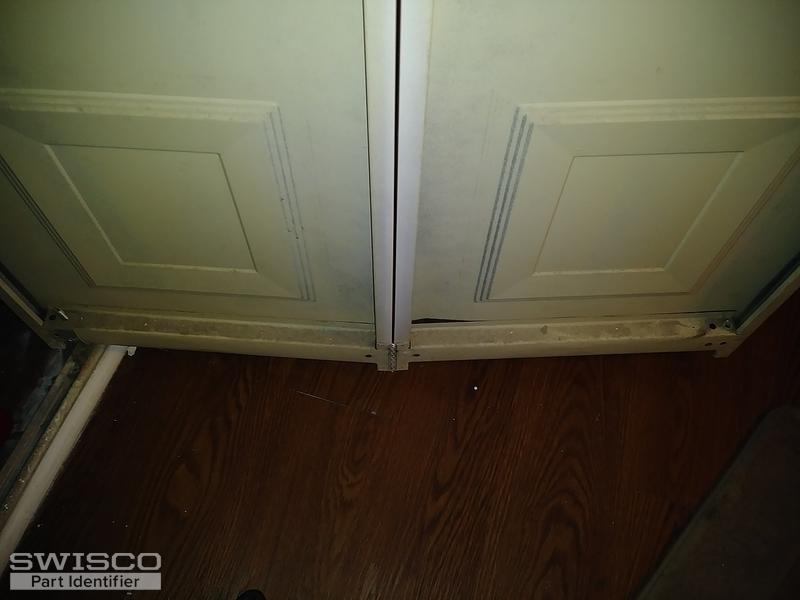

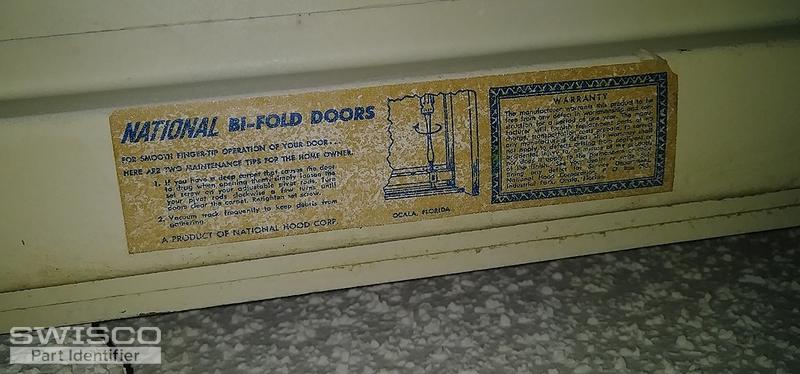

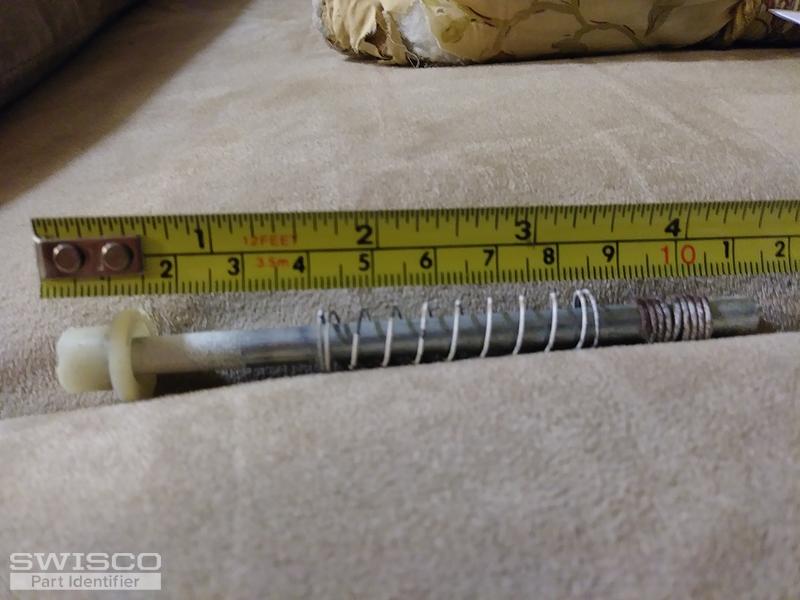

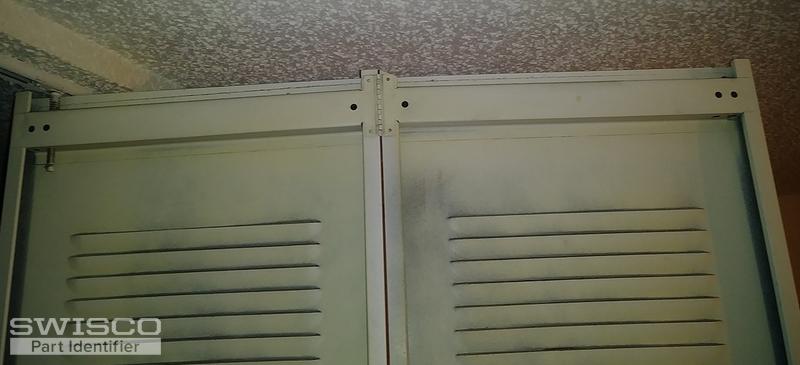

Here are a few additional photos to be as accurate as I can and a photos of the closet door itself.
Also for your information I barely have any knowledge of anything regarding hardware or fixing anything. I relied on my Father who was the fix-it man. I recently lost him so please understand my knowledge is very limited in this area. Thank you again.
Thumbnail of the uploaded file named 20190426_225806.jpg
Thumbnail of the uploaded file named 20190426_230044.jpg
Thumbnail of the uploaded file named 20190426_225428.jpg
Thumbnail of the uploaded file named 20190426_225239.jpg
Thumbnail of the uploaded file named 20190426_225224.jpg
Profile picture of Paul
Paul from SWISCO responded:
April 29, 2019

Greetings. We may be able to supply this part but we will need a bit more information before we can continue. Can you tell me the diameter of the pin and nylon cap? From there, we will do our best to find something that can work as a replacement.
A home owner from Florida says:
April 30, 2019

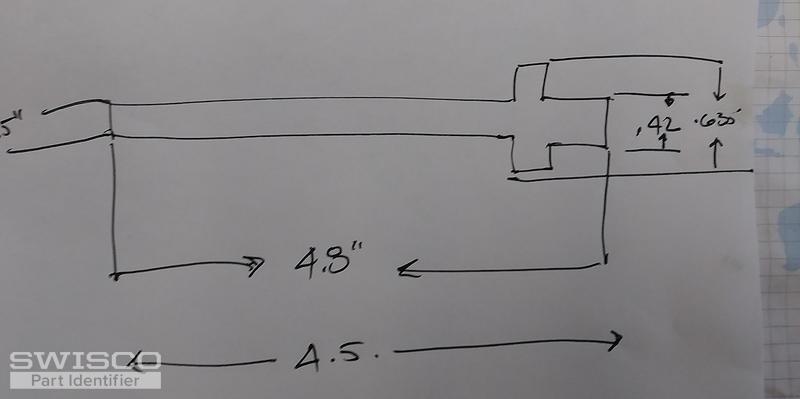

Sure Here is a diagram of the measurements.
Thank you.
Thumbnail of the uploaded file named 20190430_095828.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 1, 2019

The diameter of your pin was missing, but if it is 1/4", you can use the 21-078. Take a look and see what you think.
A home owner from Florida says:
May 2, 2019
Sorry Paul,

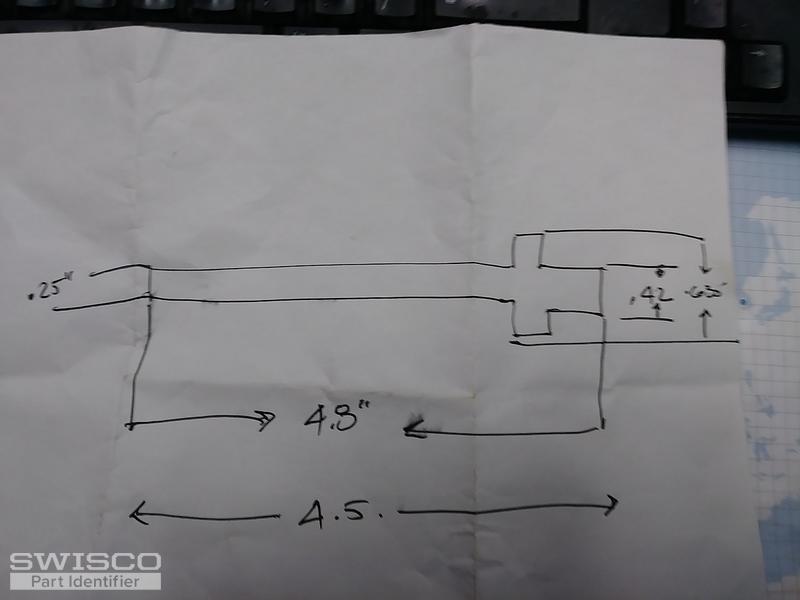

Here is the full diagram. I mistakenly left out the measurement of the diagram which is .25" (left side of picture). If you can get the exact match I will need to order several pair.
Thank you.
Thumbnail of the uploaded file named 20190502_080413.jpg
A home owner from Florida says:
May 2, 2019

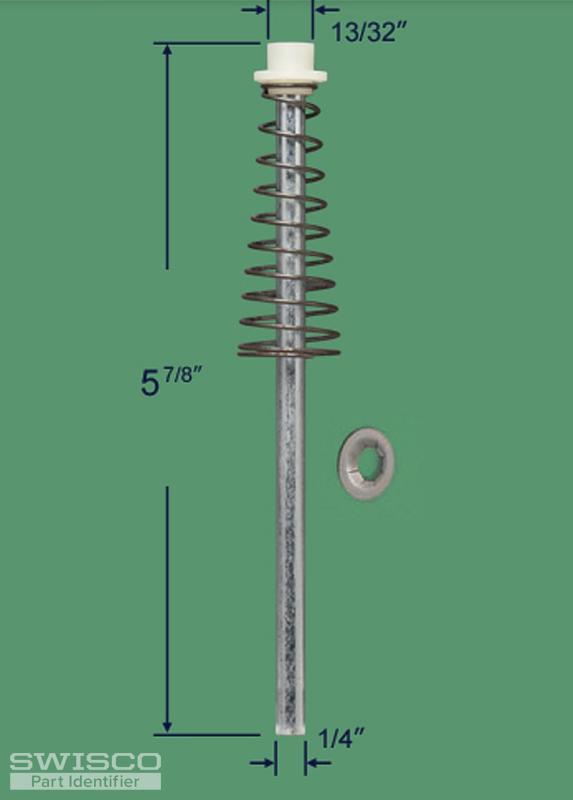

Paul, the part #21-078 which you have me has a length of 5.7/8 inches. Mine has a length of 4.8". Will the difference in the length matter? As I had said I am a complete novice at anything that has to do with bi-fold closet doors. Thanks.
Thumbnail of the uploaded file named Screenshot_2019-05-02-08-30-26.png
Thumbnail of the uploaded file named 20190502_080413.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 2, 2019

Thanks for getting back to us. I don't think the length will make that much of an impact, the diameter of the pin and the cap are the most important detail. As long as those match up then I think our 21-078 is worth considering. It won't be an exact match, but I couldn't find anything closer to your specifications.
A home owner from Florida says:
May 2, 2019
Ok. Thank you. As long as it works I'll order some. Thank you again.
A quick learner from Florida says:
May 26, 2019
That was the part. Thank you Paul. I'm going to order a few more for spares.
Profile picture of Paul
Paul from SWISCO responded:
May 28, 2019

That's great! Thank you for the update and please let me know if you ever need anything else.
