need help identifying this balance

Quick Learner

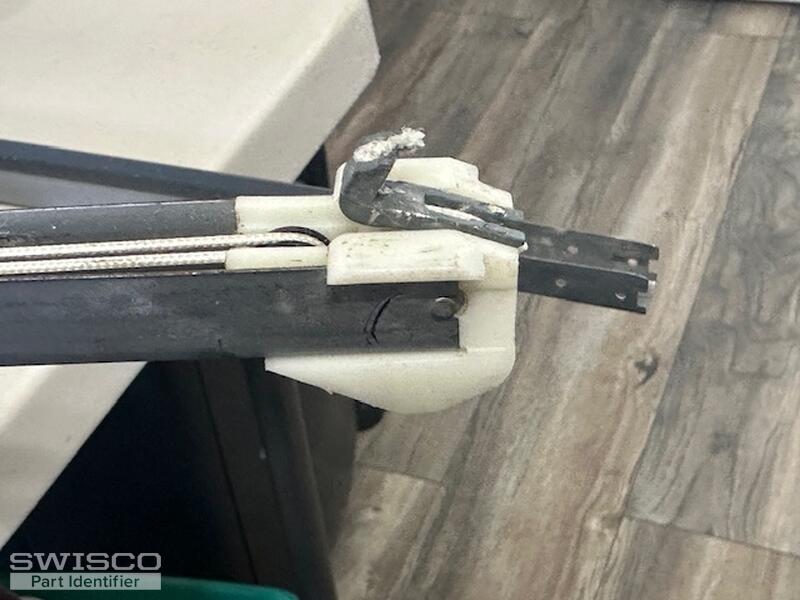

Please help identify this balance.
4 user uploaded images
5 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. To get started, we'll need to know the numbers stamped on the metal channel to confirm the correct replacements. We'll also need to know the number of balances you need, with the minimum being two. Thank you!

Quick Learner
2765 is stamped number on metal channel
quantity of two

Quick Learner
Length of metal channel is 27 &. 3/4 inches
main difference I can see is pin holding spring in place versus the units I have where spring is attached to plastic top guide. not sure if that makes any difference as long as guides match at top and bottom and hook matches
Casey
Casey from SWISCO
SWISCO
Expert

We just sent over an order link and price quote for you to review. Keep in mind that the metal channels for these types of balances measure 27-7/8" long, not including the end fittings. Your balances should be the same length. These balances also have extended travel pulley systems that extend into the bottom fitting, as well as different style fittings and pulley clips compared to our stock balances, which is why they need to be custom ordered. Take a look and let us know if you need anything else.
