need help identifying this part

Quick Learner

Howdy and to whom it may concern,



I need help identifying these window balances so I may purchase them. I sent a zip file because there is a bunch of pictures I took.



To unzip file, right click on file, click "Extract All..." , then save to desired destination, then click "Extract". You will be able to see all of the jpg pictures. Thank you so much in advance and I look forward to hearing from yall!



Very Respectfully,

Rowland

5 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Rowland.

Thanks for reaching out to us! I'm afraid we can't accept ZIP files, but these photos are very helpful. What you have here is called an extended travel balance. It isn't a part of our stock catalog, but we can still help via custom order. Can you confirm the length of the metal channel, along with the stamped printed on the back of it? How many balances are you looking to order?

Quick Learner
Howdy Emily,

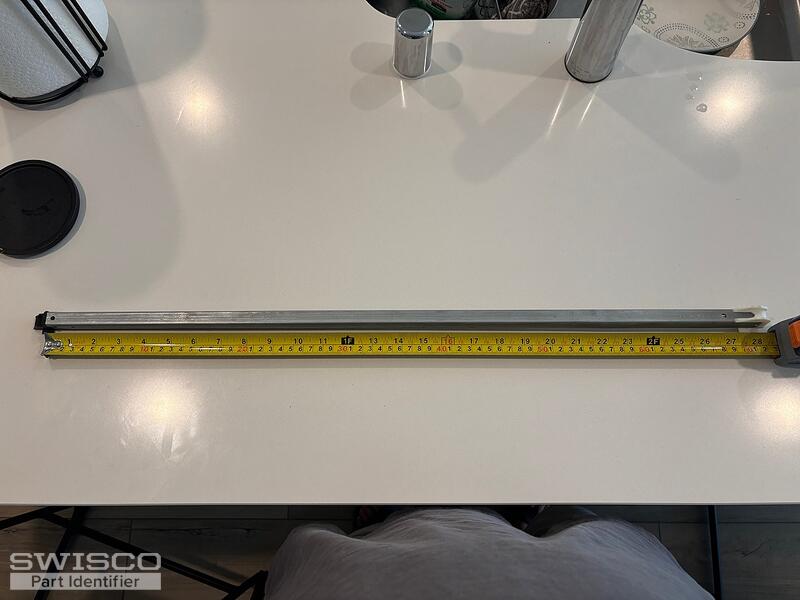

I am getting a length of 27.75 inches and the stamped imprint is 27 4CJ BL. I am looking to purchase two balances.
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for getting back to me! I'm afraid we can only supply replacements with 27-7/8" long metal channels. We can't promise they'll work for you if the length differs. It's also important to note that custom orders are nonrefundable.

It couldn't hurt to double-check just to be safe, but if you're still interested, please let us know.

Quick Learner
Yes, I am interested still. If the end "fittings" are the same and the channel with the hook I believe it should work. Are the balances built to withhold a amount of weight? I can weigh my window to see if it will withstand.
How much would it cost for the two?
Emily
Emily from SWISCO
SWISCO
Expert

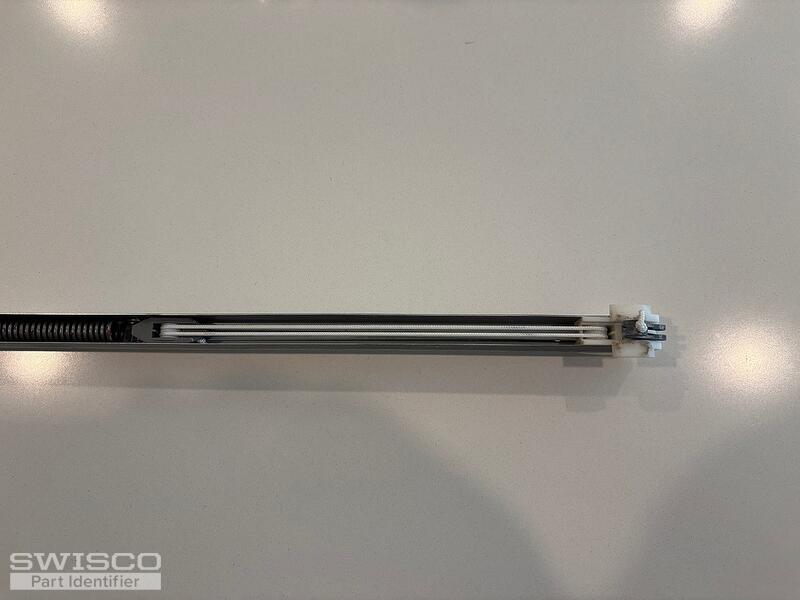

A pair of 2740 balances can support a sash weighing 19 to 26 pounds. The balances will also have the same metal clip, top, and bottom fittings as shown in your photos.

I'll go ahead and email you a purchase link for (2) that you can use to place an order on our website. Note that there is a 5-6 week lead time.

Please let us know if you have any questions.
