need help on a window balance

Quick Learner from salt lake city
Jun 21, 2011 2:53 pm
can you tell me what I have ... I measure the balance rod it is 28 inch ... the width is 1/2 inch ... I have picturs

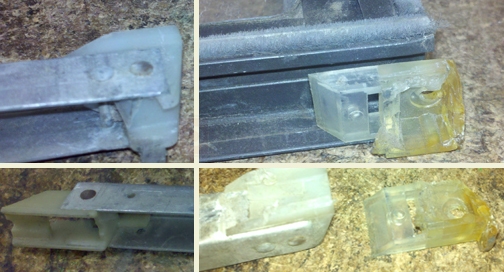

User submitted photo of channel balance and attachments.
5 Replies
Paul
Paul from SWISCO
Jun 21, 2011 3:44 pm
SWISCO
EXPERT
Thank you for submitting your photos.

Are there any markings on the channel balance?
Quick Learner
Jun 21, 2011 3:50 pm
yes ... on the back it 2730 .... and I think a letter z

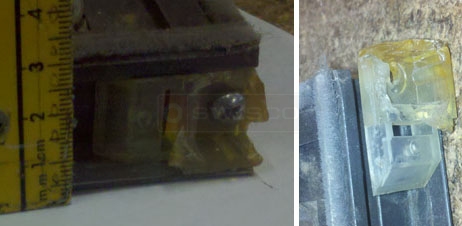

User submitted photo of their channel balance stamp 2730 Z
Paul
Paul from SWISCO
Jun 22, 2011 11:44 am
SWISCO
EXPERT
You will need a custom made replacement balance with the 19-002 top and the 15-005 shoe. Take a look at both of those attachments and make sure they match up to your balance attachments.

To receive a quote on this balance fill out our custom balance form. After you fill out the form you will be emailed a quote and an ordering link.

Let me know if you have any questions.
Quick Learner
Jun 22, 2011 12:00 pm
thanks very much ... we have one more part ... the pics on the upper right is a piece that screw onto the window ? it is not attach to the balance ? thanks again
User submitted photo of their clear top sash guide.
Paul
Paul from SWISCO
Jun 23, 2011 9:34 am
SWISCO
EXPERT
I think our 18-009 top sash guide may work. It would be better to look at an unbroken one on a different window to help you decide. You can also take a look through our top sash guide catalog section to see all the other styles we offer.
