need help with sash balances

Quick Learner from Ocean Springs,MS
I have a Jordan window 46"w x 24"h. The channel is 3/4" wide. The sash balances are missing. I will need all parts to put these in. I have no idea what parts are needed. Can you help??

Thanks
Frank
2 user uploaded images
7 Replies
Paul
Paul from SWISCO
SWISCO
Expert

If the original balance is missing, it will be very difficult to know for sure what you need. I can tell you that Jordan windows have been known to use our Series 390 in the past, but that's no guarantee.

Do you have an identical window in the house that you can use as a reference? Even if it's not the same size, as long as it's the same make then you could at least confirm that the Series 390 is right.

Assuming that's the Series you want, then we'll need the height of the visible glass and exact weight of the sash for the problem window. That will allow us to determine the proper size and strength of the new hardware.

Quick Learner from Ocean Springs,MS
My window exposed glass is 43" w x 21 1/4" h
Sash weight 23 lbs

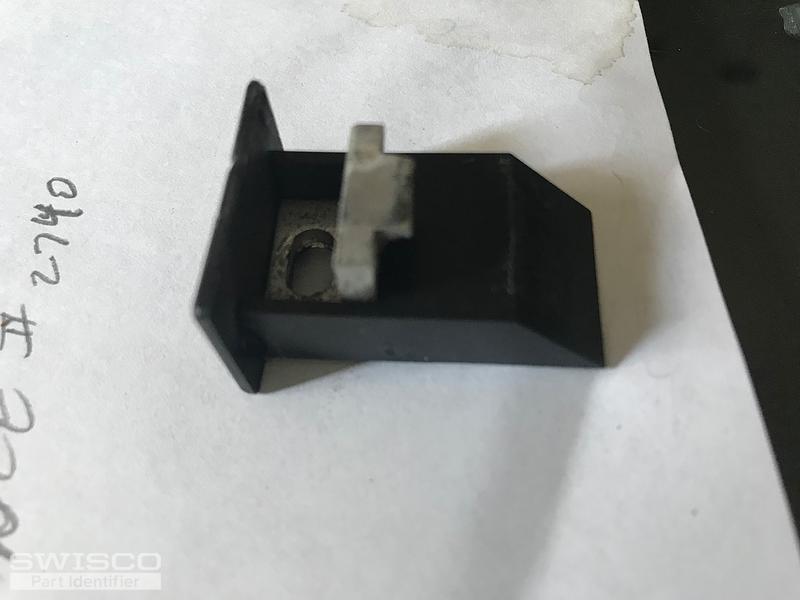

I have attached pictures of the top sash guides. It's a 2 piece thing but it's old. I would need top guides for both sides and balances both sides. I looked at the installation video and it looks right.

Thanks for the help.
Frank
2 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

Thank you! In that case, I think you want to go with our S390-22 with a 2140 option, which carries 15 through 23 pounds. You can also use the 2150 option, which carries 23 through 27. It's up to you; both carry 23 pounds.

As for the top sash guide, I'm afraid that I wasn't able to find an exact match. We have a few that are similar, but none have that metal clip, which appears necessary for the guide to fulfill its function. I'm sorry that we cannot offer a good match for this part.

Quick Learner from Ocean Springs,MS
Will the top clip I have work with those balances?
Quick Learner from Ocean Springs,MS
Thanks for your help.
We ordered the balances last night.
Paul
Paul from SWISCO
SWISCO
Expert

Awesome, thank you! As for whether our balance can work with your top sash guide, that really depends on if the Series 390 is right or not. Since yours is missing, there's no way we can confirm one way or the other.
