need lower replacement pivot

Handy Person from 07422

Mar 26, 2020 11:44 pm

hi hoping you can help me. the door now slides off the pivot which basically seemed like it was like a indented quarter that it sits onto of. can you please call me to discuss which part I many need and i can order a replacement one. Thanks

1 user uploaded image

5 Replies

Tom from SWISCO

Mar 27, 2020 10:02 am

This looks like a type of pivot for a commercial door. We carry a few different kinds, but I can't make out what you have from this photo. The way I usually identify these is to go off of the installation hole pattern, since that's the most unique detail between the different types we carry.

I recommend looking at our entire selection of commercial pivots on this page. See if you can pick out a good match.

Handy Person from 07422

Mar 29, 2020 4:56 am

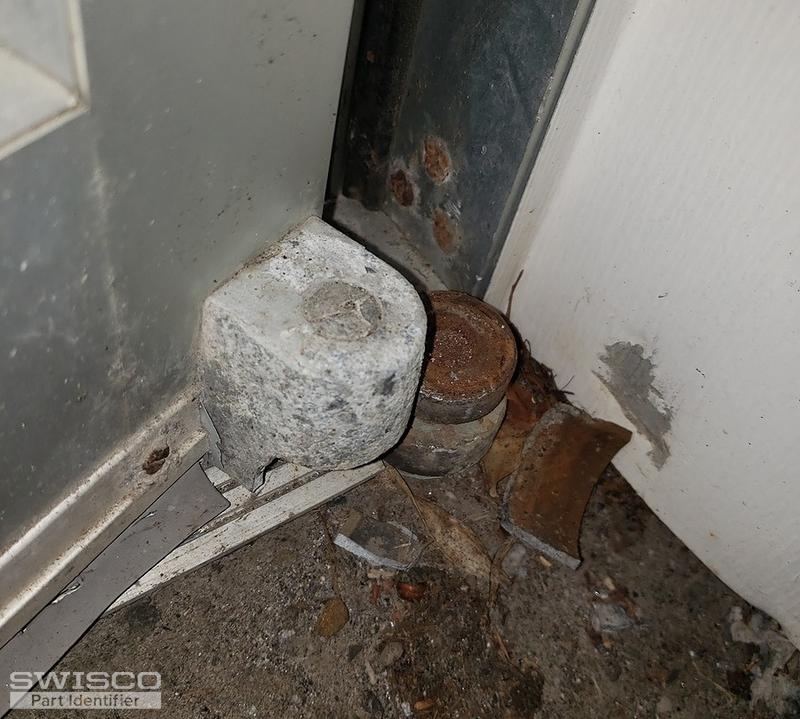

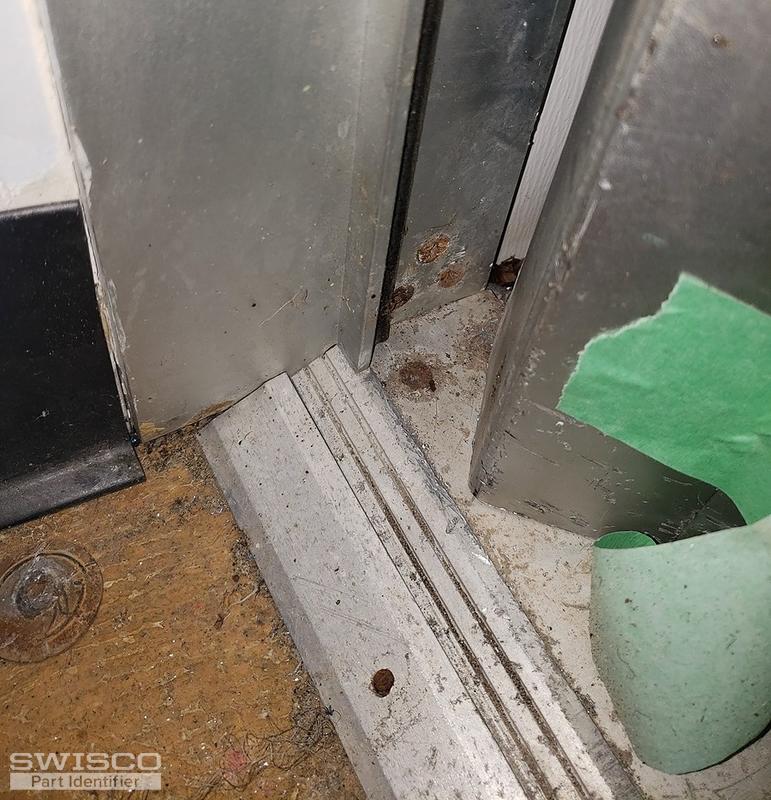

hi I uploaded a couple more pictures that may help . let me know if you can identify one that would work. this is to lower pivot

4 user uploaded images

Tom from SWISCO

Mar 31, 2020 2:30 pm

I'm uncertain about this pivot's identity, but I'm forwarding this discussion to one of my senior colleagues who specializes in this sort of hardware, and we'll get back to you as soon as we can with more information. Thanks for bearing with us.

Dave Sr. from SWISCO

Apr 1, 2020 7:30 am

Hey there, I'm the colleague Tom mentioned. I think I can help.

Take a look at the 79-123 commercial door pivot set to start out. These are used on Kawneer doors. We also have a video that you may find helpful. I think there's a good chance the 79-123 set can work, though If you have the older Kawneer door you will need to drill new holes for the door portion of the pivot. The video should explain it all.
