need new balance : SWISCO.com

Home Owner from 86404

Oct 20, 2024 11:50 am

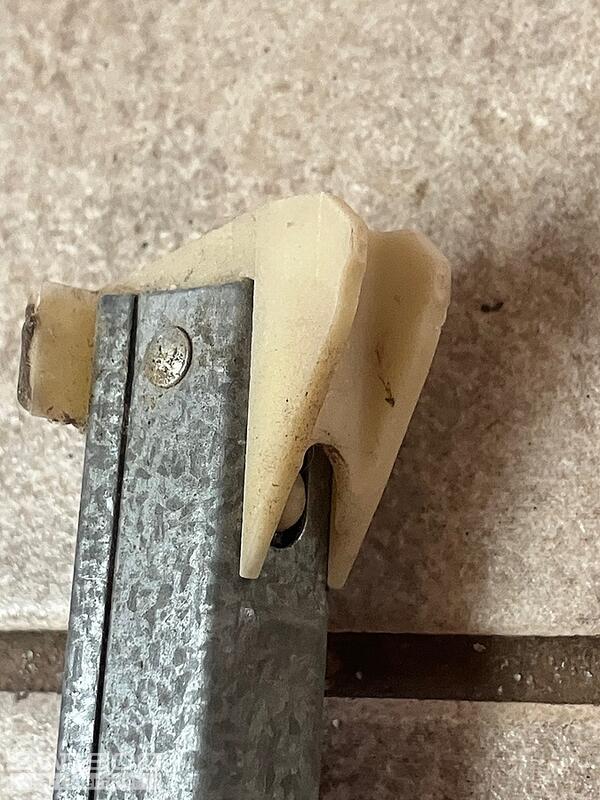

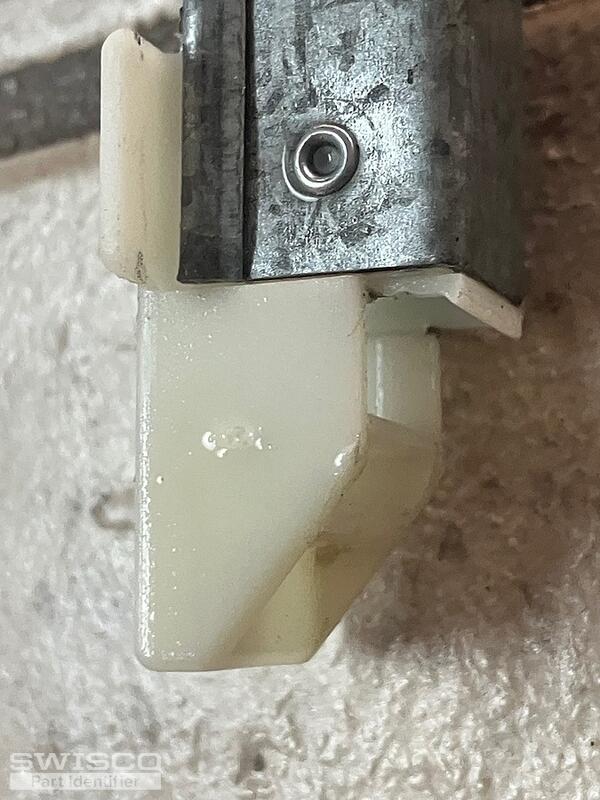

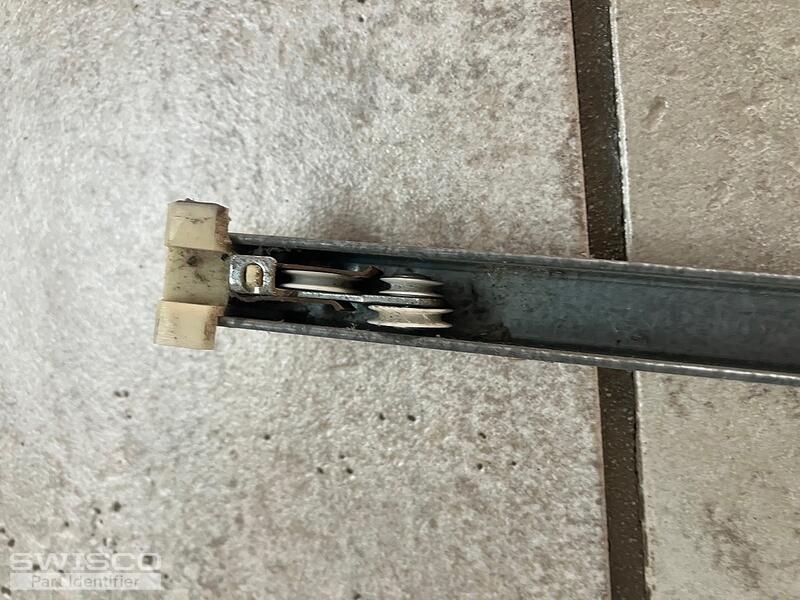

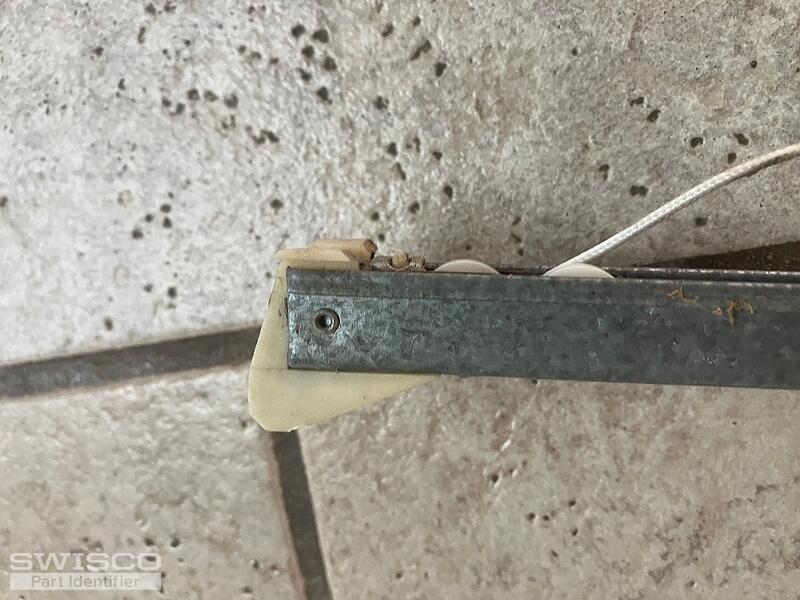

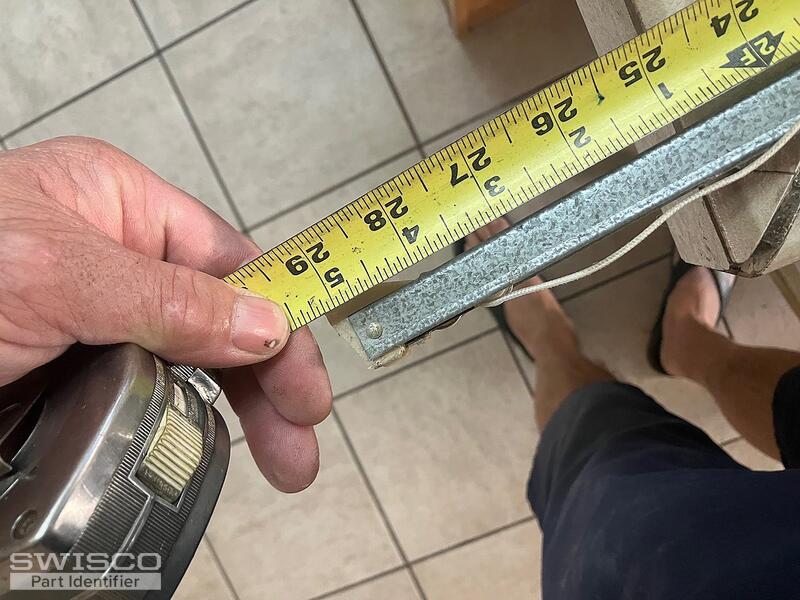

I need a replacement balance for my dual pane, non tilt sash window. I need 1 but would consider replacing 6 if the price is not to bad.

5 user uploaded images

8 Replies

Lauren from SWISCO

Oct 23, 2024 12:46 pm

Hello, thank you for posting,

We can assist with replacement balances, but to narrow down the series needed, we will need to see pictures of the inside of the metal channel where we can view the connection point between the spring and pulley system. Please also provide a picture of the number stamped on the metal channel. Thank you!

Home Owner from 86404

Oct 23, 2024 8:25 pm

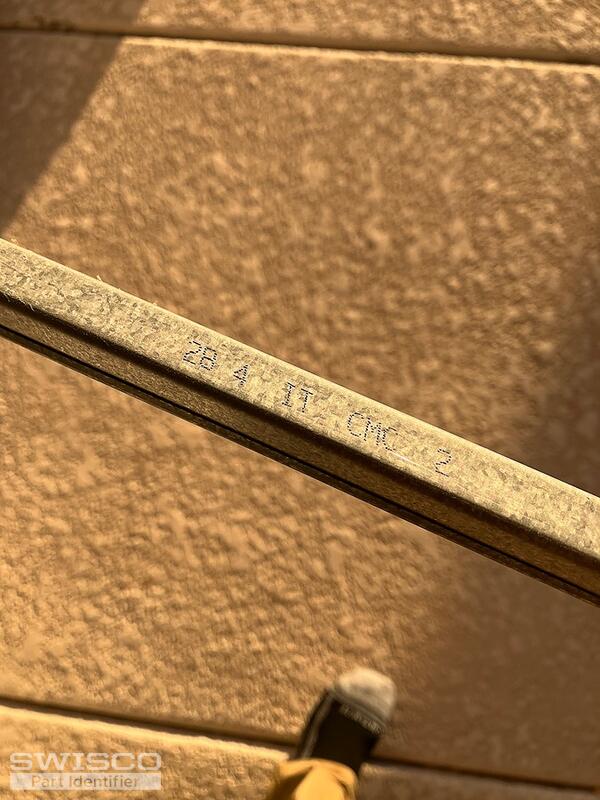

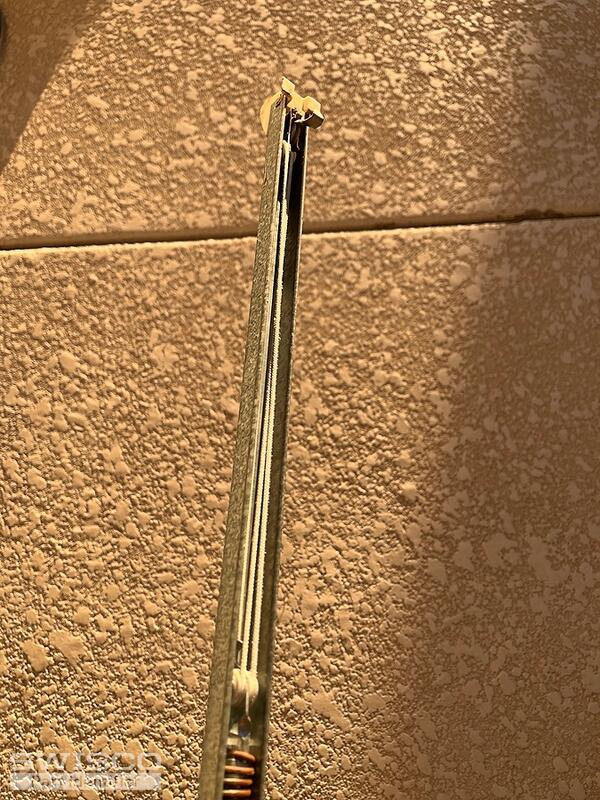

I took out one of the good ones and took a couple pics. The pulley system and I found a printed number. Hope this helps!
Thanks!

2 user uploaded images

Lauren from SWISCO

Oct 24, 2024 8:23 am

Thank you for the additional images,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 29" long and you will need a 2840 stamp option. Please review and let us know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from 86404

Oct 24, 2024 3:52 pm

OK! Looks like I have the 29" 385 balance... the end is just wider than 1". The price seams great so, I'd like to order all 6 for this room.

Please let me know how to proceed with ordering. Thank You!

Lauren from SWISCO

Oct 25, 2024 7:44 am

Hello,

An order can be placed directly from the S385-29 product page and by choosing the 2840 option. Please review and let us know if you have any additional questions!

Home Owner from 86404

Oct 25, 2024 10:05 am

I've placed my order.... Thank you for your help!

Lauren from SWISCO

Oct 25, 2024 11:32 am

No problem! Let us know if you have any future hardware questions.
