need patio door replacement lock

Home Owner from Minnesota
May 21, 2024 9:32 pm

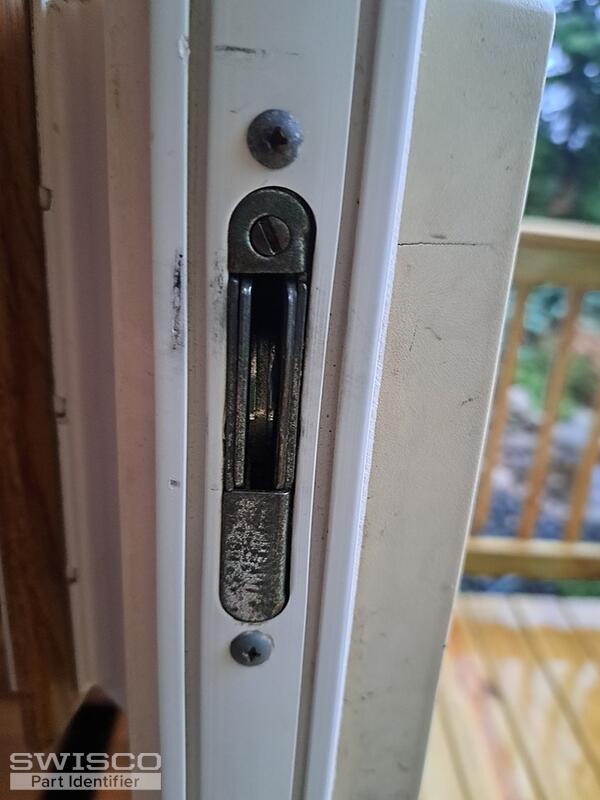

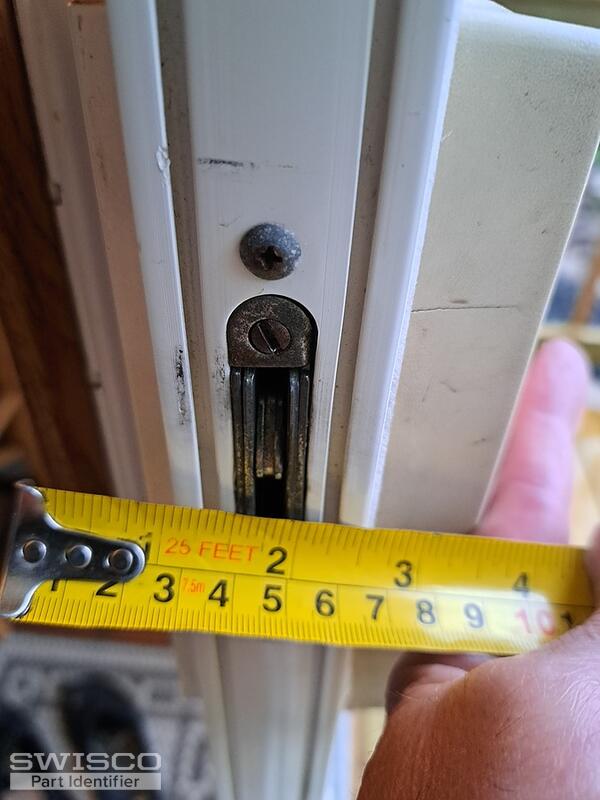

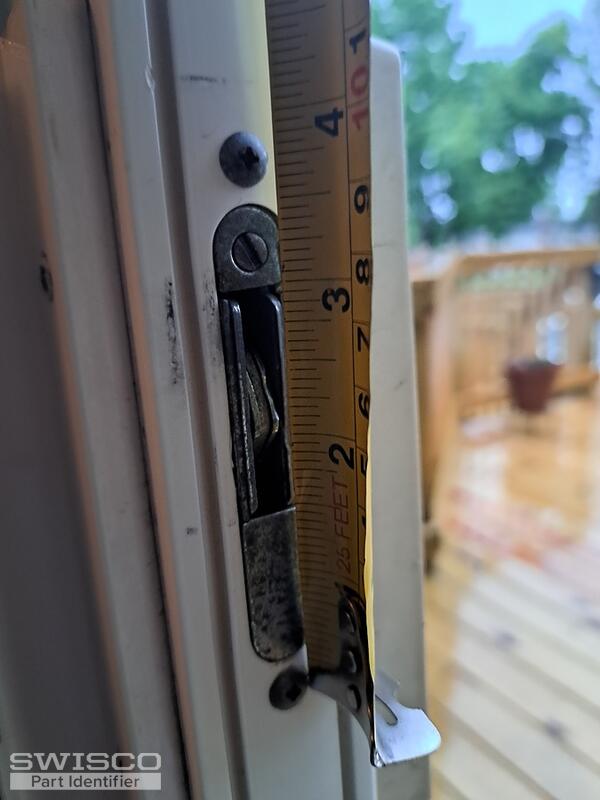

Need a new lock for patio door, but don't know the model or manufacturer. When I flip the lock-lever, the latch does not work correctly, so can't lock the door. About 3 3/4 inches between the two main screws holding it in. Lock is about 3 inches x 1/2 inch.

Door is probably from 1994 when the house was built. Don't see any manufacturer info on the door. Bug on glass has CTG TEMPERED 16CFR 1201 II SGCC 1804 1/8U

Any idea what replacement part will work for this?
Thanks!
mortise lock mortise lock mortise lock
3 user uploaded images
3 Replies
+ Add a Comment
Emily
Emily from SWISCO
May 23, 2024 1:32 pm
SWISCO
EXPERT

Hey there!

Thank you for contacting us. Your mortise lock reminds me of the 82-218. This has a "round face" design. Review the specifications and see if they match what you're searching for.

Opposite side view 82-218
Opposite side view 82-218

Profile view of 82-218
Profile view of 82-218

Home Owner from Minnesota
May 23, 2024 2:21 pm
Looks like the right dimensions, thanks!
Emily
Emily from SWISCO
May 24, 2024 8:19 am
SWISCO
EXPERT

Of course! I'll be here if you need anything else.
