need pivot shoe replacment part# and i think it is an alignment latch as pictured

A home owner from OK says:
Simonton window parts needed
Thumbnail of the uploaded file named latch.jpg
Thumbnail of the uploaded file named pivot shoe 1.jpg
Thumbnail of the uploaded file named pivot shoe 2.jpg
Thumbnail of the uploaded file named IMG_0970.jpg
Profile picture of Manuela
Manuela from SWISCO responded:

Thank you for sharing your photos with us. Starting with your pivot shoe, I think it can be replaced with our 15-155. You will need to compare our piece with one of your shoes with no damage to confirm whether or not this is a match. This shoe can be used with both the Series 170 and Series 171 coil springs. The difference between these springs is that the Series 170 has a "short tongue" while the Series 171 has a "long tongue". Remove your coil spring from the window to carefully match up your part with ours. On the spring, there should also be some sort of stamping or marking on it. Please get back to us with that information. If there are no stampings, we will need the exact weight of the sash. Lastly, for the window lock, are you looking to replace that as well? If so, please get back to us with the screw hole to screw hole measurement. Thank you.

A home owner from Oklahoma says:

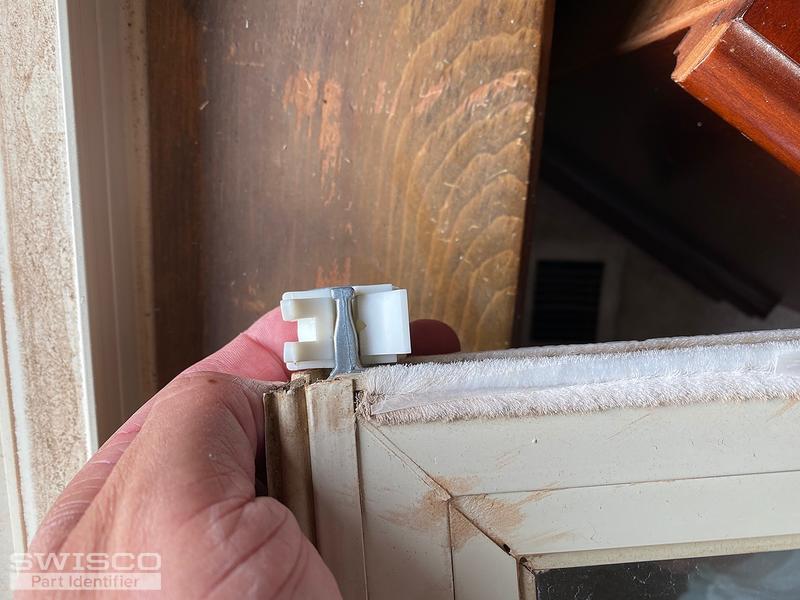

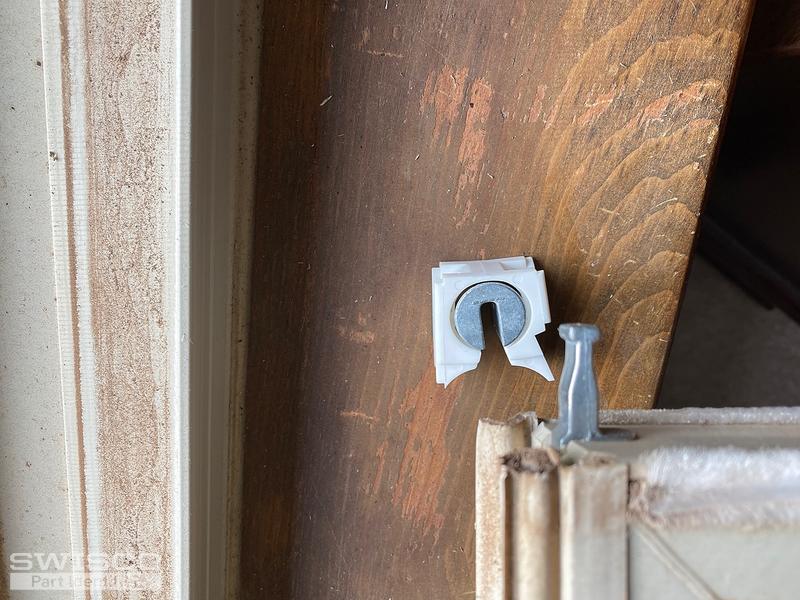

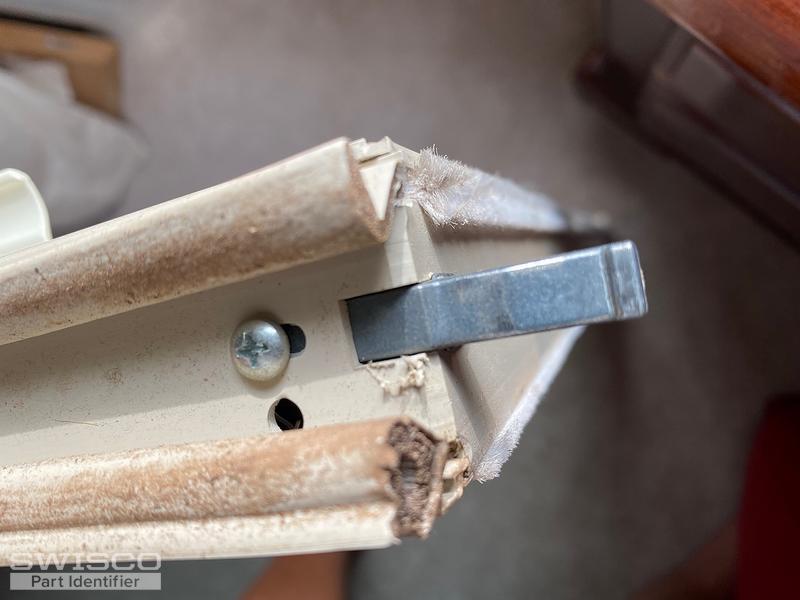

Thank you. The pivot shoe worked but I need a pivot bar to fit. The existing to too wide. Pic attached.

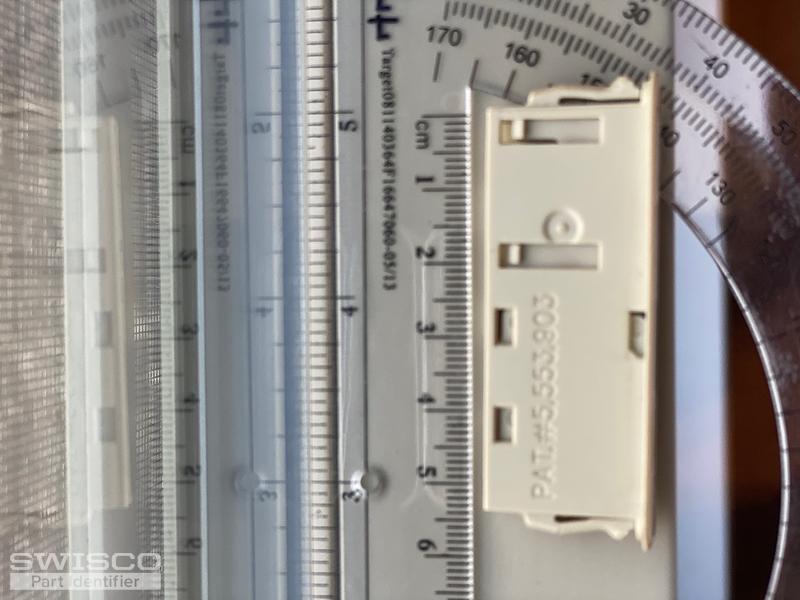

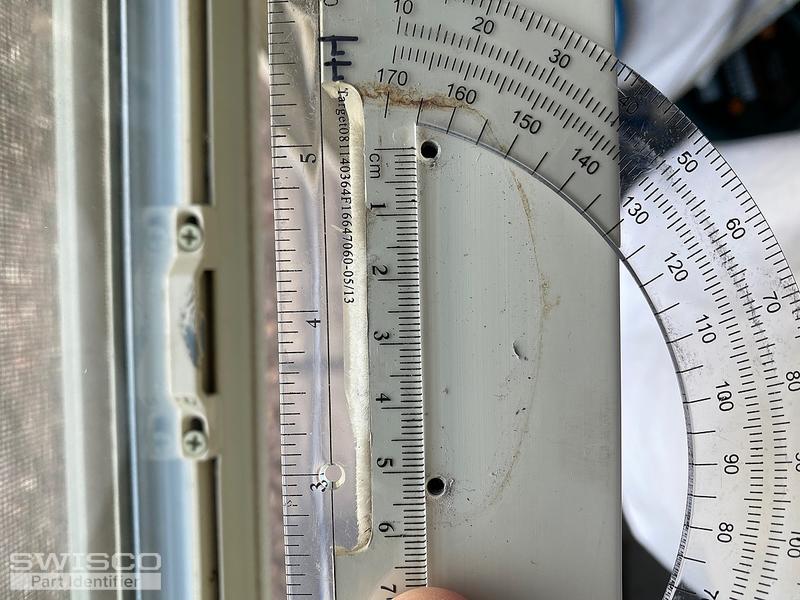

Also added dimensions for latch. Pic attached

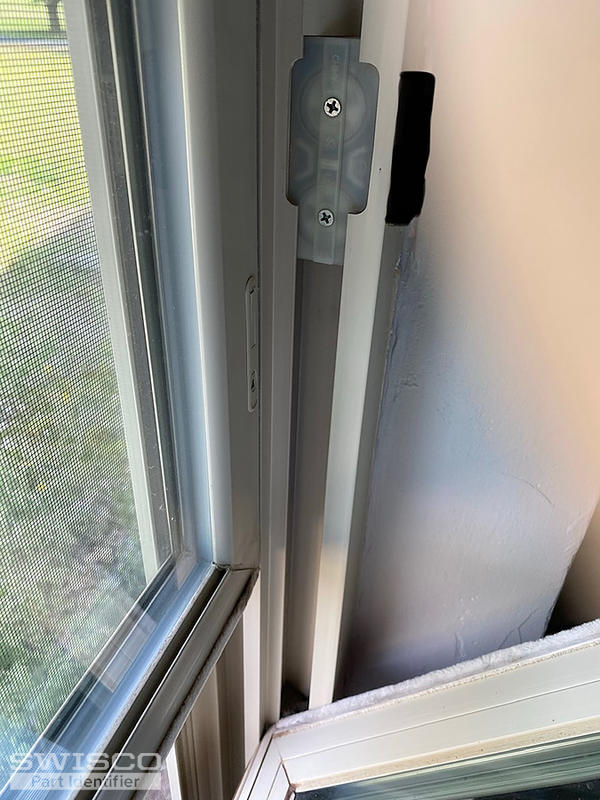

And need window vent locks. Pic attached.
Also need it to be same color.
Thumbnail of the uploaded file named B2252157-ED57-4631-AEE5-3DF067598218.jpeg
Thumbnail of the uploaded file named EBDF0033-209A-4008-9573-7E35E9FD6201.jpeg
Thumbnail of the uploaded file named 86C090C8-F985-4B75-B6DB-DF8B308E77B0.jpeg
Thumbnail of the uploaded file named DF7B0516-AF0A-4F1B-AADB-A6BACDEBB9B0.jpeg
Thumbnail of the uploaded file named 644194B1-BBA7-4B0F-B72D-A5EDDCD2F9DC.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Manuela isn't here today, but I will do my best to help. I recognize your window, anyway. It looks to me like you have older Simonton brand hardware. These parts actually aren't made anymore, unfortunately. The Certainteed brand parts that Manuela recommended will work fine, but the old pivot bar isn't compatible with the metal cam used by the Certainteed pivot shoe. As a result, you need to reuse the metal cam from your old shoe. They can swap out.

I know that's not ideal but these parts of yours have been discontinued for a long time now. This is the best solution we have come up with. The only alternative is to grind down the tip of your pivot bar flat so that it will fit in the new style cam.
