need replacement channel balances

A handy person from St. Louis, mo says:
April 23, 2020
I need to replace some Jordan window channel balances. House built in 1996. The windows are 30 " tall. The channel balances are 30" long from the plastic tips at both ends. The windows are stamped "Jordan A 96" , the existing channel balance markings are a little faded, but I think they're marked "28 3 IO Caldwell". I also need some replacement spring clips. Do you have this product? Thanks for your help.
Profile picture of Tom
Tom from SWISCO responded:
April 27, 2020

We should be able to help, but we will need more information to get started. Can you show me a picture of the top and bottom plastic tips that you mentioned? The combination of those tips will determine the Series.

I also recommend double checking the length of the metal channel. Based on your stamp, it should be 29", not 30".
A handy person from St. Louis, mo says:
April 29, 2020
Yes, the metal channel, alone, is 29 inches.
Thumbnail of the uploaded file named IMG_0842.jpg
Thumbnail of the uploaded file named IMG_0843.jpg
Thumbnail of the uploaded file named IMG_0844.jpg

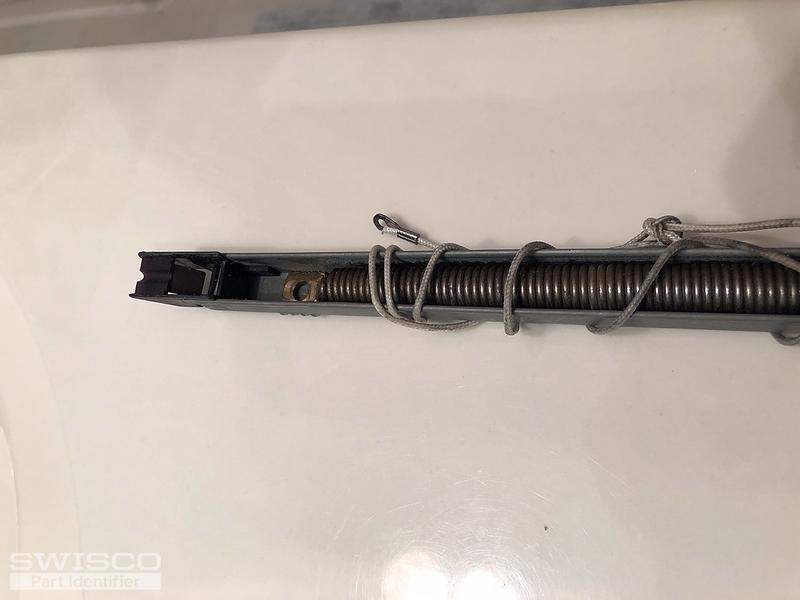

Thumbnail of the uploaded file named IMG_0845.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 30, 2020

Thank you! These pictures are a huge help. I was able to narrow it down to just two products: either our S390-29 or S351-29. The only difference between these two balances is the depth of the bottom nylon fitting (the one in your second photo). The S390-29 has a 1-1/8 deep bottom fitting and the S351-29 has a 1" deep bottom fitting. You need to measure your depth to confirm the better choice.
A handy person from St. Louis, mo says:
May 4, 2020

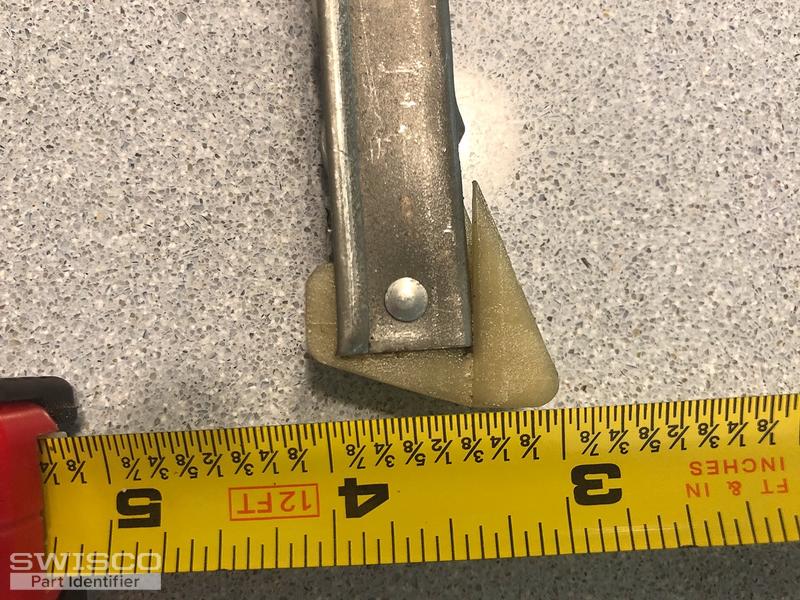

The nylon fitting is about 1 1/16 inch deep. (see photo)
Thumbnail of the uploaded file named IMG_0853.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 5, 2020

Thanks! In that case, I think our S390-29 is the best option. Your bottom fitting was probably 1-1/8" originally and simply wore down over time.
A handy person from St. Louis, mo says:
May 5, 2020
Thanks...will order today.
