need replacement for both sides of window sash.

Contractor from Kimberton
30D 0G (or OG) BSI (or BS1) stamped on the side.

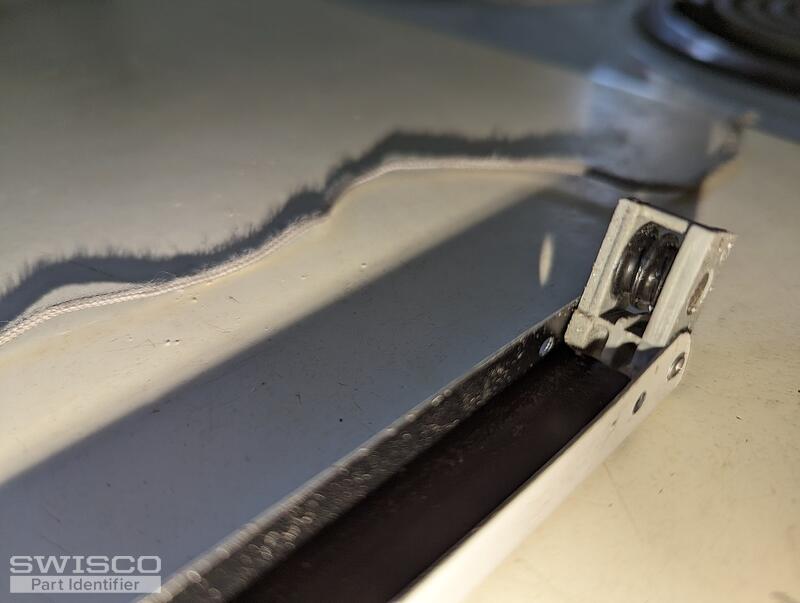

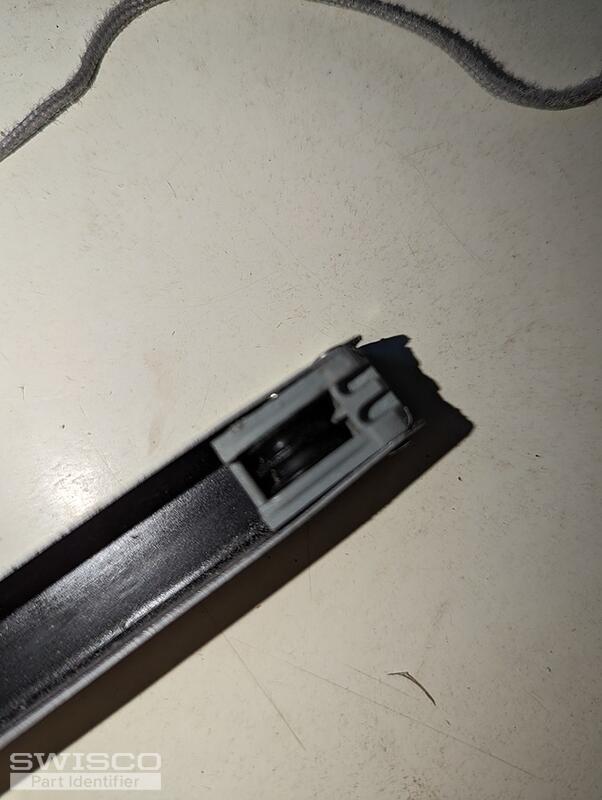

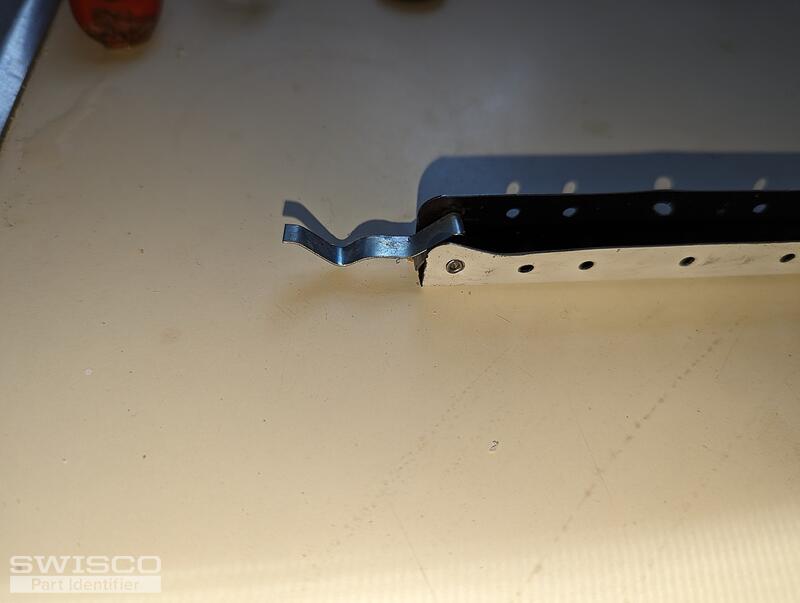

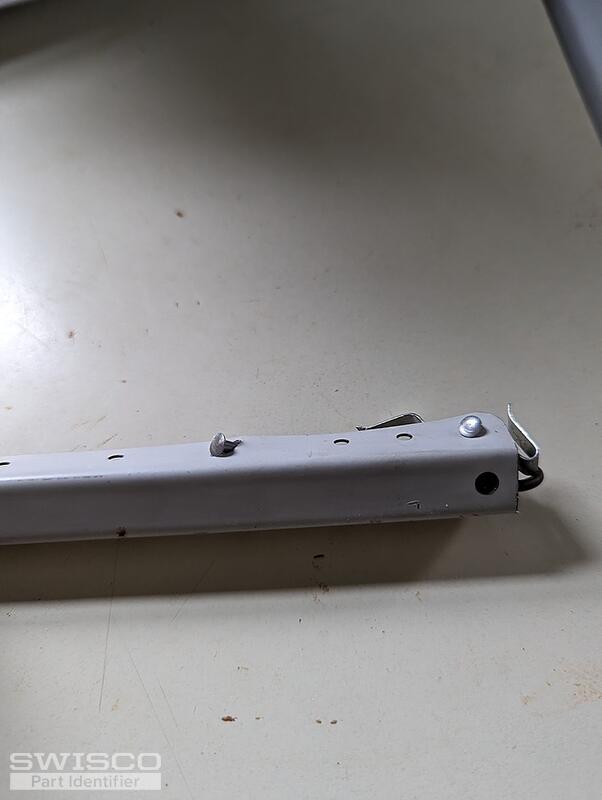

4 user uploaded images
8 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help but, unfortunately, your balance is too damaged to identify. We would need to see an intact balance removed from the other side or an identical window in the house to compare to our inventory. Thank you!

Contractor from Kimberton
I'm not sure what more information is needed to identify this part but I hope this helps. Thank you.

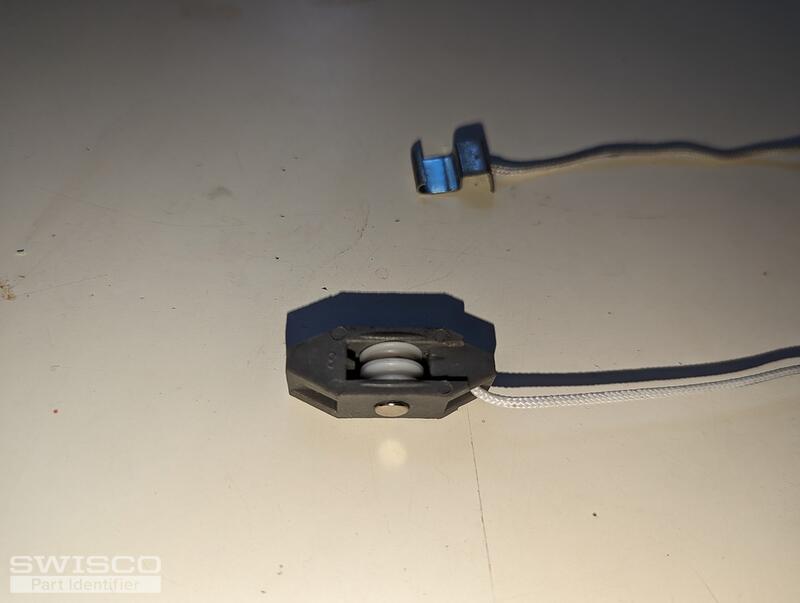

4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

The base of your balance appears to be the S770-30 (30D) but the cord fitting looks like a match to the 15-170. Your balance also has a rivet at the top that is normally used to accommodate an S-clip like the 19-029 or 19-030. We can supply these balances with the necessary configuration but it will need to be a custom order.

Dimensions for 15-170
Dimensions for 15-170

We'll send over an order link and price quote for two balances. Take a look and let us know if you need anything else. Thank you.

Contractor from Kimberton
Hi again! thank you for the helps thus far. I'm not quite sure how this is secured inside of the window track, with the clips if that's the case. To me it seemed as I had disassembled it, it was just compressed in, without a screw at the top because that's obviously where there is a spring in the way. Looking forward to getting the write assembly and parts so I can go ahead with this project.
Casey
Casey from SWISCO
SWISCO
Expert

As we mentioned, your balance appears to have a rivet at the top to attach an S-clip like the 19-029 or 19-030. The S-clip hooks into an opening in the window jamb to install the balance, while the 15-170 clip would attach to the pivot shoe below the balance. Just let us know if you have any other questions.

Contractor from Kimberton
THANK WAS FANTASTIC!!!!
Thank you so much!!!
Window is back in action!! Excellent work, thank you for the fast responses and hard-to-find-ware!!
Casey
Casey from SWISCO
SWISCO
Expert

That's great to hear! We appreciate your business and please let us know if you need anything else.
