need replacement sash

Quick Learner

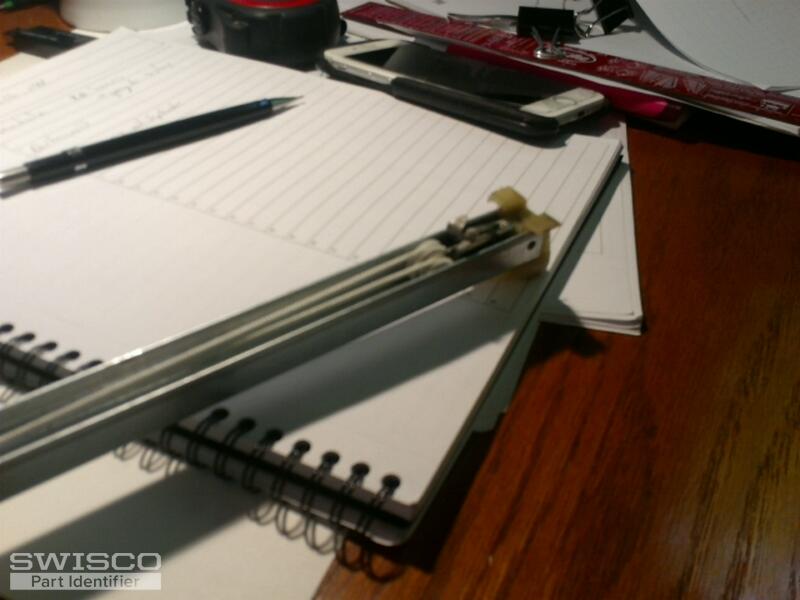

The sash I removed looks like a S380 or S385 - but I really cannot tell, and I cannot tell the difference. The channel is 1/2" X 33"
3 user uploaded images
8 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thanks for reaching out to us. The difference between the Series 380 and Series 385 is the depth of the bottom shoe. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. You'll have to measure as shown below to determine the best match.

Is there a stamp on the metal channel that we could see? Can you also show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner
The shoe is 1-3/32"

The channel is stamped "32 4 HP CALDWELL" - but this doesn't show up in a photograph.

See also the photo of the pulley end. As you can see, it is broken.
Emily
Emily from SWISCO
SWISCO
Expert

In that case, you'd want the S385-33 with the 3240 stamp option. I can't be 100% certain this balance will work for you without seeing the spring connection, however. We'd have to see an undamaged version to be sure. We've come across balances that are almost identical to what you have here but with a specific clip that connects the spring to the pulley mechanism that makes our stock balances incompatible.

Quick Learner

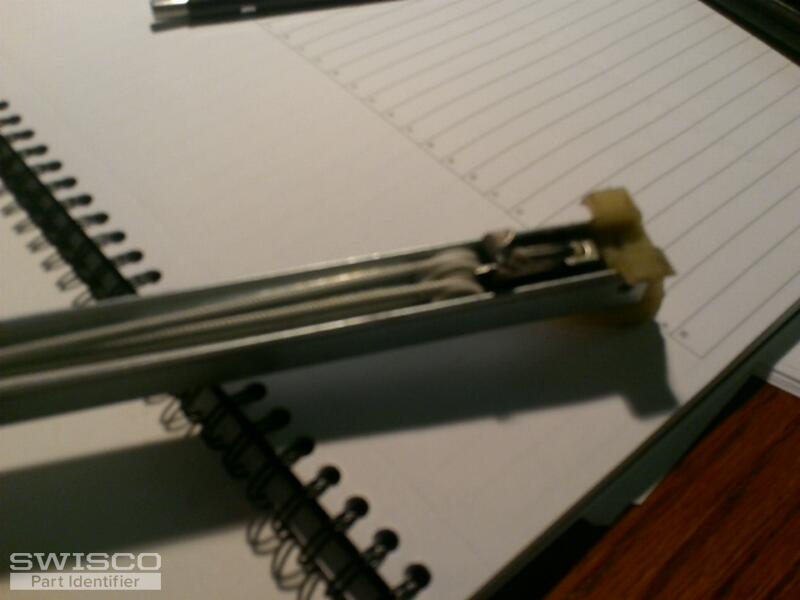

this is the undamaged one
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

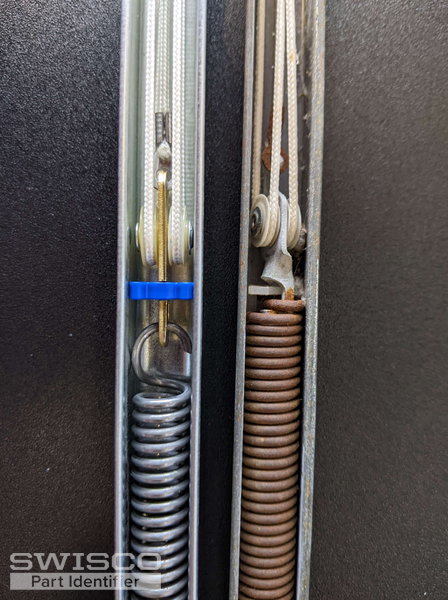

I'm afraid this doesn't show us what we're looking for. We have to see the middle portion of the balance where the spring is connected. You can use the image below as a reference. If yours looks like the one on the right, you can use the Series 385. If your balance has a clip like what's shown on the left, this would have to be a custom order.

ref
Quick Learner
It's a 385 - thanks for your help. I will get that ordered.
Emily
Emily from SWISCO
SWISCO
Expert

Happy to help. Good luck with the repair!
