Dave Sr. from SWISCO responded:
March 14, 2018
Thanks for posting! I'm not sure if we can provide anything specifically, but maybe I can still help, if just a little.

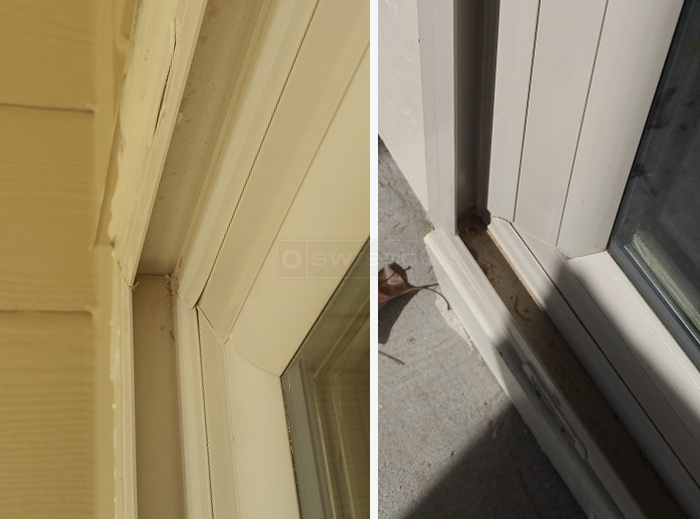

You mentioned in your post that you have someone to manufacture the screen door. See if they will give you a section of the screen frame they will be using and check to see it will fit into the upper U-channel of the door frame. That should be something they can provide, if they're making the door itself. As for the bottom rail, take a look at our 80-111. This should work well for the bottom track. What I've done in the past when measuring for a new screen door was to put the tape measurer up into the top U-channel and down to the top of the bottom rail. Then I'd deduct maybe 1/8" for play. That said, it's best to have Georgia Screen do the measuring so they will guarantee the fit. |
