need vinyl exterior window bead for Best Built Windows

A home owner from Dillingham Alaska says:
October 27, 2017
I had to replace glass in some exterior white vinyl windows.
In the cold I cracked some of the bead and I'm seeking replacement.

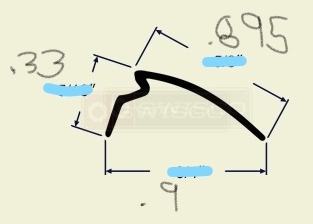

The photo supplied is very very close to the profile I need.
I tried to cover the measurements shown in the original image and write in the measurements I have taken from the bead of my windows.

These windows were bought and installed June 1999 and came from a company named

Best Built Windows in Spokane Washington - I cannot locate them now.

I hope you can help me.
Thank you - I think I have obtained some screen door repair parts from your company in the past.
Snap-in glazing
Profile picture of Paul
Paul from SWISCO responded:
November 2, 2017
Please look and compare your glazing bead to our 55-197 snap-in glazing. The expose face is not as wide as yours, but we believe it will work for your sash. We suggest removing all the snap-in from one sash and replacing it with the 55-197 and save what is good for furture repairs.
A quick learner from Dillingham Alaska says:
November 3, 2017
hmmmm interesting. I will try a 3 foot piece - not too expensive to try but comparing the width of 55-197 at 11/16 (.578") is LOTS shorter than the .89" width of my current bead. I wish I had measured the distance from the glass face to the bead groove as that is the key here - the current bead gives the appearance of 1 inch quarter round. Thanks as it does take a long time to search this out. So I will try and see how it goes. Many Thanks.
