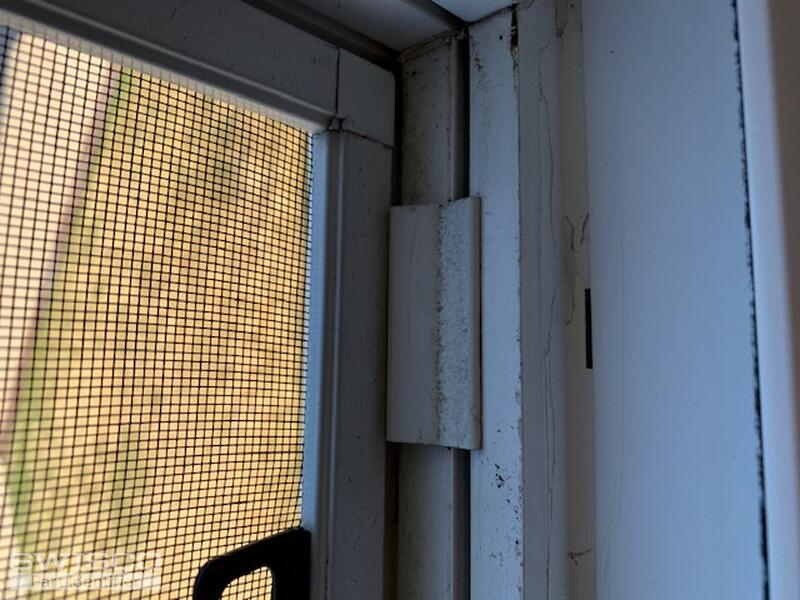

need window clips

I am afraid we don't carry this exact screen clip. See our 70-176 instead. This is a Slip-On Clip that can work with a variety of windows. Please compare and see if you think this could work for you.

We don't have a photo of this clip installed currently, but I will do my best to describe what you want to do. I actually have these in my sunroom at home and I think they work great.

With the screen removed you want to install the 70-176 clip on the outside edge of the window frame on the right side (looking out). Then put in the left side of the screen in first first, bending the pocket on the clip. This installed the screen frame into the clip allowing the clip to go back in place.

Another idea would be to put the clip on the screen frame first and then install the screen in the right side of the window, slipping the 70-176 in the frame before pushing the screen into the left side. I haven't tried this yet but it should work more or less the same.

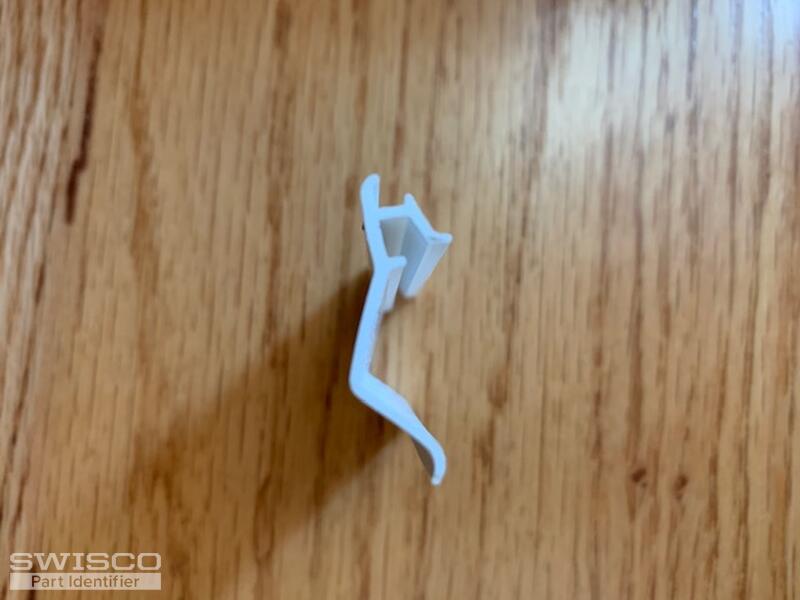

Ultimately, these aren't complicated parts. The plastic clip has sort of an S shape, so one half of the S snaps onto the window frame and the other half snaps onto the screen frame. The reason it looks so different from your original is because it's made to take so many different styles of frames.
