parts for casement window truth hardware

Home Owner from Kansas
Hello,
Would appreciate the help. From searching around I believe these are truth window hardware. Needing to replace a lock, operator, bracket that the operator attachs to on the window, and the piece that connects the window to the rail that slides back and forth in the rail groove.
1) Casement Lock
locks have the numbers 31402 A or 31401 A
see picture with diagram of my measurements.

2) casement operator
found the truth icon with number F-1040-16  possibly another number on the end "1" was hard to tell.

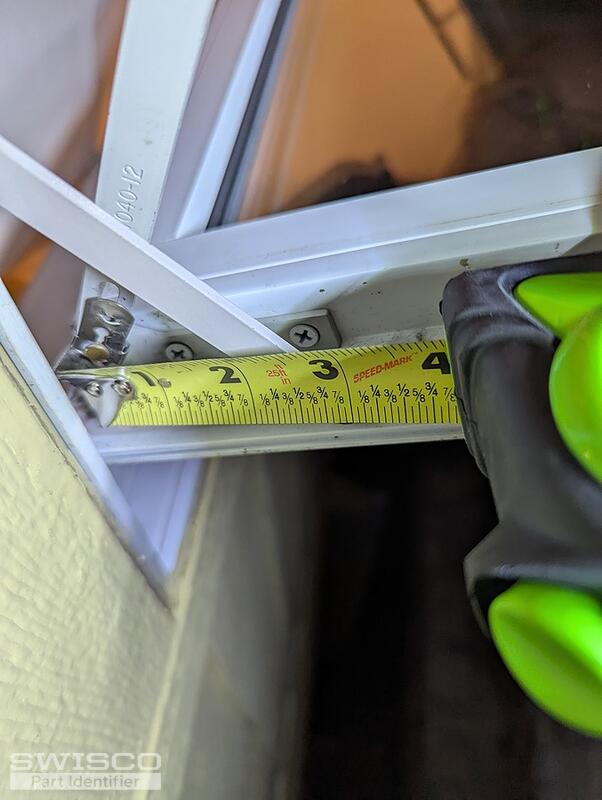

more measurements in picture attached.
3) operator bracket?
roughly about 3in. that operator arm connects to to move the window
4) window groove slider?

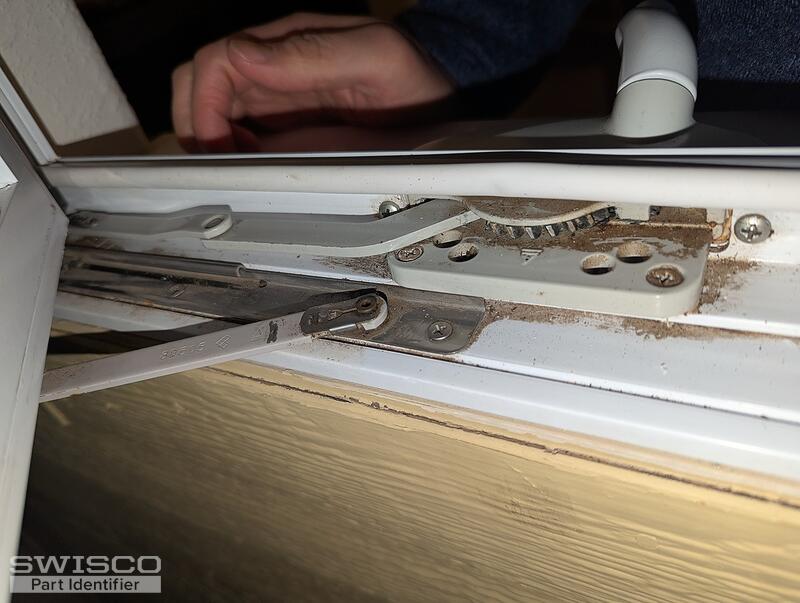

picture with metal with black plastic covering that is attached to the window that goes into the rail on the frame for it to move. i didnt get measurements but can, any idea what part this might be?
5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into your replacement options but we'll need more information to get started. First, we'll need to see your actual casement lock uninstalled to narrow down your options.

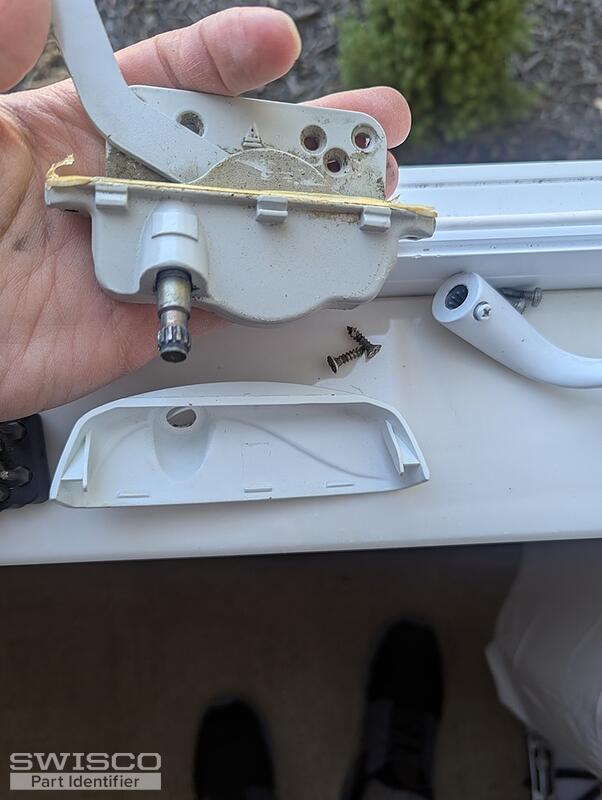

As for the operator, please show us a clear photo of the base and handle. It would also help to know the overall width of the base and mounting plate that sits in the cutout in the sill trim. We'll also need to see an unobstructed view of the bracket.

The track slider is not available separately but you may be able to use the 36-048 hinge set as long as the 10" base matches yours. Thank you!

Detail of 36-048
Detail of 36-048

Home Owner from Kansas
Thanks Casey!

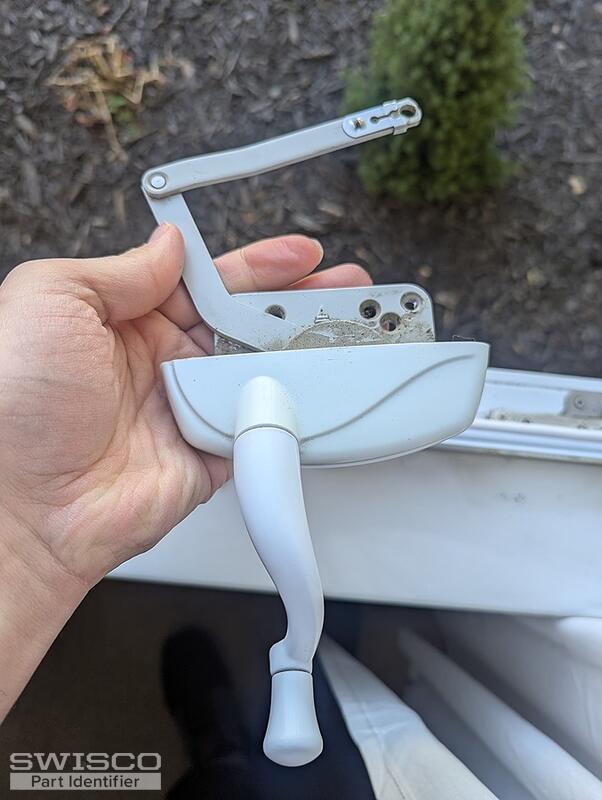

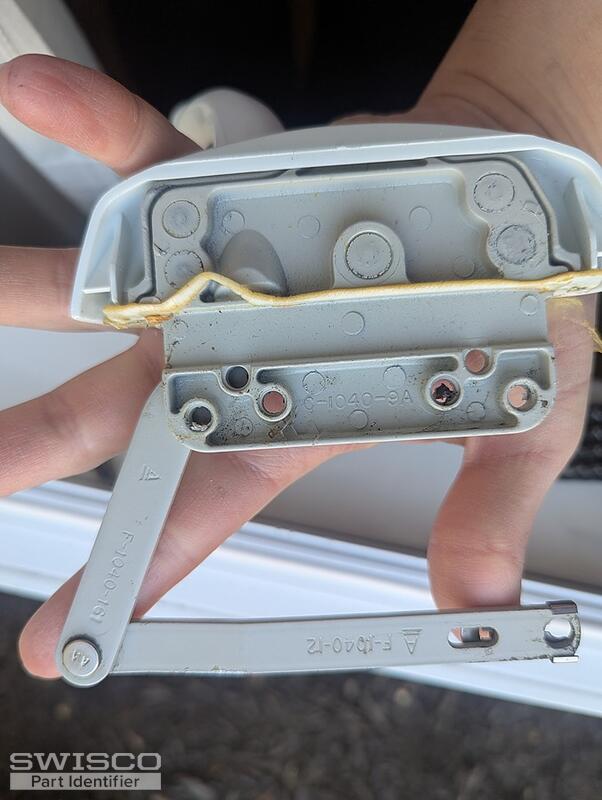

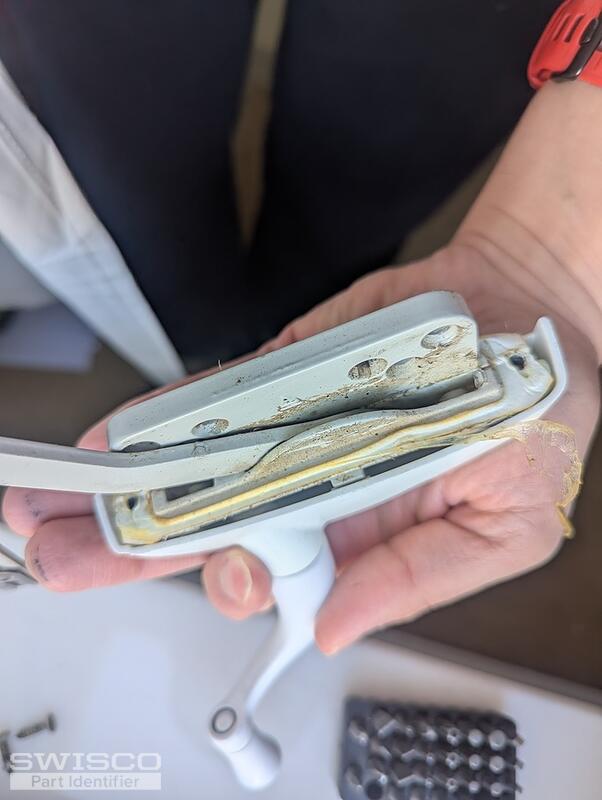

attached 4 more pictures of the operator. there are 3 differrent numbers on each one.F-1040-12 on outer arm
F-1040-16 (maybe an additional 1 on the end) on first arm
C-1040-9A on the main operator body

4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Unforutnately, your additional photos confirm that your operator has a configuration that differs from any of our standard Truth replacements. The size and shape of the base is the main concern. I'm sorry we won't be able to assist with this part of your repair but please let us know if you have any other hardware questions.
