non tilt channel balance 26 4 FX CMC 11

Start a new Discussion

Quick Learner from a house

Sep 20, 2023 5:54 pm

which non tilt channel balance model do I need to replace this?

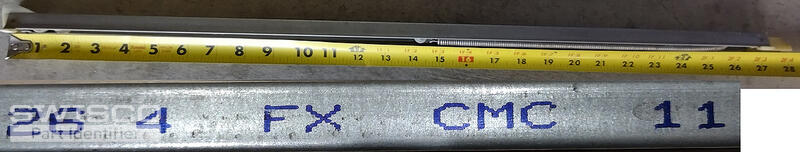

27 inch long

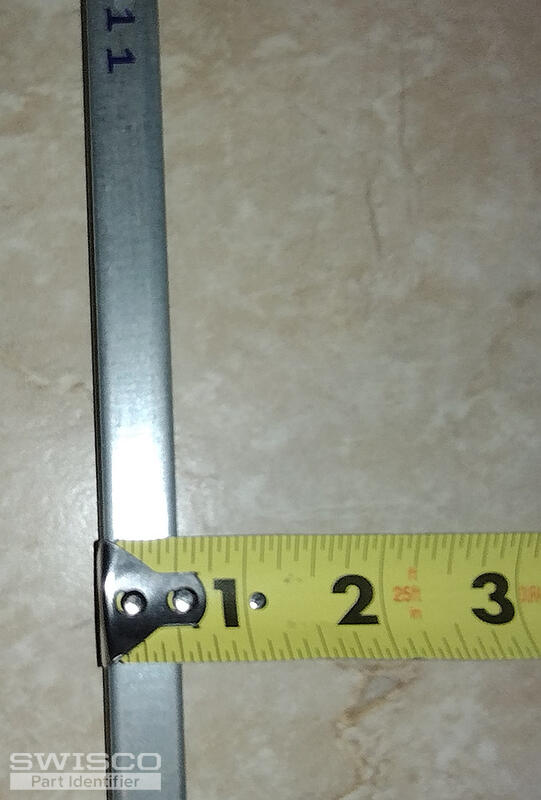

1/2 inch wide
code
26 4 FX CMC 11

5 user uploaded images

4 Replies

Lauren from SWISCO

Sep 21, 2023 8:41 am

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 27" balance with a 2640 stamp option. Please review and let me know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from a house

Sep 24, 2023 7:31 pm

with this image I think it's the 1-3/32" thanks

Lauren from SWISCO

Sep 25, 2023 7:44 am

Thank you,

Please review the S385-27 channel balance with 2640 stamp option. Let us know if you have any additional questions!
