non tilt window balances

A home owner from Palm Coast Florida says:
balance is 27", window is 30lbs, marking on balance 26D please let me know what to order. I need 2.

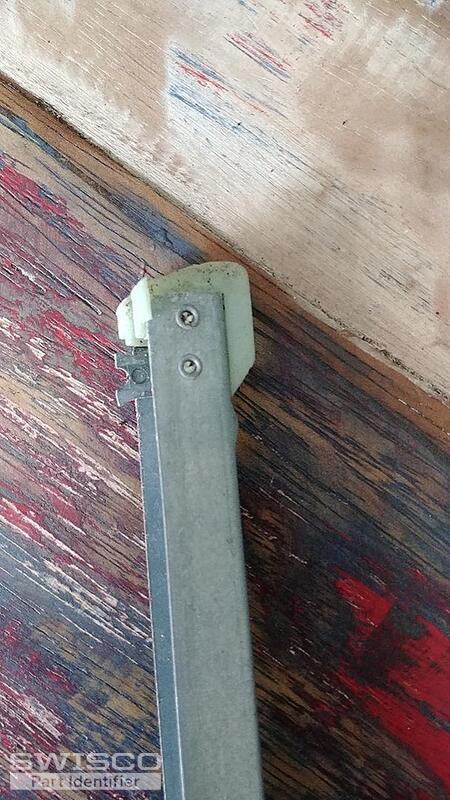

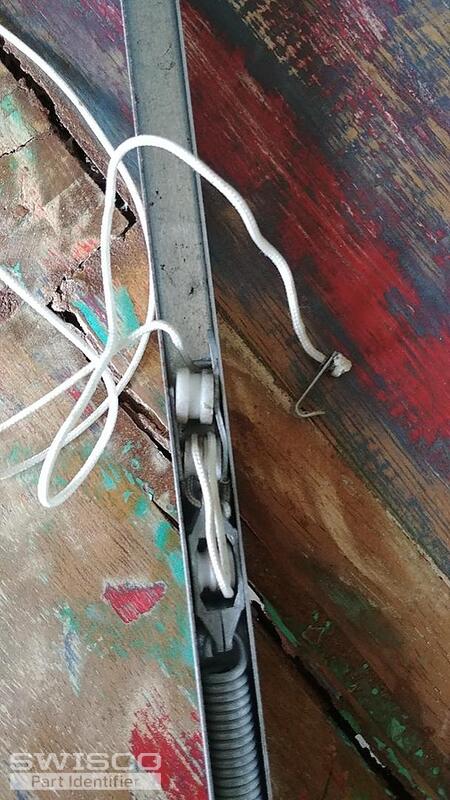

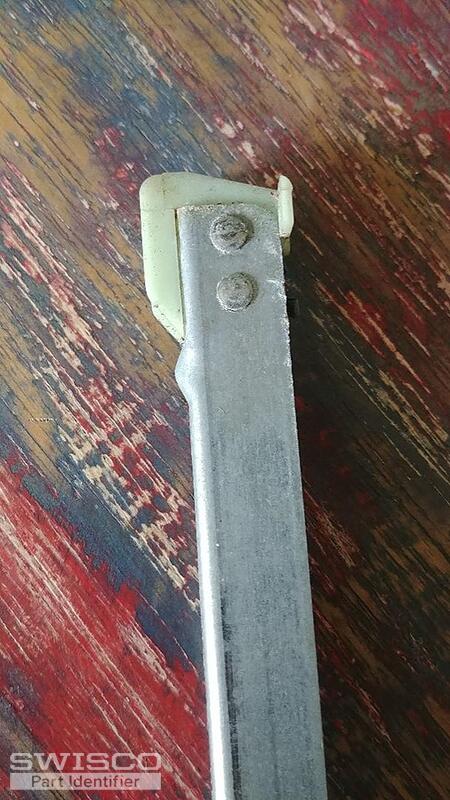

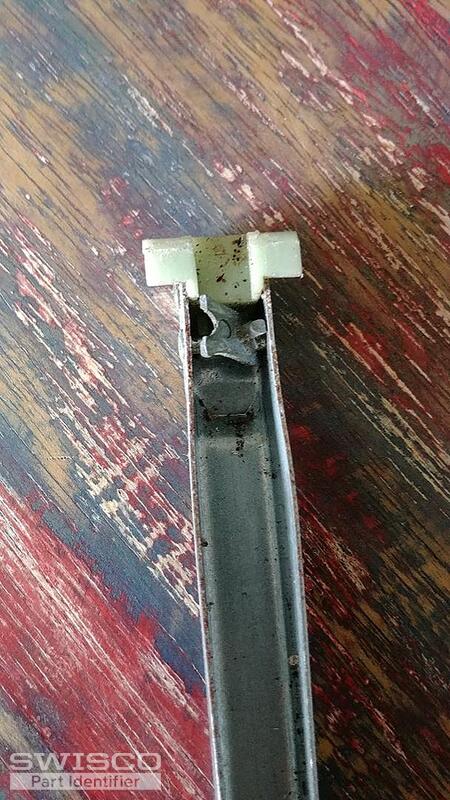

Thumbnail of the uploaded file named Swisco Image 3.jpg
Thumbnail of the uploaded file named Swisco Image 2.jpg
Thumbnail of the uploaded file named Swisco Image 4.jpg
Thumbnail of the uploaded file named Swisco Image 5.jpg
Thumbnail of the uploaded file named Swisco Image 8.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello there!

This looks like you have have either our S380-27 or S385-27 channel balance, depending on the depth of your bottom shoe. The Series 380 has a 1" bottom shoe, and the Series 385 has a 1-3/32" shoe. Measure as shown in the image below to determine which one you'll need.

Have you ever had any trouble with opening or closing your window? I ask because your stamp indicates it can support a sash weighing 19 to 26 lbs. Your 26D stamp wouldn't be strong enough if your sash is 30 pounds. You may want to triple check the weight to confirm. If it's indeed 30 pounds, you can go with either the 2650 stamp option or 2660 stamp option. The 2650 option will support a sash weighing 26 to 30 lbs and the 2660 option supports a sash weighing 30 to 33 lbs. The decision is ultimately yours.

Let me know if you have any questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from Palm Coast Florida says:
Thank you for all your help will order the S380 .
