not sure the type of balancer

Quick Learner from Minnesota
22c BSI 22 inches long. please see attachments. no name on vinyl window.
2 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

We'd be happy to help ID your balance but we'll need more information. Can you show me a picture of whatever is at the end of the cord? And are there any attachments that belong to this balance? If there are, we'll need to see pictures of it removed from the window.

Quick Learner from Minnesota

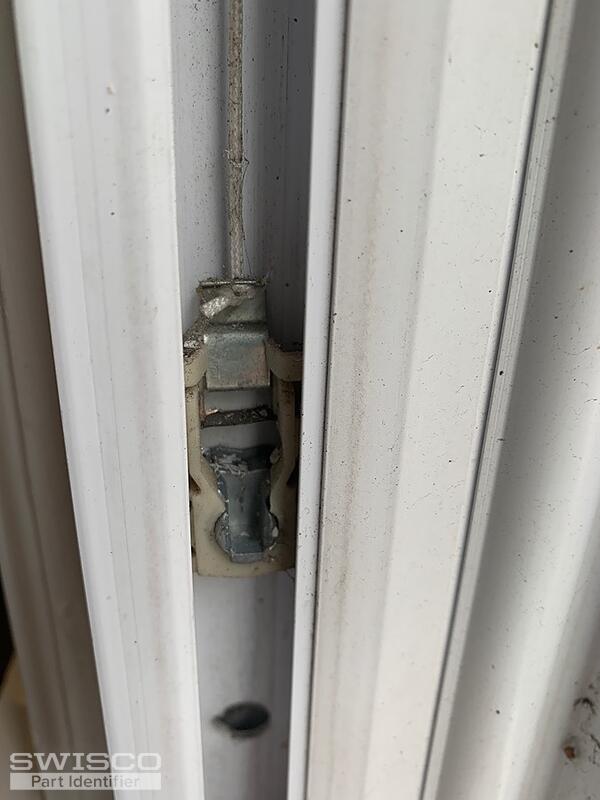

Just took a couple of pictures of the other balance in a working window. Is this what you needed?
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Yes, thank you! The hook that connects to your pivot shoe looks like a match for our 15-170 clip but this isn't a standard option. That means this balance will have to be a custom order. To outline it for you, we would use our S770-22 with a 22C stamp option as the base, then we'll we'll remove the terminal clip it usually comes with and install the 15-170 instead. In addition to this, a rivet would be installed on top to use an s-clip like the 19-029. Does that sound good to you? If it does, let me know how many balances you'll need and I can draft a price quote from there.

Quick Learner from Minnesota
sounds good please order them. Need 2
Emily
Emily from SWISCO
SWISCO
Expert

Great, I'll email you a purchase link and price quote for 2 of these balances that you can use to place an order on our website.

Just note, the 19-029 S-clips are sold separately. If you need the pivot shoe as well, see if the dimensions for our 15-169 match your original hardware.
