Nylon slide bolt

Quick Learner from Norman, OK

Feb 22, 2018 1:58 pm

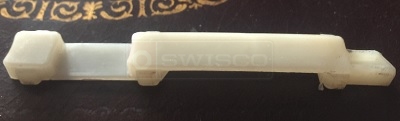

I am in need of a nylon slide bolt where the thickness is 1/4", notch on the end is 15/32", height not including tabs is 15/32", including tabs is 19/32", it is 4" in length.

4 Replies

Dave Sr. from SWISCO

Feb 27, 2018 11:06 am

Please take a look at our 91-054 slide latches. The dimensions are very close between the two parts. Do you think these could work for you?

Quick Learner from Norman, OK

Feb 27, 2018 11:16 am

I was looking at these. Do you know if that height includes that additional tab on the top and bottom or is just the height of the body without those tabs.
Kyle

Dave Sr. from SWISCO

Mar 1, 2018 12:53 pm

Yes, the 5/8" measurement includes the bumps at the top and bottom.
