old locks on patio and screen doors

Home Owner from Kihei, Hawaii

May 4, 2022 10:05 pm

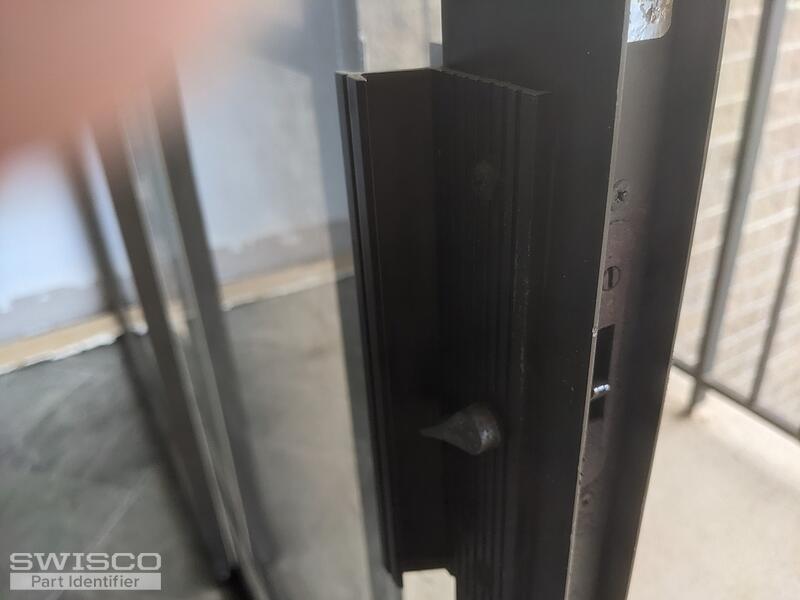

I do not see any numbers or part names. It could be that I do not know where to look for them. By googling I was not able to find exactly same looking locks and latches. Want to replace because they are rusty

5 user uploaded images

5 Replies

Casey from SWISCO

May 6, 2022 8:46 am

Hello,

We'd be happy to look into this for you but we would need to confirm the distance between the center of the installation holes of both handle sets to compare to our inventory. Thank you.

Home Owner from Kihei, Hawaii

May 6, 2022 1:51 pm

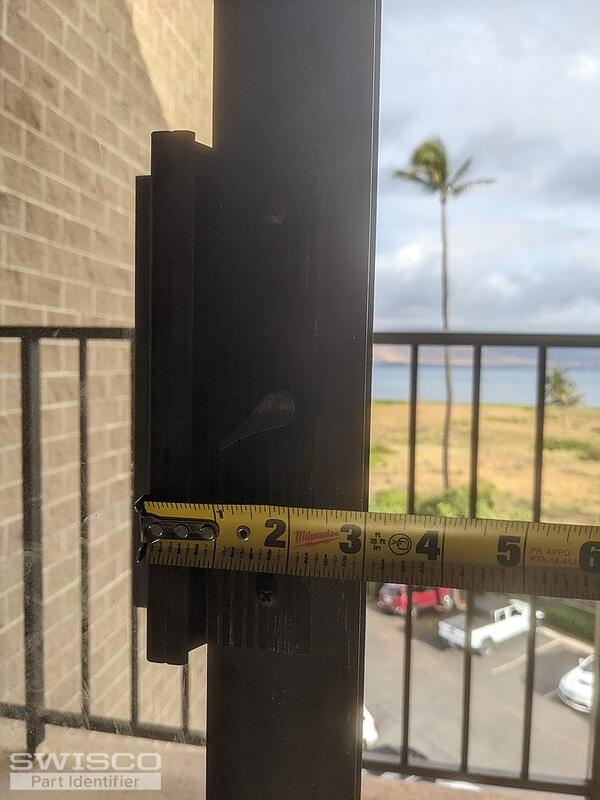

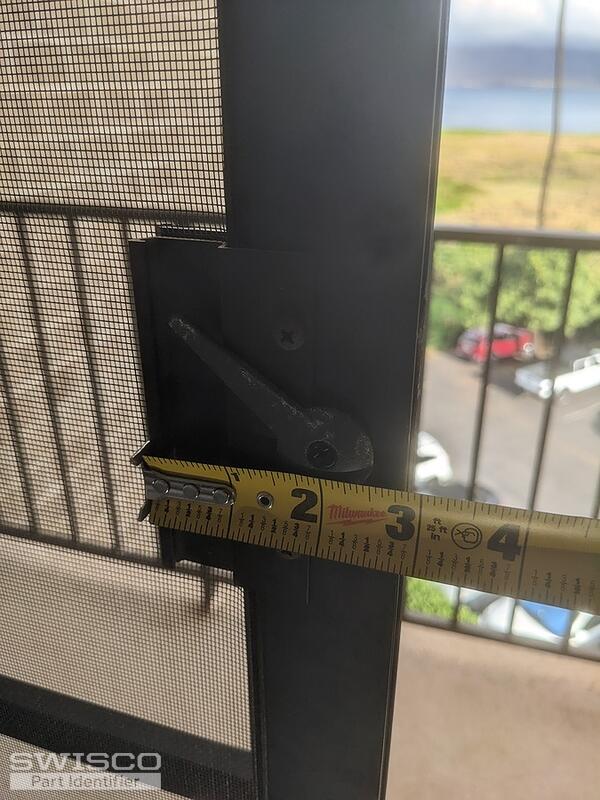

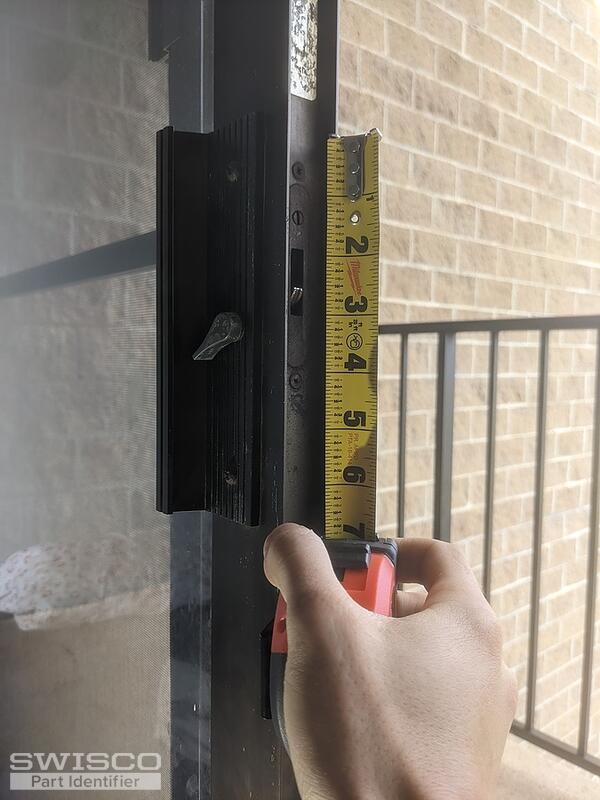

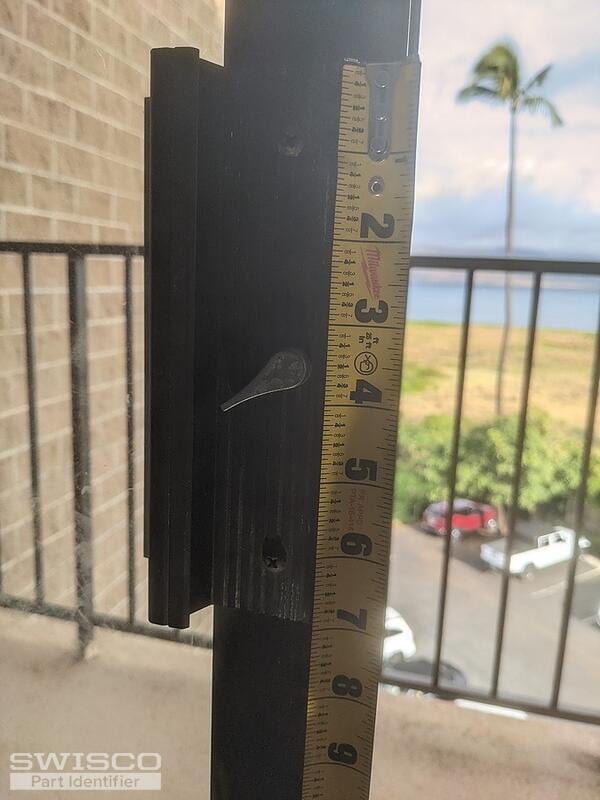

please find more photos attached, let me know if these are not sufficient, thank you for your help!

4 user uploaded images

Dave Sr. from SWISCO

May 10, 2022 8:12 am

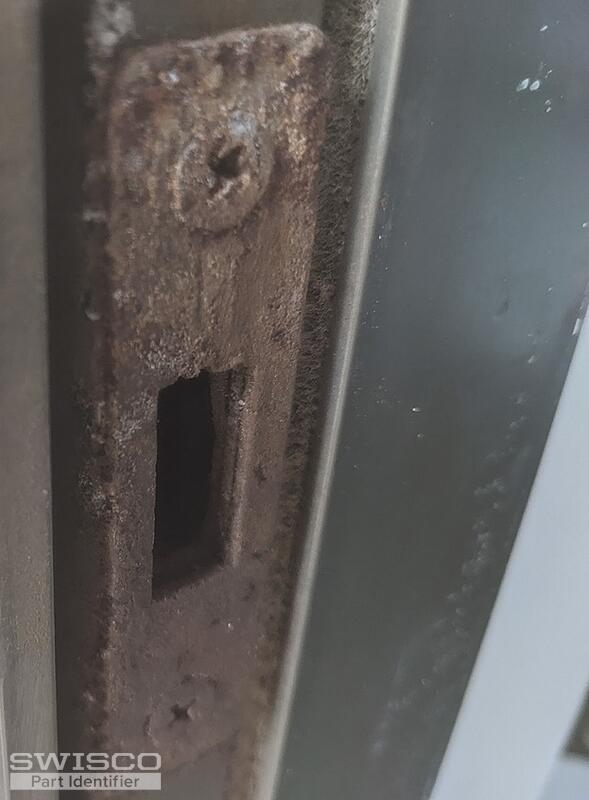

Your mortise latch appears to be a match to the 82-218. We do carry a handle set similar to yours, the 82-033, but the mounting holes are at 3-15/16" where yours looks like it is closer to 5".

I could not find a handle with the same mounting holes as yours, so you would need to drill new holes to install something like the 82-030. Take a look at this assembly, along with the rest of the related parts and videos.

Home Owner from Kihei, Hawaii

May 10, 2022 2:21 pm

Thank you!
