old miter screen frame corners

Question

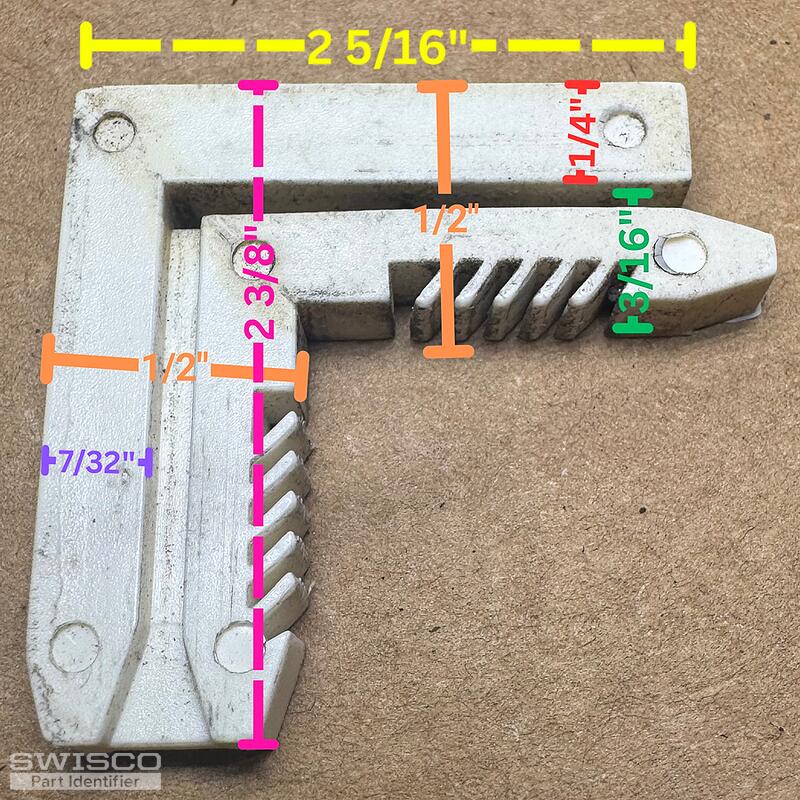

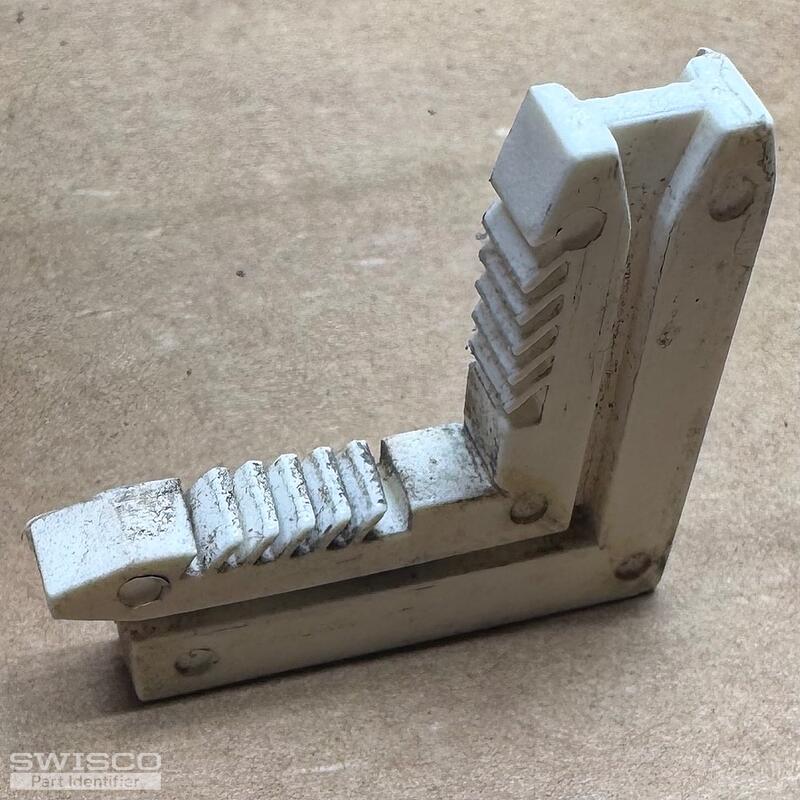

I'm not sure what else would work in place of these.. measurements are in the pictures.

Jasmine · Accepted Answer

Hey there,

Thanks for writing in! This Miter screen frame corner was discontinued a while back. In the past, we've used the 95-002 3/16" x 3/16" Capital Window Panel Corner to complete the repair. It is a self-locking corner.

The double leg design of the original corner served the purpose of keeping the "slide latch" in the screen frame. That said, if you do not have a screen latch, you should be fine with installing just the 95-002 corner in the frame. In the event you do have a latch, our senior experts suggest using the 91-176 to keep the latch in place.

You'll need to examine the screen frame and its existing components to determine what is needed for the repair.

Alternate image for 95-002
