old single pain aluminum windows

Start a new Discussion

Quick Learner

May 12, 2020 12:39 pm

These plastic clips hold the bar that opens and closes the windows in place.

no name or number on windows

1 user uploaded image

4 Replies

Tom from SWISCO

May 14, 2020 12:45 pm

I'm afraid I don't recognize this piece. Could you pull your camera back a little and take a picture that gives me a little more context? If you have an undamaged version of this part that we can see, that would also be helpful.

Home Owner from pa

May 16, 2020 5:03 pm

3873 - shows good clip with tab to hold bar in place
3874 - shows bigger view with good clip
3875 - shows bigger view of good clip

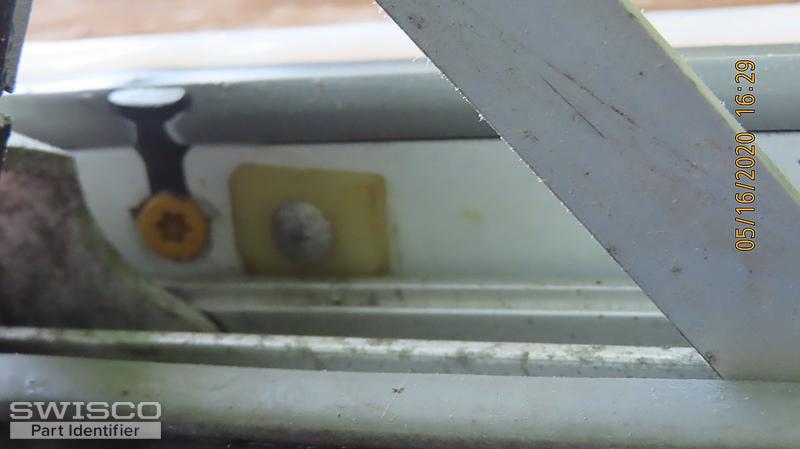

3876 - shows bad - part of clip that holds aluminum in place has broken off

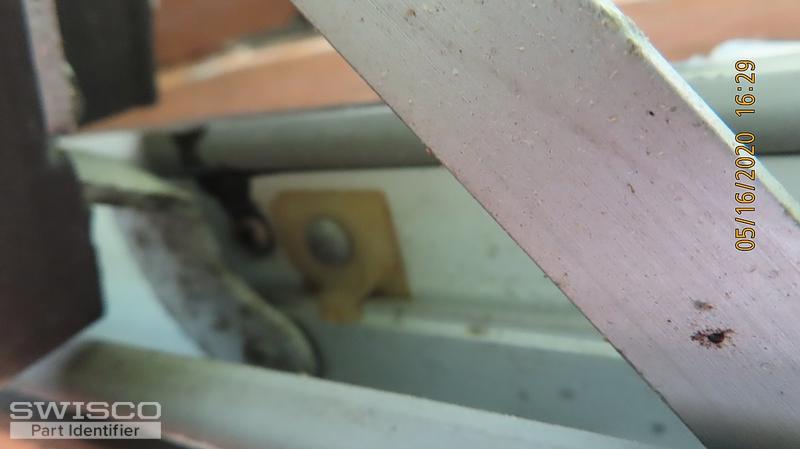

3877 - another view of good clip

5 user uploaded images

Dave Sr. from SWISCO

May 19, 2020 7:23 am

I couldn't fins this part, either. However look at the 36-077 bar guide. I would suggest using this and adapting it to your window. Looks like you might have to cut off the front lip and use a 3/16" pop-rivet to attach it to your window frame, but if you're handy then I think it could be done. What do you think?
