Glazing Bead for Older Home

Start a new Discussion

Handy Person from Texas

Jan 25, 2019 10:12 am

Probably 20+ years old. Need replacement. No markings.Gray vinyl.

1 user uploaded image

6 Replies

Paul from SWISCO

Jan 25, 2019 11:12 am

Greetings. Could you to flip your snap-in glazing over and give us a picture of its end profiles? Providing dimensions would also be most helpful. Thank you.

Handy Person from Texas

Jan 25, 2019 5:14 pm

The longest side is about 0.5 inches wide (left curved side)
The slot for the glass is about 9/32 inches wide at its base (horizontal).

1 user uploaded image

Paul from SWISCO

Jan 29, 2019 9:59 am

Hm. I'm sorry, I'm afraid I can't make out how this snap-in works. Could we see it installed in the window sash? That may give us a clue on what could work as a replacement. Many thanks.

Handy Person from Texas

Feb 14, 2019 1:46 pm

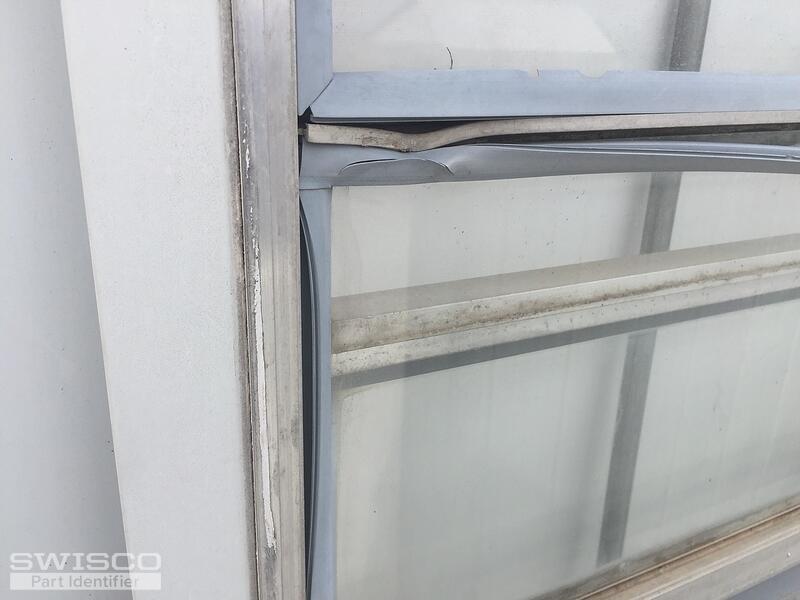

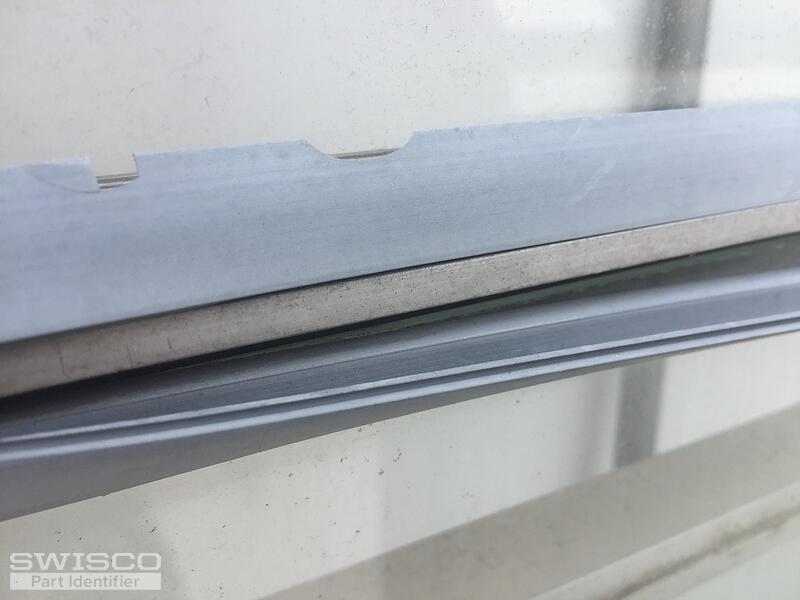

The small 1/8 inch channel appears to catch the near edge of the window frame - see attached.

3 user uploaded images

Paul from SWISCO

Feb 15, 2019 9:44 am

Thank you for the additional photos. We feel you can use our 55-196 gray vinyl snap-in for your window sash. Please compare it to your sample and see what you think!
