operator for window

Quick Learner from Niantic, Connecticut
Sep 1, 2011 10:07 am
Attached is a picture of our operator. Would like to replace but need assistance.

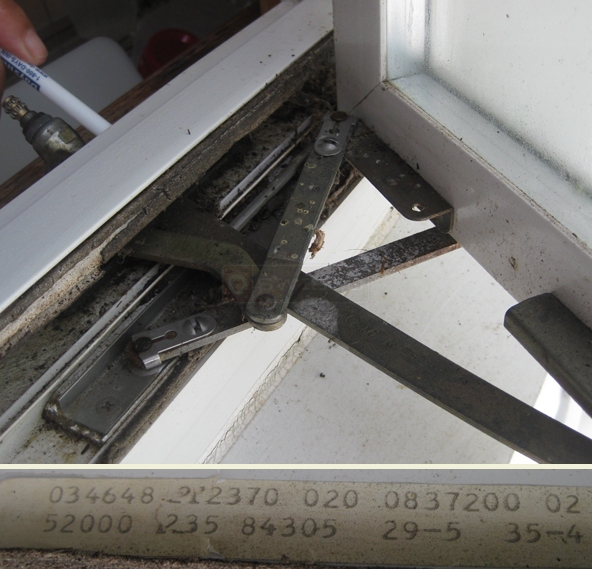

User submitted photo of window crank operator.
4 Replies
Tom
Tom from SWISCO
Sep 7, 2011 10:12 am
SWISCO
EXPERT
Thank you for posting and submitting your photos.

Begin by taking a look at the 39-031 and 39-032 EntryGard Dual Arm Operators. They could possibly work with your application.
Quick Learner from Niantic, Ct.
Sep 7, 2011 3:47 pm
Supplies arrived and it took my brother and I about 30 minutes to install!!!! It is perfect.

However, I did make a mistake in ordering 39-114L Long Crank. the spline diameter is smaller on the handles I received. These cranks are on Anderson Windows not on Nuprime. We are thinking we need the 39-286, but not sure.
Will attach images!!!

Is it possible for my husband to drop by and switch the cranks at your distribution center. He travels that area often!!
Thank you so much. I am thrilled with your service!!!
Niantic Home Owner

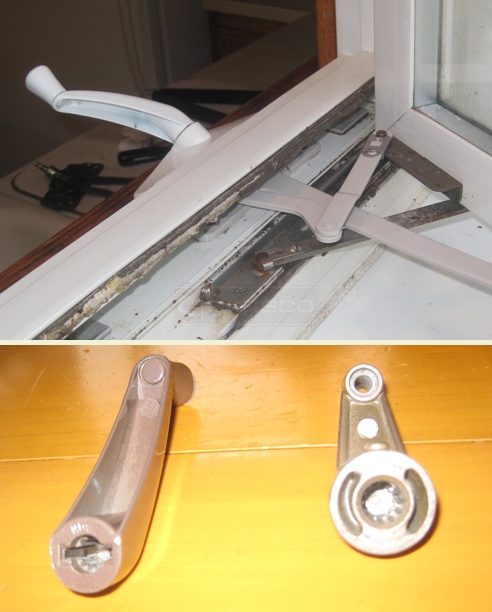

User submitted photo of crank handle and operator.
Tom
Tom from SWISCO
Sep 8, 2011 7:46 am
SWISCO
EXPERT
Can you give us the diameter of the gear bore on your handle?

You'll notice the gear bore on the 39-286 measures 3/8" in diameter.
Quick Learner from Niantic
Sep 8, 2011 10:15 am
I didn't mention that the crank on the right is our existing crank-3/8. The crank on the left is what I ordered, and will need to exchange. Thanks!
