outside screen frame cornor

Home Owner from CA
Sep 22, 2023 4:59 pm

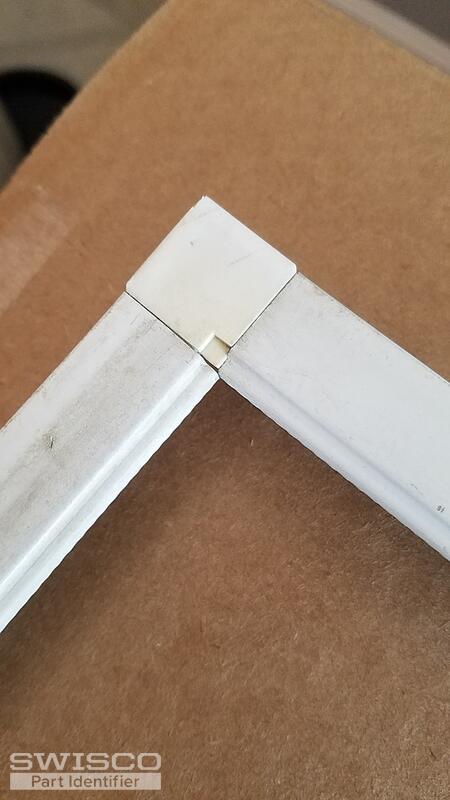

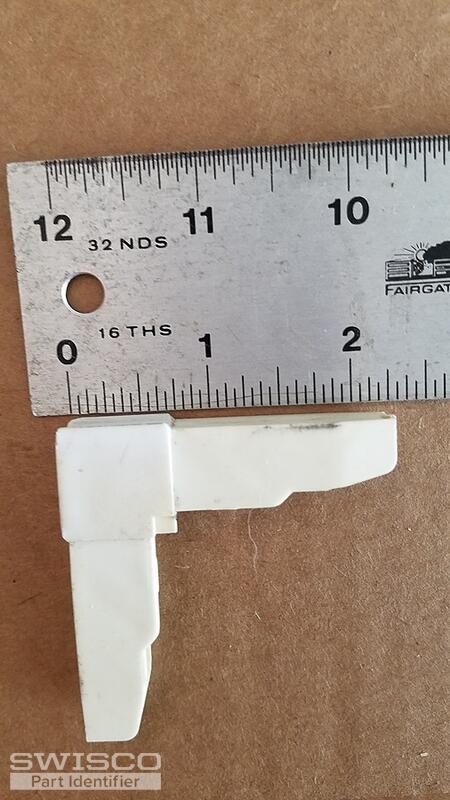

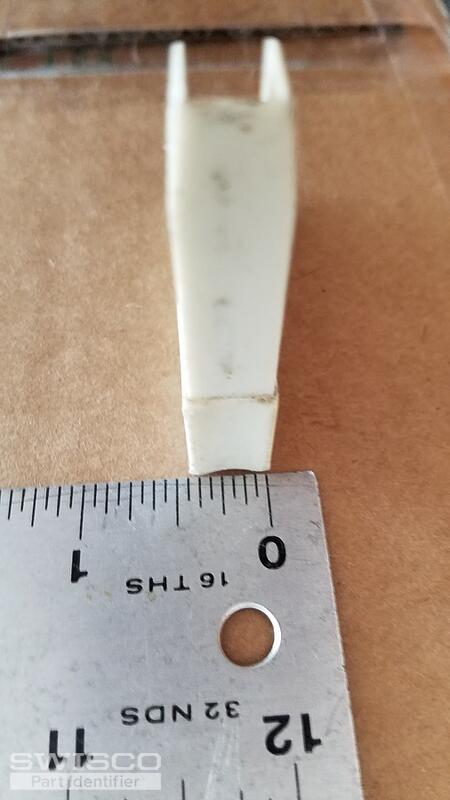

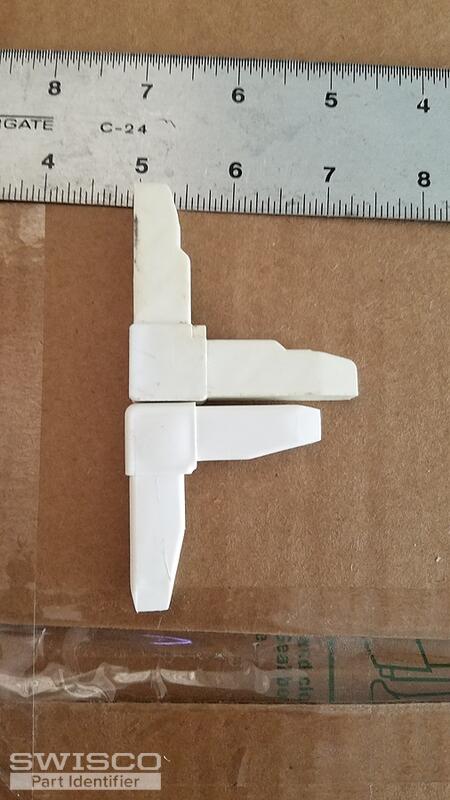

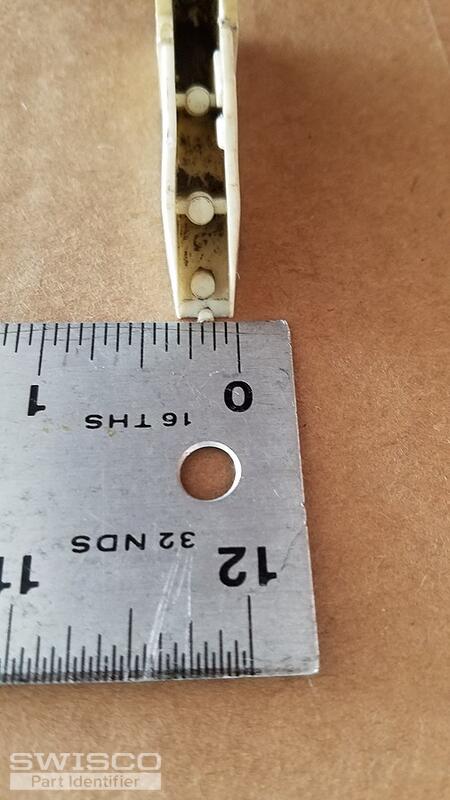

Window screen corner is from a Milgard window frame approximately 20 years old. I purchased part number 95-266 but as you can see from the last photo it is smaller in both length and thickness. Do you have a replacement part?
20230922_133731 20230922_134024 20230922_134040 20230922_134057 20230922_134151
5 user uploaded images
1 Replies
+ Add a Comment
Dave Sr.
Dave Sr. from SWISCO
Sep 25, 2023 3:00 pm
SWISCO
EXPERT

The 95-266 does appear to be the same shape as yours, but looking at your measurements it looks like you could use the 95-052 corner. The shape is a little different than yours, but the dimensions are 11/16" by 7/16" thick. Take a look at it on the website and compare the dimensions with what you need for your screen frame.

+ Add a Comment
Products and resources found in this discussion
Square Cut Corner, White
Square Cut Corner, White
95-052
$0.37
11/16" x 3/8" Outside Screen Frame Corner
11/16" x 3/8" Outside Screen Frame Corner
95-266
$0.55
