pan am right side bronze window opener .

A quick learner from Florida says:
Hi, the screw which connects the operator arm to the window arm ??? has broken off and I cannot unscrew the head it is rusted on.The remainder of screw is in arm. No part numbers I see a 91 on pivot head Please, I need new part and connecting screw and strength to take off rusty head

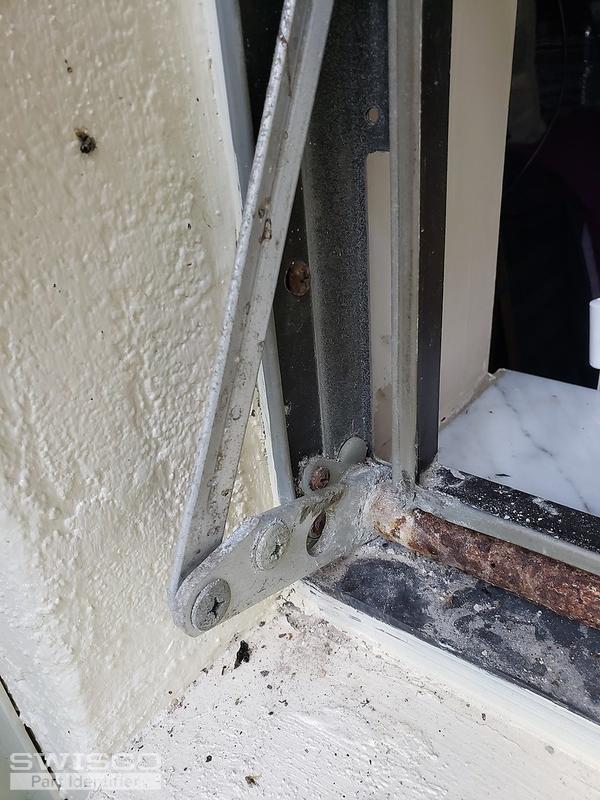

Thumbnail of the uploaded file named 15899060842463683231026153378341.jpg

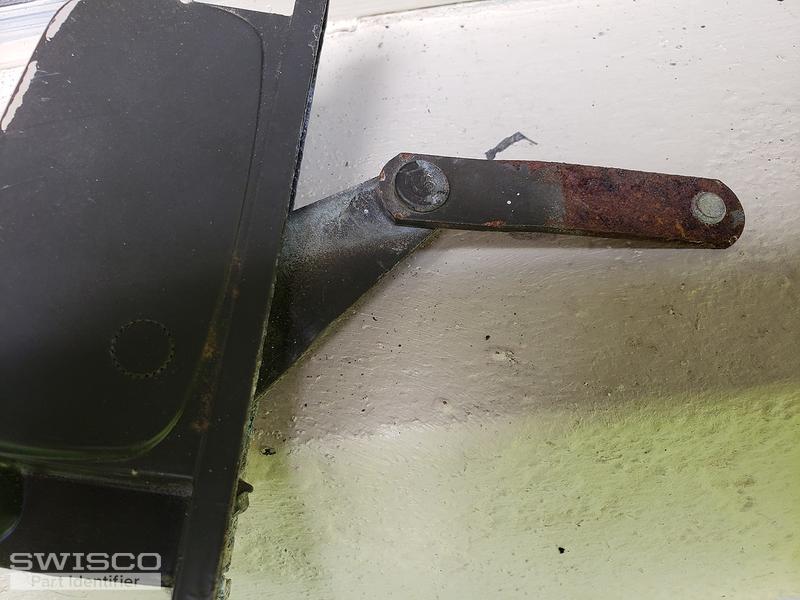

Thumbnail of the uploaded file named 15899061748908530927301865483467.jpg

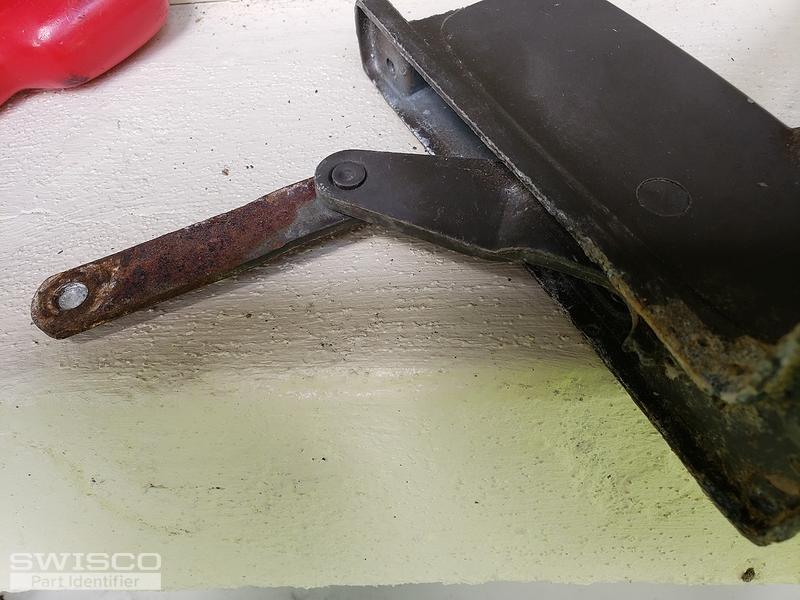

Thumbnail of the uploaded file named 15899062135372897986898538128623.jpg
Profile picture of Bob
Bob from SWISCO responded:

Pan Am windows often use our 39-016 and 39-017 Pan Am Operators, but not always. One of the key things that determine what awning operator you need is the mounting hole pattern: how many are on top and bottom of the operator. I can't tell this from your photos, so I'd look over the pictures we show for this set to confirm these match what you need. For new fasteners, I recommend our 33-067 shoulder screw, 33-207 bushing, and 33-081 installation screw.

A quick learner from Florida says:
please advise this replacement part,with all the 4 installation shoulder and bushing . You can the broken screw still inbedded in the arm. Many thanks
RIght side bronze

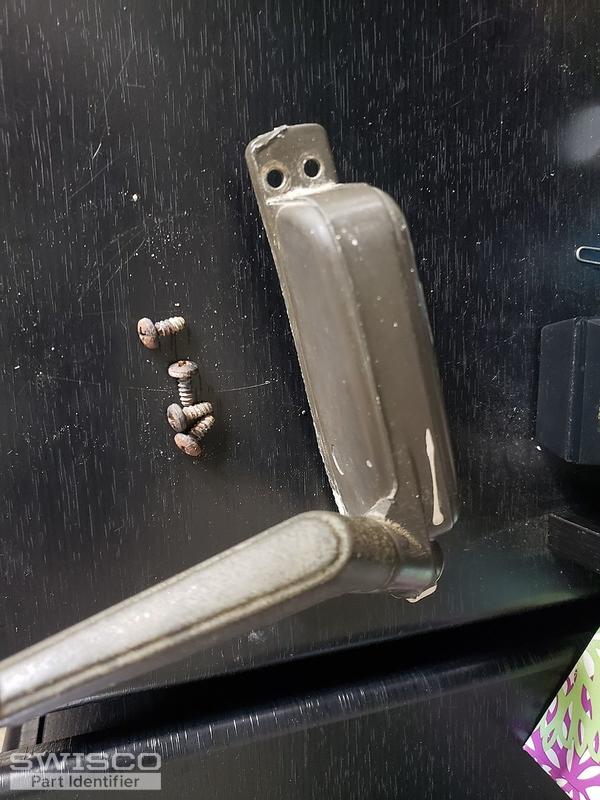

Thumbnail of the uploaded file named 15905935241251319800934887705829.jpg

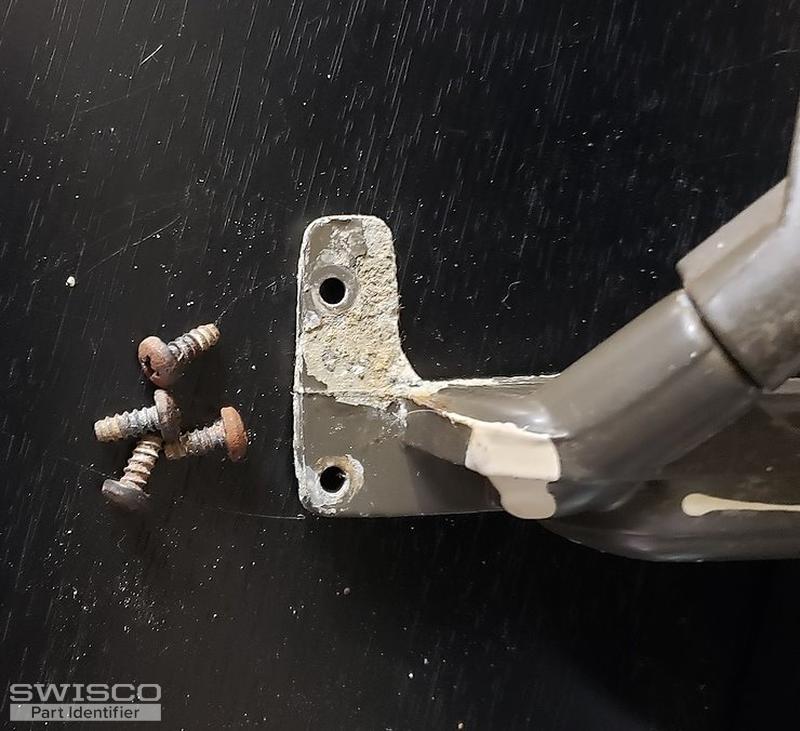

Thumbnail of the uploaded file named 15905936337028752758356155026710.jpg

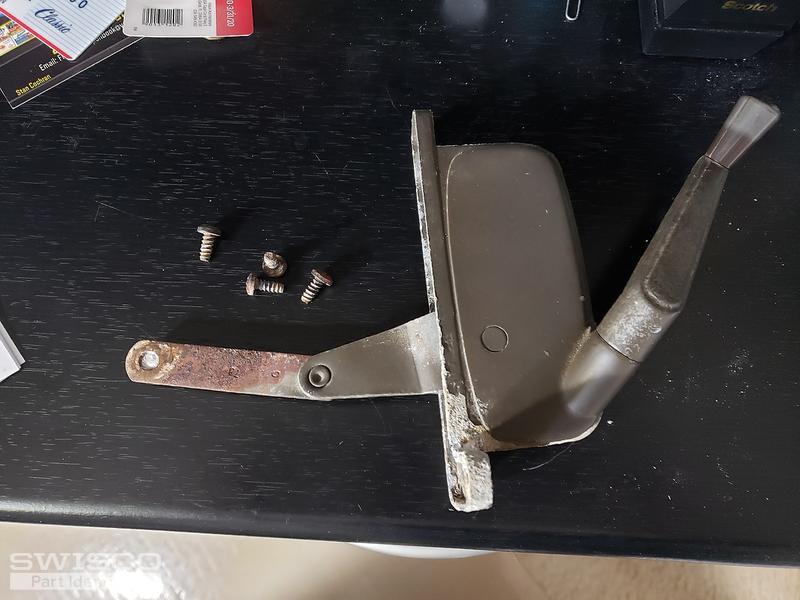

Thumbnail of the uploaded file named 15905936963802386883962116359280.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for these photos. Based on these pictures I feel pretty confident the 39-017 is what you want. Just go over all the dimensions to absolutely confirm this.
