Reynolds Window Parts

A handy person from Pa says:
July 7, 2021
I need both shoes, coils, and triple supports for a bottom sash. The removed coils are marked 5,6,6 that should I believe equate to a the weight value of a 34lb sash, but I put the sash on the bathroom scale and it reads 40lbs. I presently have items sitting in the cart, but would appreciate verification of which parts to order prior to placing the order. I'm going to try a follow-up phone call to hopefully answer any questions you may have in assisting me with the order placement. Thank you in advance for any help, Bob

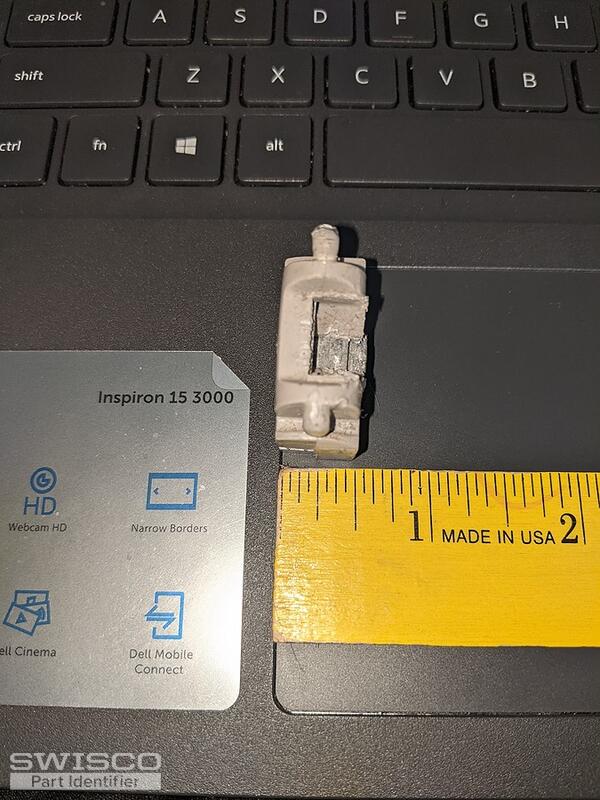

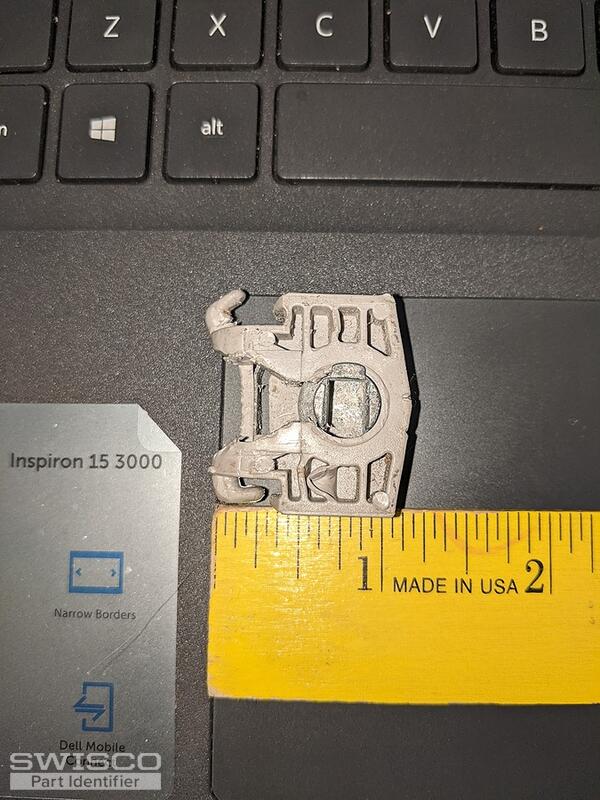

Thumbnail of the uploaded file named PXL_20210707_134029652.jpg
Thumbnail of the uploaded file named PXL_20210707_134055900.jpg
Thumbnail of the uploaded file named PXL_20210707_134122612.jpg
Profile picture of Paul
Paul from SWISCO responded:
July 12, 2021

Hello,

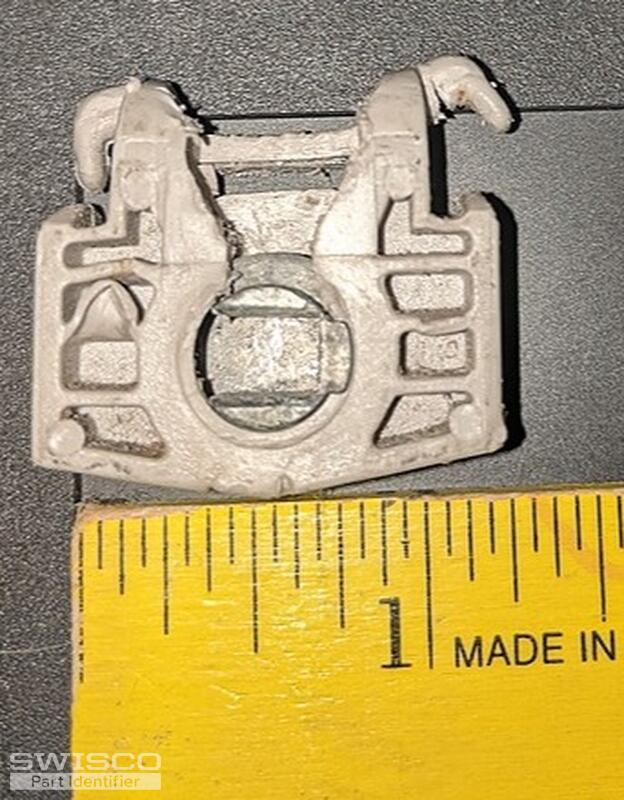

We believe you have a similar style pivot shoe to our 15-191, which usually works with the Series 160 coil spring. Your spring looks different, though. Instead of installing in the shoe with tabs, it hooks in that little prong there. I think you could still use our 15-191 and Series 160 though, you would just have to replace the balances on both sides.

If your sash weighs exactly 40 pounds, you can use two of the S160-10 coils on each side of the window. Thank you!
Heavy Duty Pivot Shoe, 1/2" Thick
Heavy Duty Pivot Shoe, 1/2" Thick
15-191
$2.57
6.5 lbs Series 160 Coil Balance
6.5 lbs Series 160 Coil Balance
S160-06
$4.85
5.5 lbs Series 160 Coil Balance
5.5 lbs Series 160 Coil Balance
S160-05
$4.63
10 lbs Series 160 Coil Balance
10 lbs Series 160 Coil Balance
S160-10
$6.34
