patio door handle & lock

Contractor from San Diego, CA
Jan 10, 2012 12:05 pm
I need to replace my patio door handle and lock mechanism. I submitted pictures as well with measurements

4 Replies

Tom from SWISCO
Jan 12, 2012 8:28 am


Thank you for posting.
Can you please give us the distance between the outer-most screw holes and the inner-most screw holes?
Can you please give us the distance between the outer-most screw holes and the inner-most screw holes?

Quick Learner
Jan 12, 2012 11:38 am

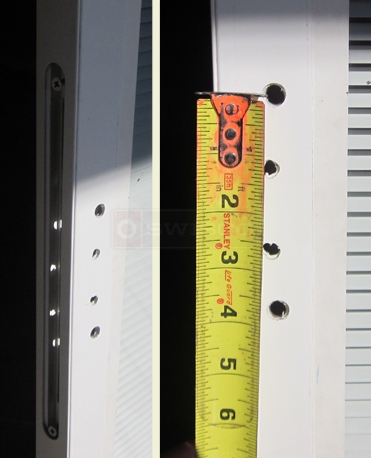

the two outside holes measure 3 3/4 inches center
the two middle holes measure 1 1/2 inches center
the lock mechanism measure 11 inches long with a double hook latch
hope this helps
the two middle holes measure 1 1/2 inches center
the lock mechanism measure 11 inches long with a double hook latch
hope this helps

Tom from SWISCO
Jan 17, 2012 10:39 am


Thank you so much for your cooperation. We have things narrowed down, but we just need a little bit more information.

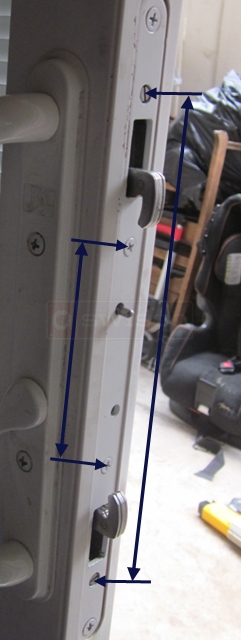

Can you please tell us the alternate screw hole measurements for your lock? Please refer to the image below for an example of what I need.
Can you please tell us the alternate screw hole measurements for your lock? Please refer to the image below for an example of what I need.
