patio door handle replacement

Question

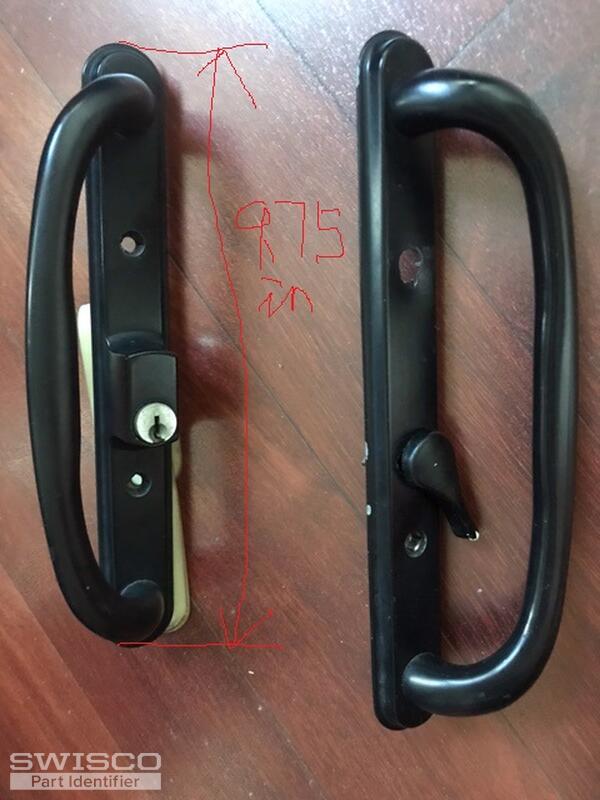

I am looking for replacement for broken handle of patio sliding glass door. Please find attached picture. It looks similar as product 82-086 and 82-089, however the measure from top to bottom is 9.75 inch, the measure for both 82-086 and 82-089 are 8.5 inch. Can you let me know are there any product can replace current handle? what's difference btw 82-086 and 82-089?
Thanks,

Helen

Casey · Accepted Answer

Hello,

The 82-086 should work for you since the overall height doesn't matter as much as hole center spacing. If the original hole centers are 3-15/16" apart, then it will work. The outline of the old handle base may be visible but we have nothing with the same overall length as your original assembly.

The difference between these two handle sets is that the 82-086 has an external key lock, while the 82-089 is non-keyed. Thank you!
