patio door replacement rollers

A home owner from 22303 says:
July 4, 2021

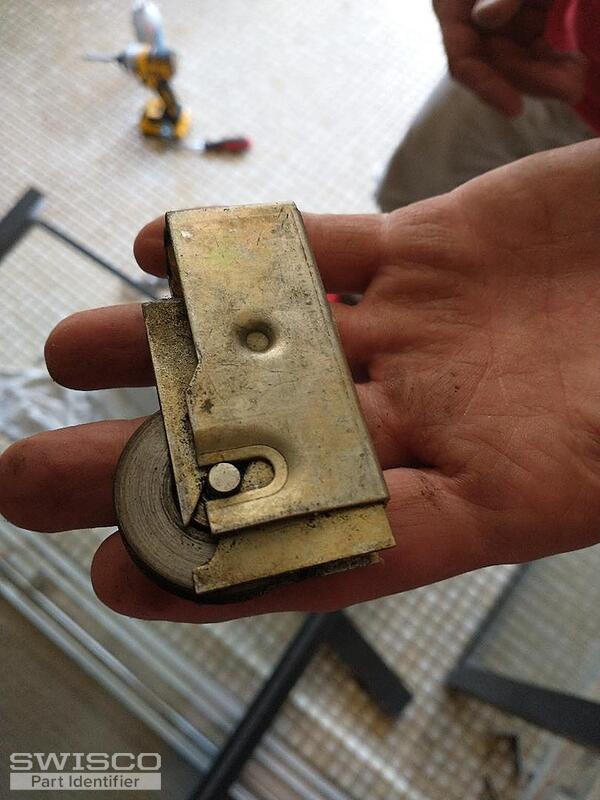

I would like to replace my patio door rollers, they are at least 20 years old at barely work; the only marking on them is "Production Enterprises Hialeah, FLA"; your site had so many options, I wasn't sure which were the correct ones; let me know if you need more information
Thumbnail of the uploaded file named 0a5df8a8-93e8-4f06-beb4-8e30a841f0b6_cdv_photo_002
Thumbnail of the uploaded file named 14b8dec7-8075-4ddf-9bf8-7b44798127c9_cdv_photo_004
Thumbnail of the uploaded file named ae36dc5a-42b9-4098-8780-67dd063d85f2_cdv_photo_001
Thumbnail of the uploaded file named eca85818-3fcb-4e32-a883-bda4d110f97f_cdv_photo_005
Profile picture of Bob
Bob from SWISCO responded:
July 8, 2021

Thanks for your photos. Start by viewing our 81-023 and 81-277. Please compare our measurements to yours and let us know if either of them will work.
A home owner from 22303 says:
July 28, 2021

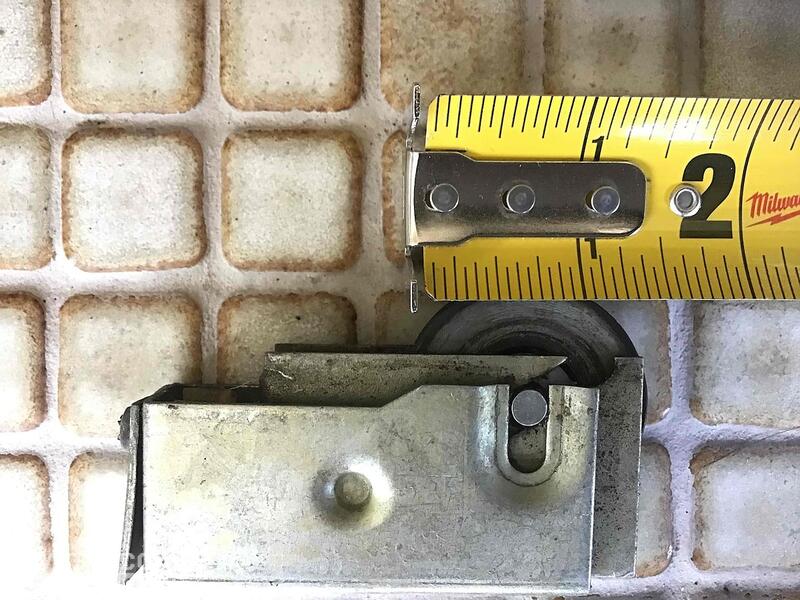

my door was made by Howard Industries who closed in 1995; there are no markings aside from "Production Enterprises Hialeah FLA" I'd written you earlier and you suggested 81-023 or 81-277 based on the dimensions (1 1/4" metal wheel; 11/16" wide, about 2 5/8" long and 1 1/8" high--on the short side); I found another picture of my roller and it looks more like 81-004; could it be a 81-004?
Thumbnail of the uploaded file named my patio door.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 4, 2021

I agree, the 81-004 looks a lot more like yours. The only thing I'm worried about is width; ours is 3/4", not 11/16". As long as that works though then you should be fine using this part.
Sliding Door Roller, 1-1/4"dia. Steel Concave BB
Sliding Door Roller, 1-1/4"dia. Steel Concave BB
81-023
$10.20
Patio Glass Door Roller, 1-1/2" Dia.
Patio Glass Door Roller, 1-1/2" Dia.
81-277
$9.87
Phillips Flat 10-32 x 1/2" SS Machine Screw
Phillips Flat 10-32 x 1/2" SS Machine Screw
33-103
$0.29
Phillips 1/4-20 x 3/4" SS Machine Screw
Phillips 1/4-20 x 3/4" SS Machine Screw
33-104
$0.39
Patio Door Roller, 1-1/2" Steel Ball Bearing
Patio Door Roller, 1-1/2" Steel Ball Bearing
81-004
$7.95
