patio slider lock assemly

Contractor from sicklerville,nj

Jan 19, 2017 4:06 pm

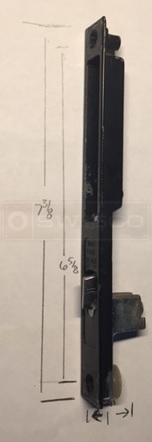

looking for this part, went to big box store but locks they carry are not 1" like the picture. Can you help me. Thanks Ralph

5 Replies

Contractor from sicklerville,nj

Jan 23, 2017 2:47 pm

need help finding this lock assembly

Dave Sr. from SWISCO

Jan 23, 2017 3:03 pm

Take a look at our 82-002 handle. This appears to match the one you show in your photo. That said, when you say you need 1", are you referring to the width of the handle? If so the 82-002 face is 1" wide. Take a look and see what you think.

Contractor from sicklerville,nj

Jan 23, 2017 4:29 pm

The 1" is the depth of the lock,the hook for the lock goes on the end of the gray nub,dont know name of this piece,that slides up or down when locking the door.Hopefully this is helpful ?

Dave Sr. from SWISCO

Feb 2, 2017 11:35 am

I went in the back and manually measured the 82-002 lock. The part you're speaking of that you mentioned was 1" deep is closer to 15/16" on the 82-002. The measurement you should be most concerned about is the sliding door panel thickness. The 82-002 is made for sliding doors that are 1" thick.
