patio sliding door lock

Quick Learner from California

Oct 12, 2020 9:53 pm

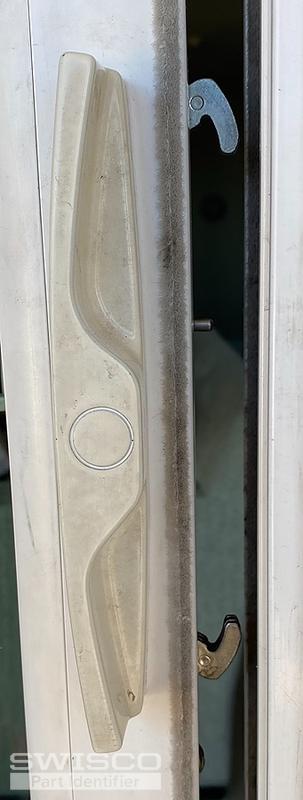

My sliding door patio lock needs to be replaced. The locking mechanism is not opening or closing properly. The latch doesn't properly open or close the lock. The Door lock is 9.25" long. Can you please advise what latch/lock I would need to replace it with? Thanks!

3 user uploaded images

6 Replies

Bob from SWISCO

Oct 15, 2020 8:24 am

Start by looking at our 82-239. Look over the dimensions and see if you think this would work as a replacement.

Quick Learner from California

Nov 16, 2020 3:01 pm

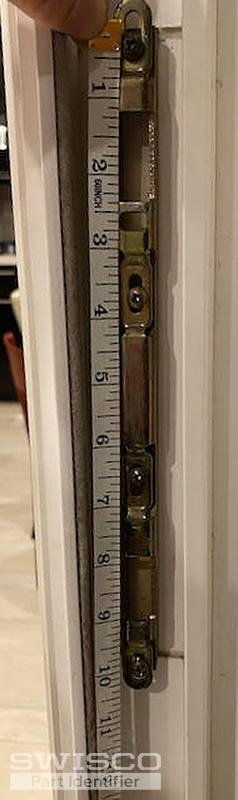

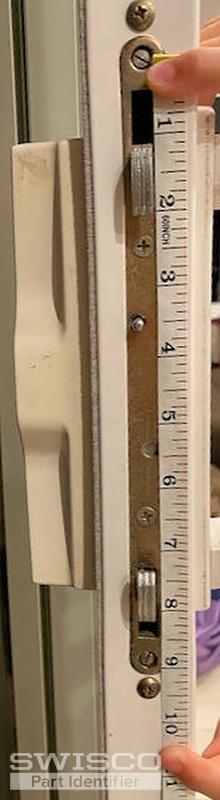

Hi. Thanks for the suggestion, however the dimensions are different when measuring. I have taken a picture with a measurement tape. Please advise if there is a better fit. Thank you.

2 user uploaded images

Bob from SWISCO

Nov 16, 2020 3:43 pm

The 82-239 is still the closest match I am afraid. Is the mounting hole spacing (9-7/8") and depth of the lock the same? If so, it might still work if you replace it along with the keeper, but I can't say for certain. You can always try it, and in the event it doesn't work, use our Return Policy here.

Quick Learner from California

Nov 28, 2020 2:44 pm

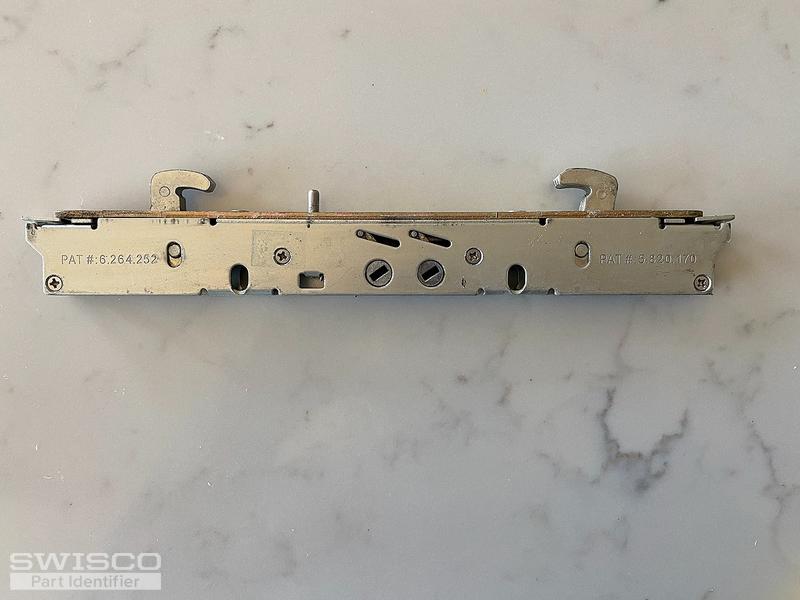

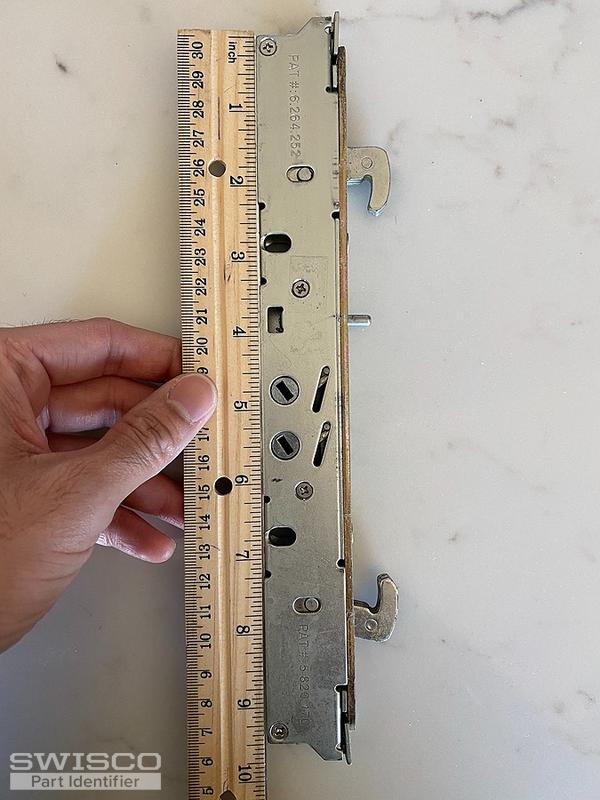

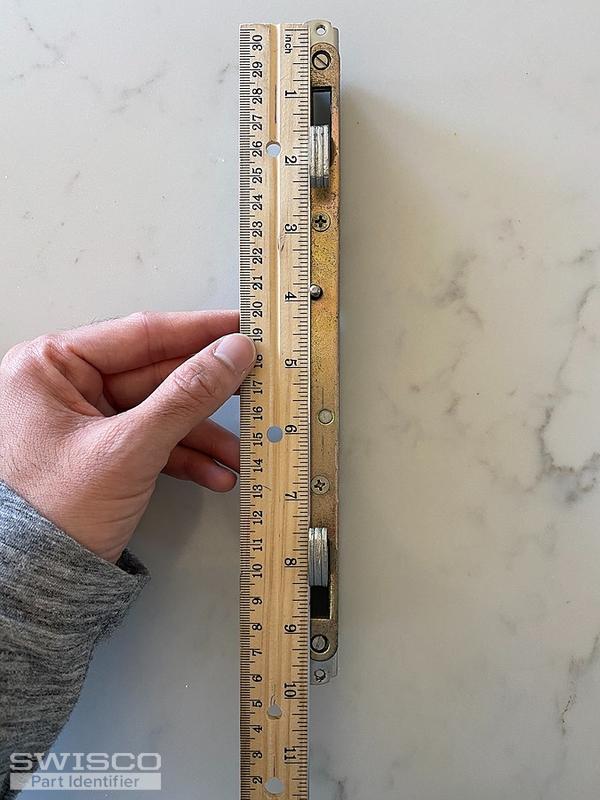

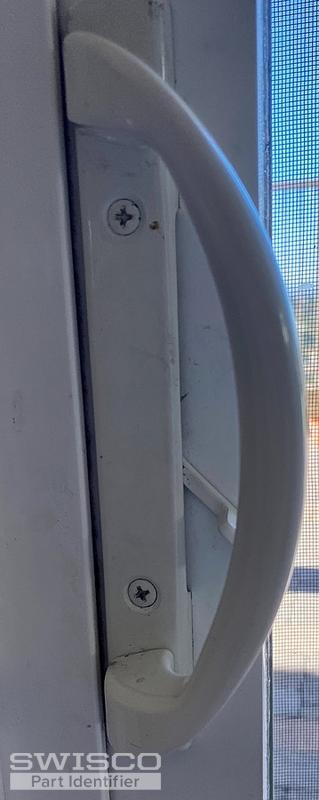

Hi, I was able to uninstall the lock and make more accurate measurements. Please see attached photos. Sounds like the one you've suggested is a close match. Would I need any additional hardware? Will my existing handle still work? Thanks.

5 user uploaded images

Bob from SWISCO

Nov 30, 2020 10:00 am

If your existing handle set and its thumb lever are undamaged, they should work fine with the 82-239. If you did need a new handle set, see our 82-030.
