pivot 2 7/8" needed

Start a new Discussion

Quick Learner from USA

Dec 29, 2015 3:53 pm

Looking for a pivot 2 7/8 long. With first hole set back of 1 7/16.

4 Replies

Tom from SWISCO

Dec 30, 2015 11:31 am

Thanks for posting. Just to clarify, is this a pivot bar? Can you shoe me a picture of the part in question removed from the window? Your measurements are a big help, but pictures will help us identify the proper style.

Quick Learner from Mechanicsville va

Jan 2, 2016 12:17 pm

It looks identical to your #26-422 but the holes are at different measurement but everything else is same

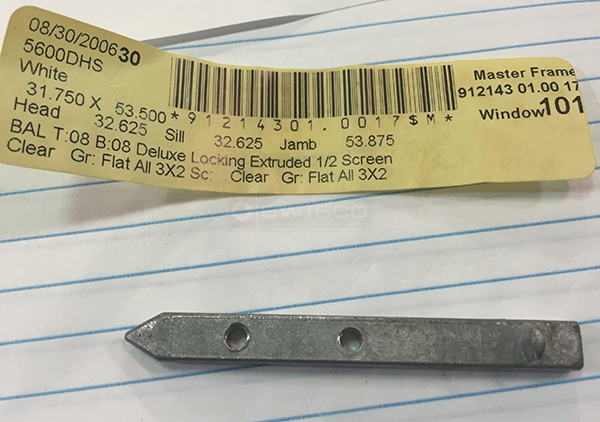

User submitted a photo of window hardware.

Tom from SWISCO

Jan 6, 2016 11:54 am

Thank you! That is a huge help. I'm afraid we haven't been able to find a matching pivot bar with that same hole spacing. Which hole specifically is used? Based on the wear I see, it looks like perhaps both are used. If the second hole has the same spacing as our 26-422, I wonder if you could get away with only using that. See what you think.
