pivot bar

Quick Learner from cherry hill

Sep 19, 2024 11:22 am

Hello,

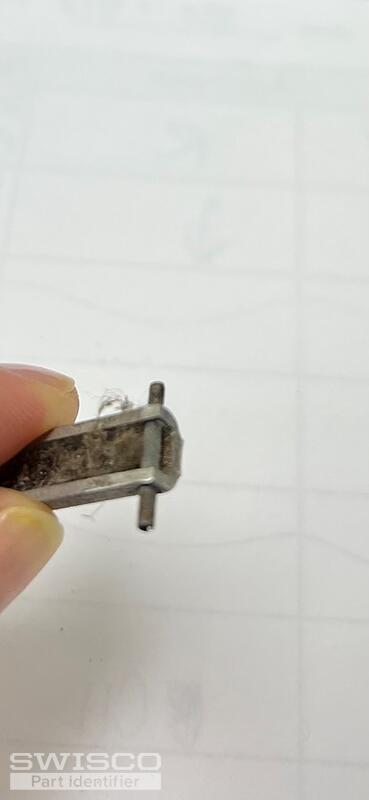

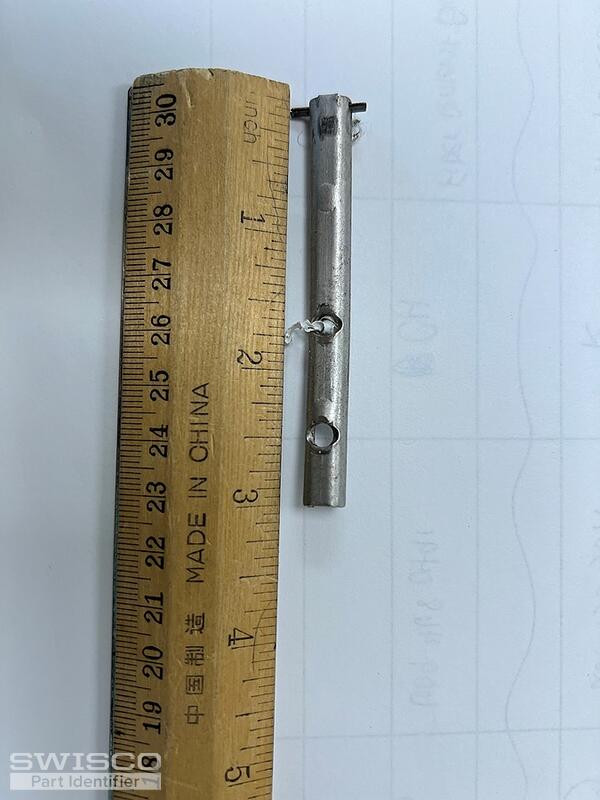

I'm having a hard time finding a replacement for this bar. The little piece at the end is attached but does spin.

Thank you

5 user uploaded images

4 Replies

Jasmine from SWISCO

Sep 24, 2024 2:42 pm

Hey there,

Thanks for contacting us! We do not have an exact replacement match for your pivot bar but I'm happy to take a look and see if there's an alternative we might be able to recommend.

May I please see a photo of the pivot shoe this pivot bar interacts with?

Please don't hesitate to reach out with any questions you might have.

Quick Learner from cherry hill

Sep 30, 2024 12:36 pm

Hello,

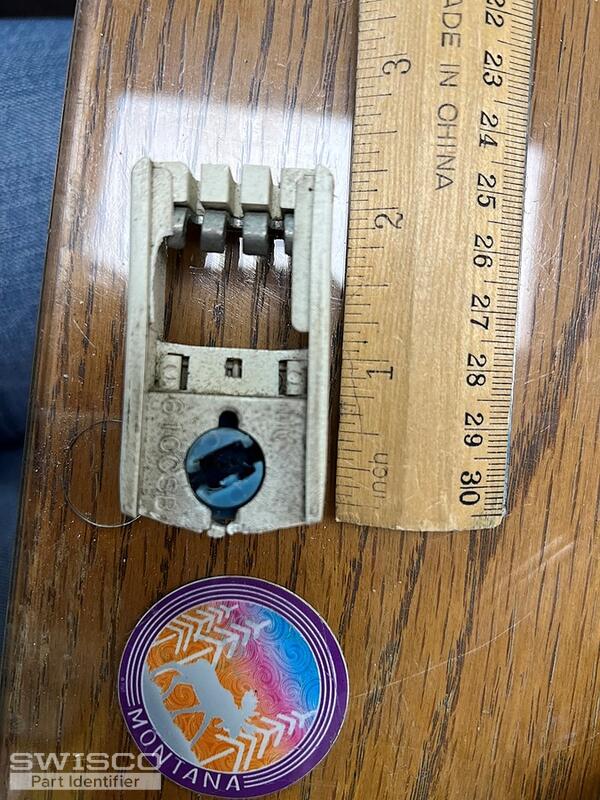

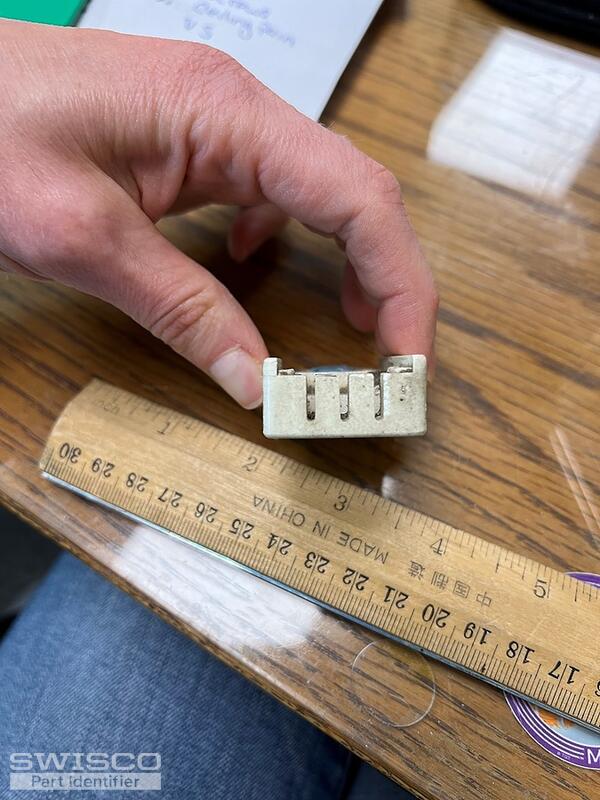

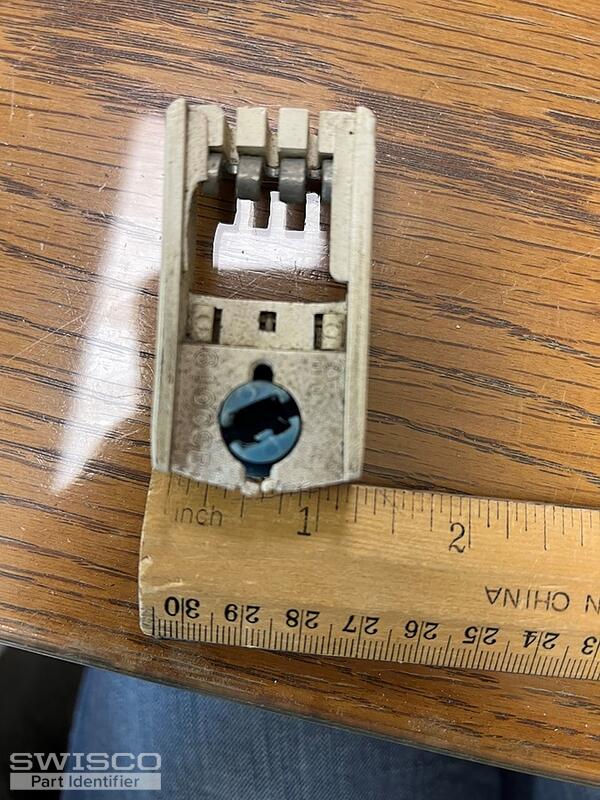

Here is the shoe. It is an olde style. I'm having a hard time with this one as well. Thank you,

3 user uploaded images

Jasmine from SWISCO

Sep 30, 2024 1:32 pm

Thanks for the additional photos, they are a great help! It looks like both the pivot bar and the pivot shoe you have are older, discontinued window hardware. There is a good chance we can provide you with a replacement recommendation but I'll need to confirm a bit more information.

To start, what type of balance system does this shoe interact with? I suspect it may be a coil balance, however, I don't want to make any assumptions.

Also, you'll need to confirm the measurements from the pivot shoe. I'll need to know the width, thickness, and height; please write these out as it is hard to read accurate measurements from photos of measuring tapes/rulers.

Feel free to reach out with any questions you might have in the meantime.
