pivot bar

Start a new Discussion

Quick Learner

Jul 9, 2025 10:08 am

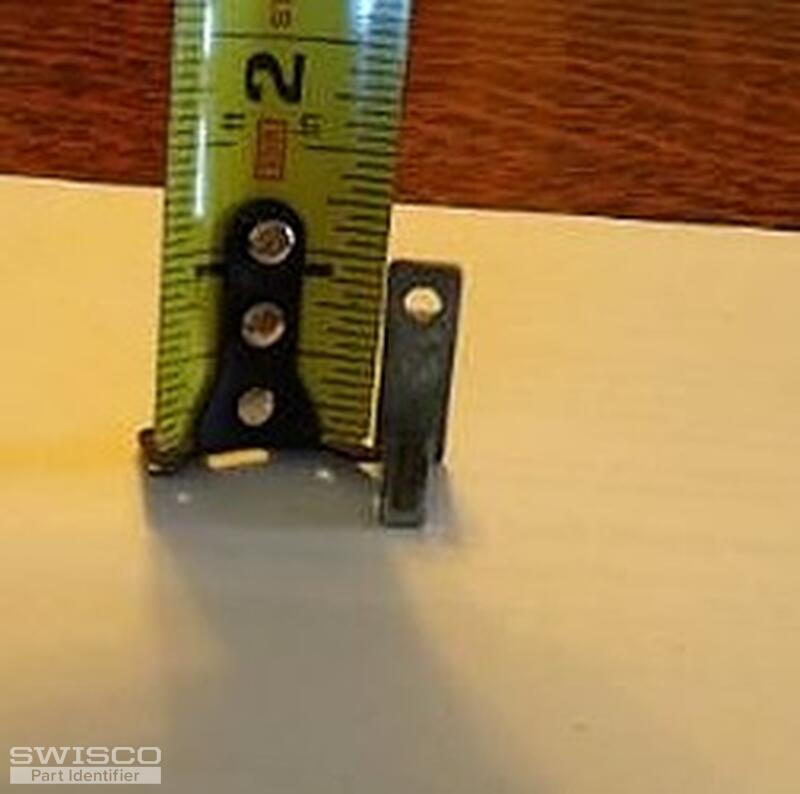

The center line is 7/8". The part that slides into the ballast end is 5/8".

4 user uploaded images

3 Replies

Emily from SWISCO

Jul 14, 2025 8:48 am

Thank you for reaching out to us. I'm afraid we don't sell this pivot bar. Please allow me to consult one of our senior experts, and we'll reach back out as soon as we have more information.

Paul from SWISCO

Jul 14, 2025 11:55 am

Your pivot shoe looks like our 15-211 that accepts a 1/4" wide by 3/16" high pivot bar. Our 26-326 pivot bar is the closest to your original; just check the dimensions of the bar that goes in the pivot shoe to make sure it aligns with ours.

Alternate image for 26-326
