pivot bar and pivot shoe

A landlord from bluffton, sc says:

im replacing parts on a 20 yr old window. pivot bar is: L shaped 3/16 thick, 15/16 long leg 10/16 short leg. long leg has a round piece that sticks out, 3 to 4 16ths.

Also pivot shoe: 3/8 wide 2 1/16 long rotating bushing with rectangular cutout is 3/16 by 5/16. Has 2 teeth at top opposite side of rotating bushing. I could not get my pics to upload. will try again later

Thumbnail of the uploaded file named IMG_20201223_195039723.jpg
Thumbnail of the uploaded file named IMG_20201223_195008570.jpg
Thumbnail of the uploaded file named IMG_20201223_195120272.jpg

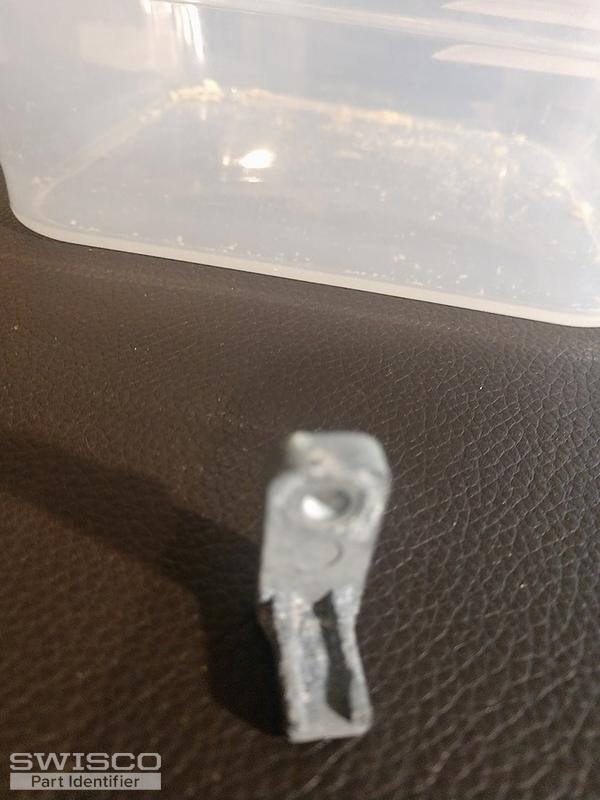

Thumbnail of the uploaded file named IMG_20201223_195204399.jpg

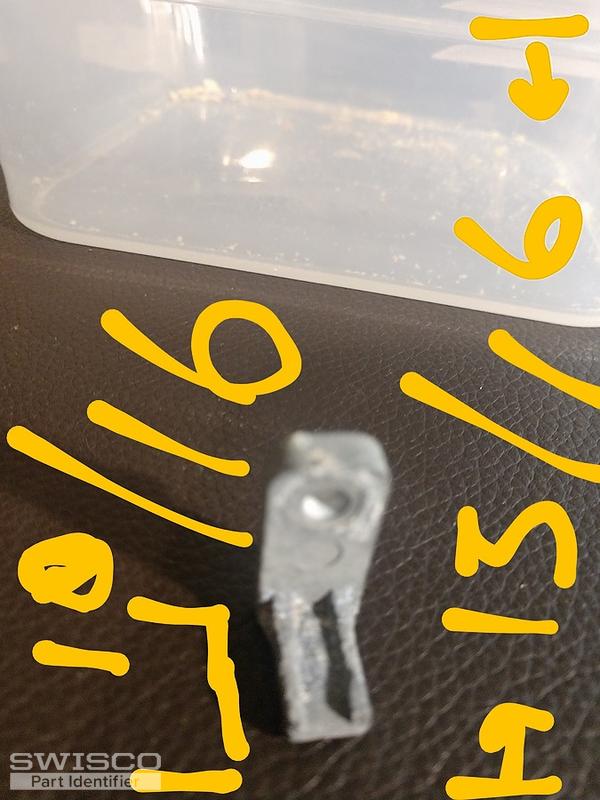

Thumbnail of the uploaded file named IMG_20201223_195204399~2.jpg
A landlord from bluffton, sc says:
so the plastic shoe has a metal piece attached at the very top. I don't know if it is part of the pivot shoe. this is follow up and more details for reference number D199245

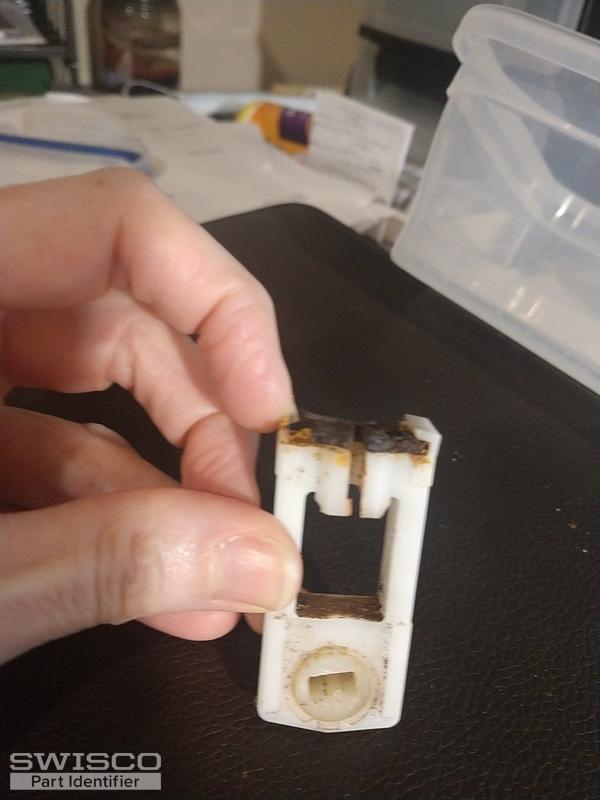

Thumbnail of the uploaded file named IMG_20201223_202318087.jpg

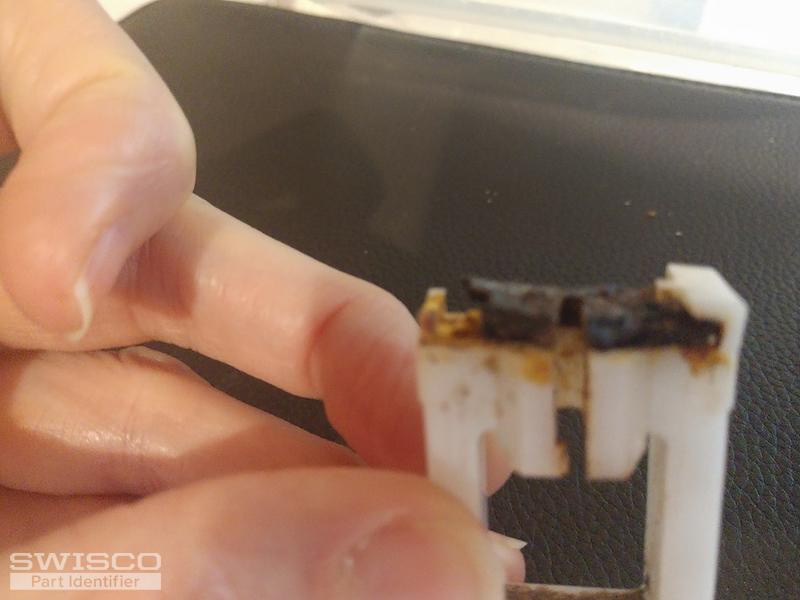

Thumbnail of the uploaded file named IMG_20201223_202328589.jpg
Profile picture of Tom
Tom from SWISCO responded:

Your pivot bar looks like it'd be a good match for our 26-361. Check it out and let me know if you agree. As for the pivot shoe, consider our 15-134.
