pivot bars

Tom
Tom from SWISCO
Oct 28, 2010 7:42 am
SWISCO
EXPERT
We would be happy to research this for you, please post some photos of your pivot bar with measurements for us to look at.
3 Replies
Landlord from yonkers new york
Oct 28, 2010 9:09 am
looked through the online selection and cant find the zinc pivot bars i need for my vynil double hung tilt windows. thetre is no brand name but they are abotu 2.5 inches long and have two holes about a half an inch apart. the bar is tapered on one end like a copllar tab and the tapered end is connected to a half inch tab that has a thick side and a thin side. they are left and right handed and the only markings are the the numbers "1268" cast into the top of the bar in a rectangular frame. i already ordered parts no. 26-116 window sash lift handle and 26-344 top tilt latches which looked like exact matches for the existing hardware. maybe that will help identify the pivot bars by identifying the windows that used the same handles and tilt latches. thanks alot.
Landlord from Yonkers, New York
Nov 2, 2010 10:14 am
I am annexing two photos (front and back) and the dimensions are as follows about 2.5 inches long and have two holes about a half an inch apart. the bar is tapered on one end like a collar tab and the tapered end is connected to a half inch tab that has a thick side and a thin side. they are left and right handed and the only markings are the numbers "1268" cast into the top of the bar in a rectangular frame. i already ordered parts no. 26-116 window sash lift handle and 26-344 top tilt latches which looked like exact matches for the existing hardware. maybe that will help identify the pivot bars by identifying the windows that used the same handles and tilt latches. thanks alot. Please see annexed photos of zinc pivot bar for tilt window. I appreciate your help.

Mark

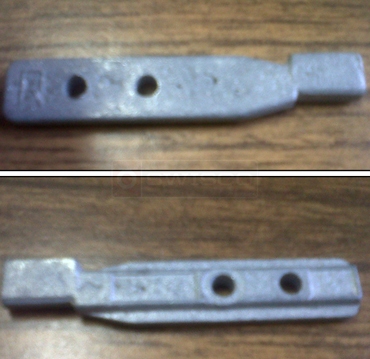

User photo of their zinc pivot bar.
Tom
Tom from SWISCO
Nov 5, 2010 11:44 am
SWISCO
EXPERT
Please take a look at the Swisco 26-332 Pivot Bar Set.
