pivot shoe

A quick learner from NY says:
looking to purchase replacement pivot shoes want to make sure I order correct one. I was thinking 15-047 or 15-070

thanks for you help

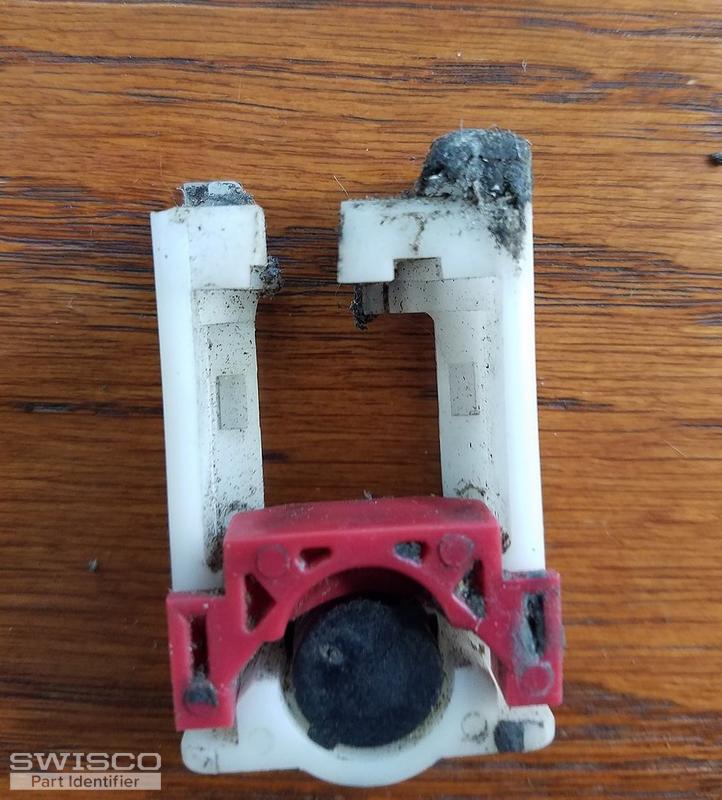

Thumbnail of the uploaded file named 20190715_110354.jpg

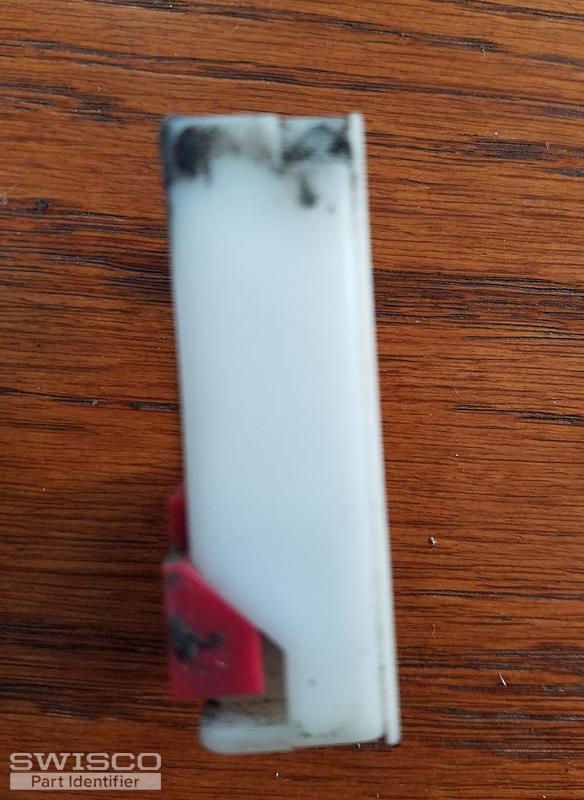

Thumbnail of the uploaded file named 20190715_110349.jpg

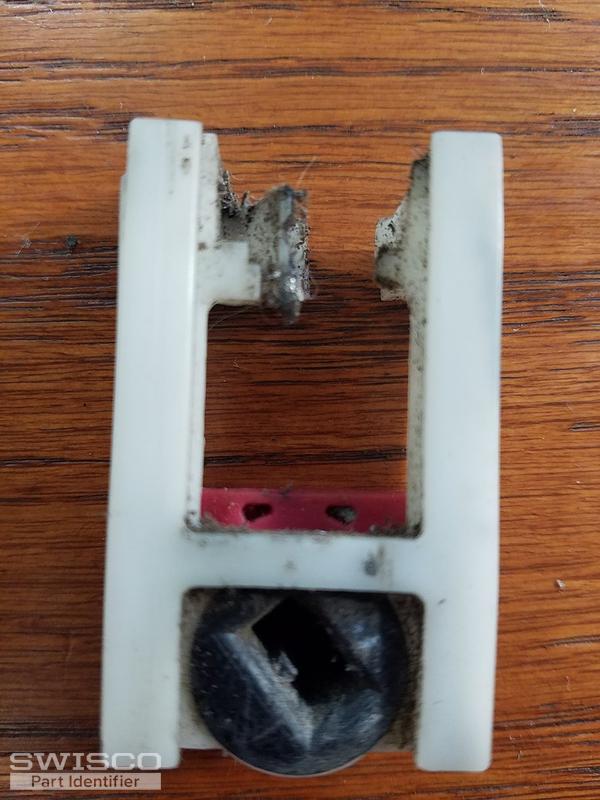

Thumbnail of the uploaded file named 20190715_110343.jpg
A quick learner from 11001 says:
Any info on which pivot shoe I should order
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. I definitely don't think this is the 15-070, as that pivot shoe's cam protrudes in a way yours does not. I can't guess what the right alternative is without knowing the width and thickness of the pivot shoe. With those dimensions, we may be able to find the right replacement. Many thanks.

A quick learner from NY says:
I measure 2 1/16 X 1 1/4 x 5/8
Profile picture of Bob
Bob from SWISCO responded:

Thanks for getting back to us. If the shoe is 5/8" thick, then go with the 15-047. Now to be honest, your pivot shoe looks like our 9/16" thick, our 15-121, so just double-check the thickness to see which matches closest.

A quick learner from NY says:
I just added a new photo and measured it again I still get 5/5

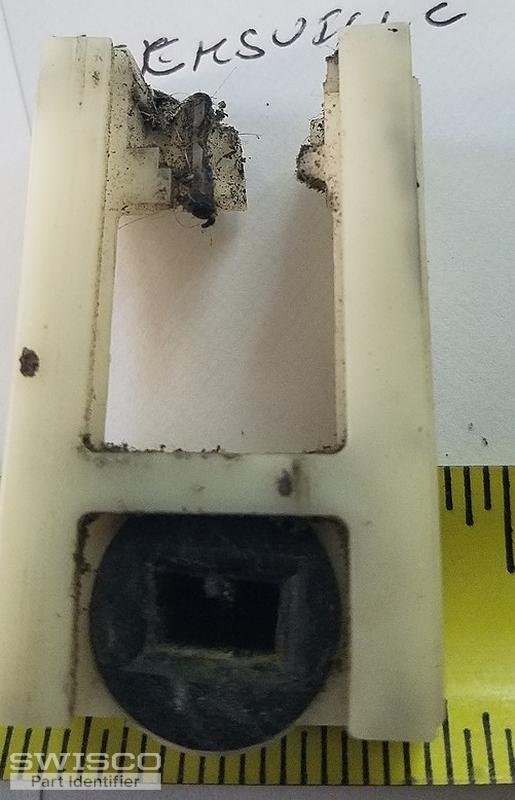

Thumbnail of the uploaded file named 20190722_132706.jpg

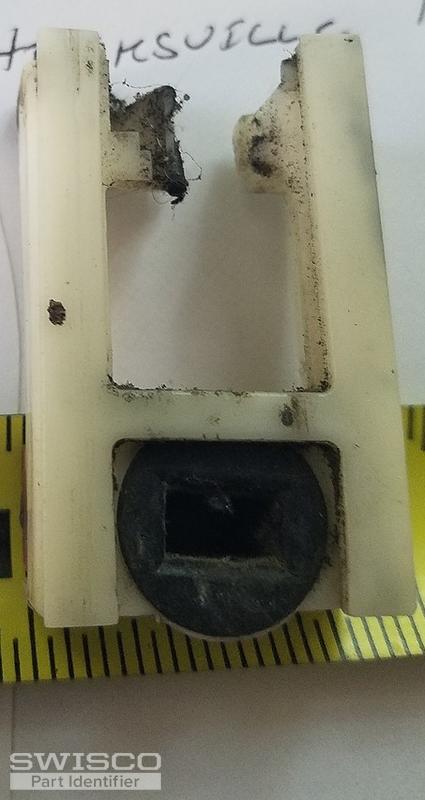

Thumbnail of the uploaded file named 20190722_132702.jpg

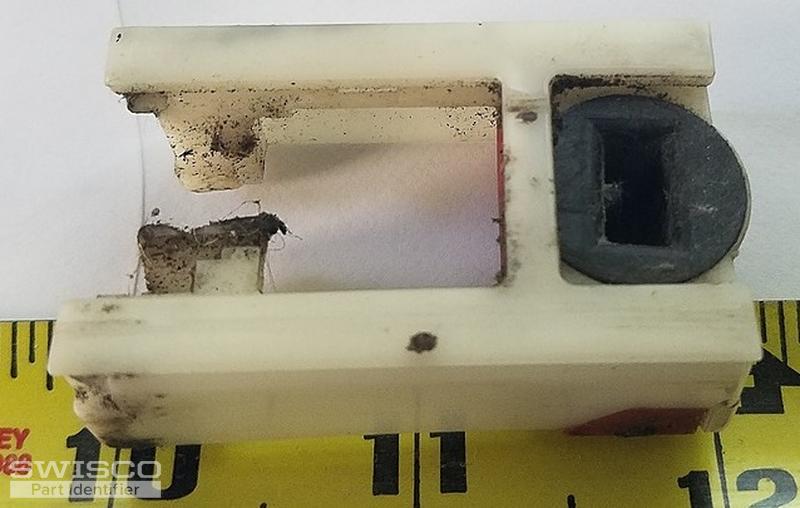

Thumbnail of the uploaded file named 20190722_132632.jpg

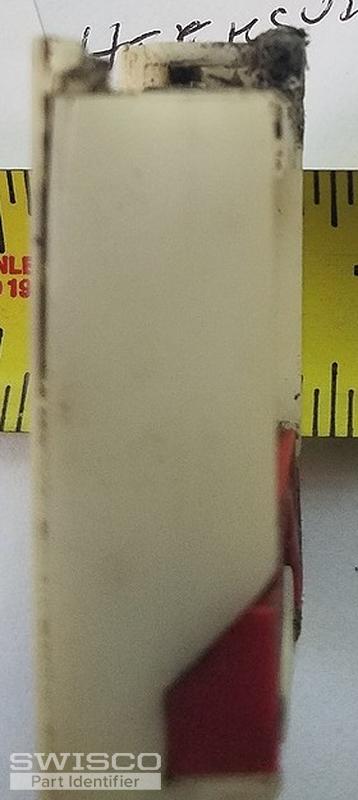

Thumbnail of the uploaded file named 20190722_132320.jpg

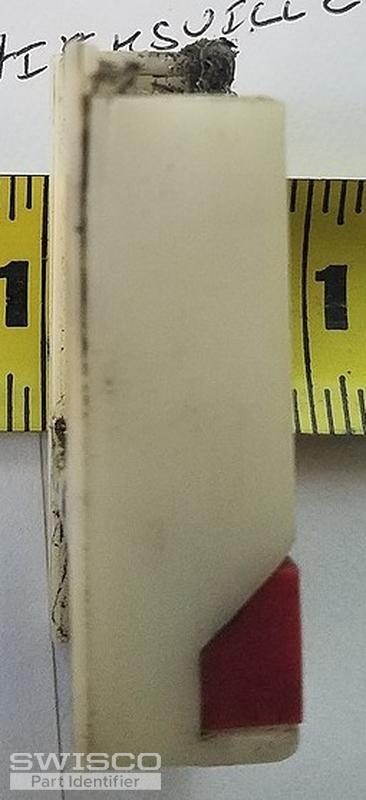

Thumbnail of the uploaded file named 20190722_132314.jpg
Profile picture of Bob
Bob from SWISCO responded:

If you are certain the thickness is 5/8", then as Paul said, the 15-047 is the better match. Let us know what you think.
