pivot shoe

Start a new Discussion

Friend from virginia

Sep 10, 2024 1:44 am

pivot shoe for simonton double hung tilt window. i dont have a picture of this in the window but can get one if needed.

3 user uploaded images

7 Replies

Friend from virginia

Sep 11, 2024 4:22 pm

I am going to need the pivot rods as well if someone knows what part number I need to order. I need 6 of each. It is for my mothers home and my son is going to install if I can figure out what parts for these windows. Thanks!

Casey from SWISCO

Sep 12, 2024 4:07 pm

Hello,

Take a look at our conversion video shown below that works for Simonton windows that use this type of coil balance assembly. Take a look at the related parts and let us know if you have any other questions. Thanks for posting!

Friend from virginia

Sep 20, 2024 1:36 pm

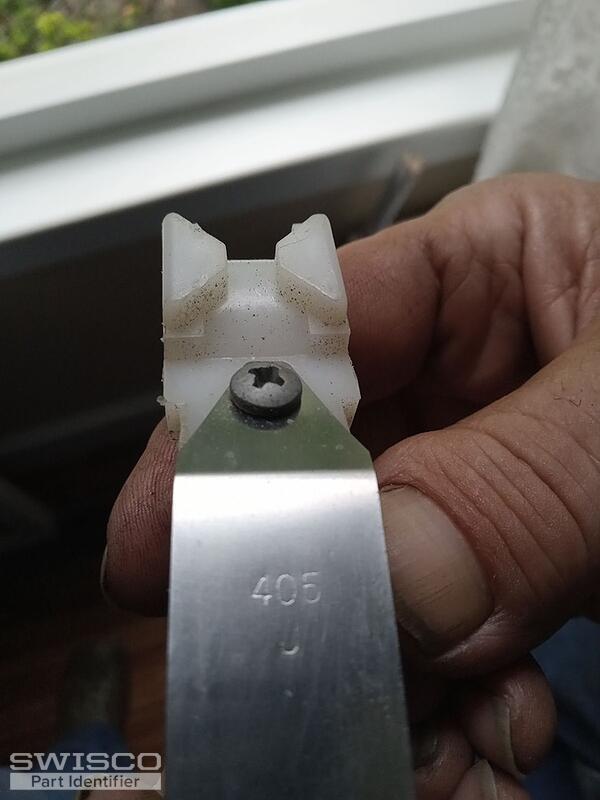

I didnt order the coil balance itself but need to. The stamp doesnt have a weight so unsure what I need to order. Photo included. Thanks

1 user uploaded image

Casey from SWISCO

Sep 20, 2024 2:02 pm

The strength options needed for the S152 coil springs would depend on the weight of the window sash that the balances support. If you could get back to us with your sash weight, we'd be happy to confirm the correct replacements.

Friend from virginia

Sep 20, 2024 5:50 pm

I need for 10lb and 16lb

Casey from SWISCO

Sep 23, 2024 8:10 am

Great, you'll need one S152-5 coil on each side to support a 10-pound sash and one S152-8 coil on each side for a 16-pound sash.
